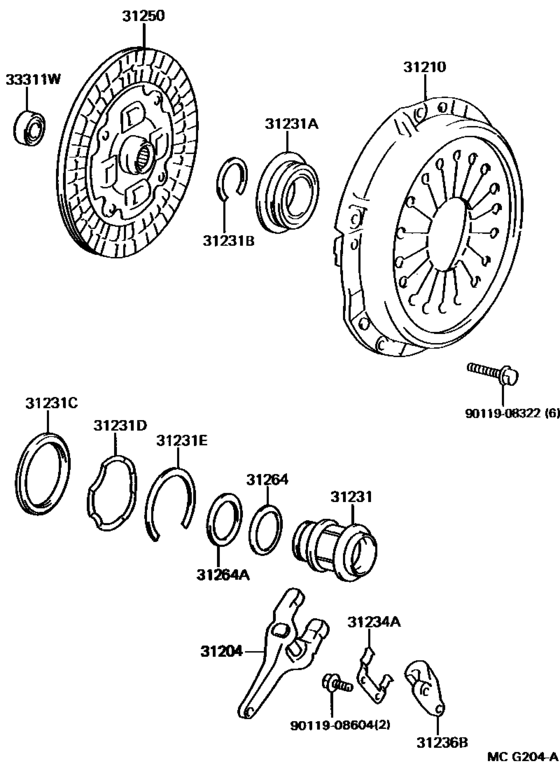

Clutch & Release Fork ([08.1988 - ] R154 (8808- )5F..TWT) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGTE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31204
|
31204
31204-14031 Fork Sub-Assy, Clutch Release[08.1988 - 05.1993] MA70..5F..TWT |
31204-14031 |
US $47.21 |
||
|
31210
|
31210
31210-14150 Cover Assy, Clutch[08.1988 - 05.1993] MA70..5F..TWT |
31210-14150 |
US $270.40 |
||
|
31231
|
31231
31231-14040 Hub, Clutch Release Bearing[08.1988 - 05.1993] MA70..5F..TWT |
31231-14040 |
from US $63.50 |
||
|
31231A
|
31231A
90363-45012 Bearing, Ball(For Clutch Release Hub)[08.1988 - 05.1993] MA70..5F..TWT |
90363-45012 |
from US $33.09 |
||
|
31231B
|
31231B
96152-00450 Ring, Snap(For Clutch Release Hub)[08.1988 - 05.1993] MA70..5F..TWT |
96152-00450 |
US $3.58 |
||
|
31231C
|
31231C
90201-71001 Washer, Plate(For Clutch Release Bearing)[08.1988 - 05.1993] MA70..5F..TWT |
90201-71001 |
US $3.58 |
||
|
31231D
|
31231D
90206-72001 Washer, Wave(For Clutch Release Bearing)[08.1988 - 05.1993] MA70..5F..TWT |
90206-72001 |
US $5.56 |
||
|
31231E
|
31231E
90520-67001 Ring, Shaft Snap(For Clutch Release Bearing)[08.1988 - 05.1993] MA70..5F..TWT |
90520-67001 |
US $4.30 |
||
|
31234A
|
31234A
31234-14030 Spring, Release Fork Support[08.1988 - 05.1993] MA70..5F..TWT |
31234-14030 |
US $3.58 |
||
|
31236B
|
31236B
31236-14020 Support, Release Fork[08.1988 - 05.1993] MA70..5F..TWT |
31236-14020 |
US $31.25 |
||
|
31250
|
31250
31250-14181
Disc Assy, Clutch
[08.1988 - 08.1990] MA70..5F..TWT |
31250-14181 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-14186 Disc Assy, Clutch[08.1988 - 08.1990] MA70..5F..TWT |
31250-14186 |
US $155.50 |
||
|
31250
|
31250
31250-14182
Disc Assy, Clutch
[08.1990 - 09.1990] MA70..5F..TWT |
31250-14182 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-14186 Disc Assy, Clutch[08.1990 - 09.1990] MA70..5F..TWT |
31250-14186 |
US $155.50 |
||
|
31250
|
31250
31250-14183
Disc Assy, Clutch
[09.1990 - 05.1993] MA70..5F..TWT |
31250-14183 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-14186 Disc Assy, Clutch[09.1990 - 05.1993] MA70..5F..TWT |
31250-14186 |
US $155.50 |
||
|
31264
|
31264
31264-14040 Spring, Clutch Thrust Cone[08.1988 - 05.1993] MA70..5F..TWT |
31264-14040 |
US $10.93 |
||
|
31264A
|
31264A
90201-45023 Washer, Plate(For Clutch Thrust Cone Spring)[08.1988 - 05.1993] MA70..5F..TWT |
90201-45023 |
US $4.66 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1988 - 05.1993] MA70..5F |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1988 - 05.1993] MA70..5F |
90363-12024 |
from US $5.67 |
||
|
9011908322
|
9011908322
90119-08322
Bolt, W/washer(For Transmission Case Cover)
|
90119-08322 |
— | ||
| replacement | |||||
|
9011908322
|
9011908322
90119-08782 Bolt, W/washer(For Transmission Case Cover) |
90119-08782 |
from US $1.50 |
||
|
9011908604
|
9011908604
90119-08604 BOLT |
90119-08604 |
US $2.87 |
||
