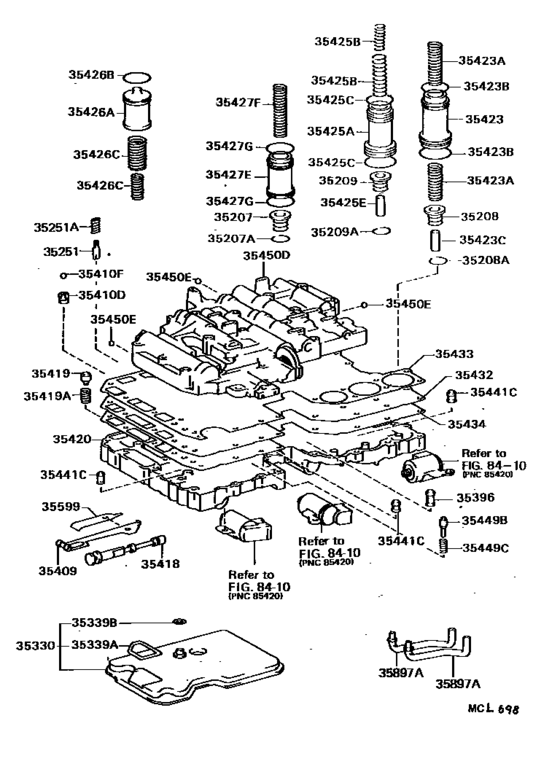

Valve Body & Oil Strainer (Atm) ([08.1988 - ] A340E (8808- )4FC) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGTE
- TRANSMISSION
- ATM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35207
|
35207
35207-30010
Spring Sub-Assy, B-0 Accumulator
[08.1988 - 05.1993] MA70..4FC..TWT |
35207-30010 |
— | ||
|
35207A
|
35207A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
90521-22004 |
from US $1.24 |
||
|
35208
|
35208
35208-24010
Spring Sub-Assy, B-2 Accumulator
[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
35208-24010 |
— | ||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
90521-22004 |
from US $1.24 |
||
|
35209
|
35209
35209-24010 Spring Sub-Assy, C-2 Accumulator[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
35209-24010 |
US $2.27 |
||
|
35209A
|
35209A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
90521-22004 |
from US $1.24 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[08.1988 - 10.1989] MA70..4FC |
35251-30020 |
US $13.28 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[08.1988 - 10.1989] MA70..4FC |
90501-03005 |
from US $0.70 |
||
|
35330
|
35330
35330-30011 Strainer Assy, Valve Body Oil[08.1988 - 12.1990] MA70..4FC |
35330-30011 |
from US $54.56 |
||
|
35339A
|
35339A
35339-30070 Gasket, Oil Strainer, No.1[08.1988 - 12.1990] MA70..4FC |
35339-30070 |
from US $5.09 |
||
|
35339B
|
35339B
90430-10010 Gasket, Oil Strainer, No.2[08.1988 - 12.1990] MA70..4FC |
90430-10010 |
US $2.48 |
||
|
35396
|
35396
35396-30010
Strainer, Throttle Oil
[08.1988 - 08.1991] MA70..4FC |
35396-30010 |
— | ||
|
35409
|
35409
35409-30020 Spring Sub-Assy, Manual Detent[08.1988 - 08.1991] MA70..4FC |
35409-30020 |
US $14.56 |
||
|
35410D
|
35410D
90917-10073
Valve, Check
[08.1988 - 08.1991] MA70..4FC |
90917-10073 |
— | ||
|
35410F
|
35410F
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1988 - 08.1991] MA70..4FC |
90360-06004 |
from US $0.80 |
||
|
35418
|
35418
35418-30070 Valve, Manual[08.1988 - 08.1991] MA70..4FC |
35418-30070 |
US $49.36 |
||
|
35419
|
35419
35419-12030
Valve, Check, No.1
[08.1988 - 08.1991] MA70..4FC |
35419-12030 |
— | ||
|
35419A
|
35419A
90501-11039
Spring, Compression (For Check Valve)
[08.1988 - 08.1991] MA70..4FC |
90501-11039 |
— | ||
|
35420
|
35420
35420-24021
Body Assy, Lower Valve
[08.1988 - 05.1993] MA70..4FC..TWT |
35420-24021 |
— | ||
|
35423
|
35423
35423-30030 Piston, B-2 Accumulator[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
35423-30030 |
US $17.65 |
||
|
35423A
|
35423A
90501-28011 Spring, Compression (For B-2 Accumulator Piston)[08.1988 - 09.1989] MA70..4FC..TWT |
90501-28011 |
US $4.02 |
||
|
35423A
|
35423A
90501-28015 Spring, Compression (For B-2 Accumulator Piston)[09.1989 - 10.1989] MA70..4FC..TWT |
90501-28015 |
US $2.77 |
||
|
35423B
|
35423B
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C UPR |
90301-23194 |
US $5.09 |
||
|
35423B
|
35423B
90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C LWR |
90301-31002 |
US $3.64 |
||
| replacement | |||||
|
35423B
|
35423B
90301-31010 Ring, O (For B-2 Accumulator Piston)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C LWR |
90301-31010 |
US $1.93 |
||
|
35425A
|
35425A
35425-30020 Piston, C-2 Accumulator[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
35425-30020 |
US $13.28 |
||
|
35425B
|
35425B
90501-21008 Spring, Compression (For C-2 Accumulator Piston)[08.1988 - 10.1989] MA70..4FC..TWT OUTER |
90501-21008 |
US $3.49 |
||
|
35425B
|
35425B
90501-25027 Spring, Compression (For C-2 Accumulator Piston)[08.1988 - 10.1989] MA70..4FC..ARL;MA70..4FC..TWT..C INNER |
90501-25027 |
from US $1.05 |
||
|
35425C
|
35425C
90301-25003
Ring, O (For C-2 Accumulator Piston)
[08.1988 - 12.1990] MA70..4FC UPR |
90301-25003 |
— | ||
| replacement | |||||
|
35425C
|
35425C
90301-25010 Ring, O(For Oil Pump Suction Pipe)[08.1988 - 12.1990] MA70..4FC UPR |
90301-25010 |
US $1.22 |
||
|
35425C
|
35425C
90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C LWR |
90301-31002 |
US $3.64 |
||
| replacement | |||||
|
35425C
|
35425C
90301-31010 Ring, O (For B-2 Accumulator Piston)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C LWR |
90301-31010 |
US $1.93 |
||
|
35426A
|
35426A
35426-40010 Piston, C-0 Accumulator[08.1988 - 12.1990] MA70..4FC..ARL;MA70..4FC..TWT..C |
35426-40010 |
US $13.28 |
||
|
35426B
|
35426B
90301-24001
Ring, O (For C-0 Accumulator Piston)
[08.1988 - 12.1990] MA70..4FC |
90301-24001 |
— | ||
| replacement | |||||
|
35426B
|
35426B
90301-24010 Ring, O (For C-0 Accumulator Piston)[08.1988 - 12.1990] MA70..4FC |
90301-24010 |
US $2.06 |
||
|
35426C
|
35426C
90501-22008 Spring, Compression (For C-2 Accumulator Piston)[08.1988 - 08.1991] MA70..4FC INNER |
90501-22008 |
US $0.96 |
||
|
35426C
|
35426C
90501-23073 Spring, Compression (For C-0 Accumulator Piston)[08.1988 - 12.1990] MA70..4FC..ARL;MA70..4FC..TWT..C OUTER |
90501-23073 |
US $1.40 |
||
|
35427E
|
35427E
35427-30040 Piston, B-0 Accumulator[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
35427-30040 |
US $15.55 |
||
|
35427F
|
35427F
90501-21006 Spring, Compression (For B-0 Accumulator Piston)[08.1988 - 05.1993] MA70..4FC..ARL;MA70..4FC..TWT..C |
90501-21006 |
US $1.40 |
||
|
35427G
|
35427G
90301-20002 Ring, O (For C-3 Accumulator Piston)[08.1988 - 12.1990] MA70..4FC UPR |
90301-20002 |
US $4.02 |
||
|
35427G
|
35427G
90301-26002 Ring, O (For B-0 Accumulator Piston)[08.1988 - 12.1990] MA70..4FC LWR |
90301-26002 |
US $3.64 |
||
| replacement | |||||
|
35427G
|
35427G
90301-26011 Ring, O (For C-3 Accumulator Piston)[08.1988 - 12.1990] MA70..4FC LWR |
90301-26011 |
from US $1.65 |
||
|
35432
|
35432
35432-24041 Plate, Valve Body, No.1[08.1988 - 05.1993] MA70..4FC..TWT |
35432-24041 |
US $55.18 |
||
|
35433
|
35433
35433-30064 Gasket, Valve Body, No.1[08.1988 - 08.1991] MA70..4FC |
35433-30064 |
US $9.96 |
||
|
35434
|
35434
35434-30076 Gasket, Valve Body, No.2[08.1988 - 08.1991] MA70..4FC |
35434-30076 |
from US $10.13 |
||
|
35441C
|
35441C
35441-30020 Strainer, Solenoid Oil[08.1988 - 03.1990] MA70..4FC UPR VALVE BODY |
35441-30020 |
US $4.89 |
||
|
35441C
|
35441C
35441-30030 Strainer, Solenoid Oil[08.1988 - 03.1990] MA70..4FC LWR VALVE BODY |
35441-30030 |
US $5.68 |
||
|
35441C
|
35441C
35441-30031 Strainer, Solenoid Oil[03.1990 - 08.1991] MA70..4FC LWR VALVE BODY |
35441-30031 |
US $4.89 |
||
|
35449B
|
35449B
35449-32010
Valve, Pressure Relief
[08.1988 - 08.1991] MA70..4FC |
35449-32010 |
— | ||
|
35449C
|
35449C
90501-09032 Spring, Compression (For Valve Pressure Relief)[08.1988 - 08.1991] MA70..4FC |
90501-09032 |
US $1.05 |
||
|
35450D
|
35450D
35450-24020 Body Assy, Upper Valve[08.1988 - 05.1993] MA70..4FC..TWT |
35450-24020 |
US $659.57 |
||
|
35450E
|
35450E
35495-22020 Ball (For Transfer Upper Valve Body)[08.1988 - 05.1993] MA70..4FC..TWT OD=5.535,RUBBER |
35495-22020 |
US $2.75 |
||
|
35450E
|
35450E
35496-22030 Ball (For Lower Valve Body)[08.1988 - 03.1990] MA70..4FC OD=6.35,RUBBER |
35496-22030 |
US $4.02 |
||
|
35599
|
35599
35599-30020 Cover, Manual Detent Spring[08.1988 - 08.1991] MA70..4FC |
35599-30020 |
US $4.95 |
||
|
35897A
|
35897A
35897-30020 Tube, 1St & Reverse Brake[08.1988 - 12.1990] MA70..4FC |
35897-30020 |
US $12.52 |
||
