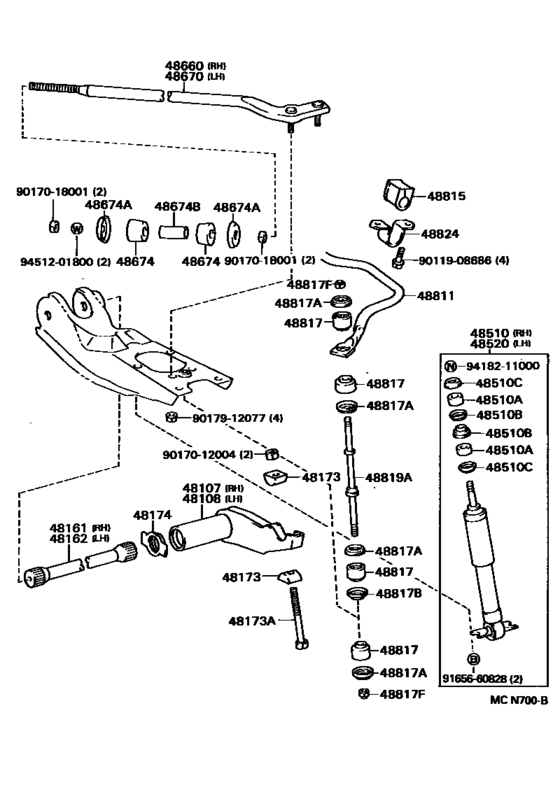

Front Spring & Shock Absorber ([09.1993 - ] (9309- )) Diagram Toyota T100
- Year
- 1993 - 1996
- Sales region
- General
- Frame
- RCK10
- grade
- SR5
- ENGINE
- 3RZF
- TRANSMISSION
- MTM
- From
- 09.1993
- To
- 08.1996
- Vehicle Model
- T100
- Loading Capacity
- 10T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-34010 Arm Sub-Assy, Anchor, RhANCHOR, RH [09.1993 - 08.1996] RCK10 |
48107-34010 |
US $84.45 |
||
|
48108
|
48108
48108-34010 Arm Sub-Assy, Anchor, LhANCHOR, LH [09.1993 - 08.1996] RCK10 |
48108-34010 |
US $84.45 |
||
|
48161
|
48161
48161-34020 Spring, Torsion Bar, RhTORSION BAR, RH [09.1993 - 08.1996] RCK10 |
48161-34020 |
US $158.70 |
||
|
48162
|
48162
48162-34020
Spring, Torsion Bar, Lh
[09.1993 - 08.1996] RCK10 |
48162-34020 |
— | ||
|
48173
|
48173
48173-35010 Swivel, Anchor Arm[09.1993 - 08.1996] RCK10 UPR |
48173-35010 |
from US $5.77 |
||
|
48173
|
48173
48173-35030 Seat, Anchor Arm Adjuster[09.1993 - 08.1996] RCK10 LWR |
48173-35030 |
US $7.51 |
||
|
48173A
|
48173A
90101-12159 Bolt, Hexagon(For Anchor Arm Adjusting)[09.1993 - 08.1996] RCK10 |
90101-12159 |
from US $6.01 |
||
|
48174
|
48174
48174-35030
Cover, Torsion Bar Dust
[09.1993 - 08.1996] RCK10 |
48174-35030 |
— | ||
| replacement | |||||
|
48174
|
48174
48174-35031
Cover, Torsion Bar Dust
[09.1993 - 08.1996] RCK10 |
48174-35031 |
— | ||
|
48510
|
48510
48511-80010 Absorber Assy, Shock, Front Rh[09.1993 - 08.1996] RCK10 |
48511-80010 |
US $94.64 |
||
| replacement | |||||
|
48510
|
48510
48511-39697 Absorber Assy, Shock, Front[09.1993 - 08.1996] RCK10 |
48511-39697 |
from US $55.87 |
||
|
48510A
|
48510A
90948-01002 Cushion[09.1993 - 08.1996] RCK10 |
90948-01002 |
from US $2.75 |
||
|
48510B
|
48510B
90948-02005 Retainer No.2[09.1993 - 08.1996] RCK10 |
90948-02005 |
from US $1.31 |
||
|
48510C
|
48510C
90948-02069 Retainer, Cushion, No.2(For Front Shock Absorber)[09.1993 - 08.1996] RCK10 |
90948-02069 |
from US $2.65 |
||
|
48520
|
48520
48511-80010 Absorber Assy, Shock, Front Rh[09.1993 - 08.1996] RCK10 |
48511-80010 |
US $94.64 |
||
| replacement | |||||
|
48520
|
48520
48511-39697 Absorber Assy, Shock, Front[09.1993 - 08.1996] RCK10 |
48511-39697 |
from US $55.87 |
||
|
48660
|
48660
48660-34010
Bar Assy, Strut, Rh
[09.1993 - 08.1996] RCK10 |
48660-34010 |
— | ||
|
48670
|
48670
48670-34010
Bar Assy, Strut, Lh
[09.1993 - 08.1996] RCK10 |
48670-34010 |
— | ||
|
48674
|
48674
48674-34010 Cushion, Strut BarSTRUT BAR [09.1993 - 08.1996] RCK10 |
48674-34010 |
US $9.61 |
||
|
48674A
|
48674A
90948-02030 Retainer, Cushion(For Strut Bar Cushion)[09.1993 - 08.1996] RCK10 |
90948-02030 |
from US $5.75 |
||
|
48674B
|
48674B
90387-18002 Collar(For Strut Bar Cushion)[09.1993 - 08.1996] RCK10 |
90387-18002 |
US $8.64 |
||
|
48811
|
48811
48811-34030 Bar, Stabilizer, FrontSTABILIZER, FRONT [09.1993 - 08.1996] RCK10 |
48811-34030 |
US $161.62 |
||
|
48815
|
48815
48815-34020 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [09.1993 - 08.1996] RCK10 |
48815-34020 |
US $12.23 |
||
|
48817
|
48817
48817-30010 Cushion, Front Stabilizer[09.1993 - 08.1996] RCK10 |
48817-30010 |
from US $2.63 |
||
|
48817A
|
48817A
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[09.1993 - 08.1996] RCK10 |
90948-02032 |
US $3.20 |
||
|
48817B
|
48817B
90948-02015 Retainer, Cushion, No.1(For Front Stabilizer Bar)[09.1993 - 08.1996] RCK10 |
90948-02015 |
from US $0.90 |
||
|
48817F
|
48817F
94182-10800 Nut[09.1993 - 08.1996] RCK10 |
94182-10800 |
from US $1.40 |
||
|
48819A
|
48819A
48819-34010 Bolt, Front StabilizerFRONT STABILIZER [09.1993 - 08.1996] RCK10 |
48819-34010 |
US $6.41 |
||
|
48824
|
48824
48824-34010 Bracket, Stabilizer, FrontSTABILIZER, FRONT [09.1993 - 08.1996] RCK10 |
48824-34010 |
US $11.36 |
||
|
9011908686
|
9011908686
90119-08686 BOLT |
90119-08686 |
from US $1.07 |
||
|
9017012004
|
9017012004
90170-12004 NUT |
90170-12004 |
from US $1.23 |
||
|
9017018001
|
9017018001
90170-18001 NUT |
90170-18001 |
US $5.92 |
||
|
9017912077
|
9017912077
90179-12077 Nut(For Front Lower Ball Joint Attachment Rh) |
90179-12077 |
US $2.56 |
||
|
9165660828
|
9165660828
91656-60828 New Genuine Part |
91656-60828 |
US $2.18 |
||
| replacement | |||||
|
9165660828
|
9165660828
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9418211000
|
9418211000
94182-11000 Nut(For Front Support To Front Shock Absorber) |
94182-11000 |
US $2.72 |
||
|
9451201800
|
9451201800
94512-01800 WASHER |
94512-01800 |
US $1.63 |
||
