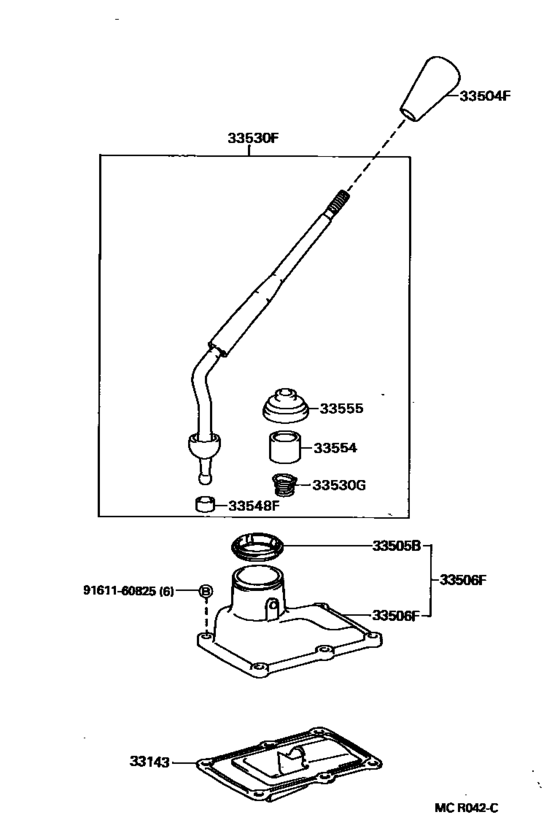

Shift Lever & Retainer ([09.1993 - ] W56,W59 (9309- )) Diagram Toyota T100
- Year
- 1993 - 1996
- Sales region
- General
- Frame
- RCK10
- grade
- SR5
- ENGINE
- 3RZF
- TRANSMISSION
- MTM
- From
- 09.1993
- To
- 08.1996
- Vehicle Model
- T100
- Loading Capacity
- 10T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143
|
33143
33143-35050 Plate, Extension Housing Oil BaffleEXTENSION HOUSING OIL BAFFLE [09.1993 - 08.1996] RCK10 |
33143-35050 |
US $39.82 |
||
|
33504F
|
33504F
33504-35030-B0
Knob Sub-Assy, Shift Lever
[09.1993 - 08.1996] RCK10 MEDIUM GRAY,TRIM1# |
33504-35030-B0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-35030-B3
Knob Sub-Assy, Shift Lever
[09.1993 - 08.1996] RCK10 MEDIUM GRAY,TRIM1# |
33504-35030-B3 |
— | ||
|
33504F
|
33504F
33504-35030-E2 Knob Sub-Assy, Shift LeverSHIFT LEVER [09.1993 - 08.1996] RCK10 OAK,TRIM4# |
33504-35030-E2 |
US $36.55 |
||
| replacement | |||||
|
33504F
|
33504F
33504-35030-B3
Knob Sub-Assy, Shift Lever
[09.1993 - 08.1996] RCK10 OAK,TRIM4# |
33504-35030-B3 |
— | ||
|
33505B
|
33505B
33505-35020 Seat Sub-Assy, Shift Lever[09.1993 - 08.1996] RCK10 |
33505-35020 |
from US $8.16 |
||
|
33506F
|
33506F
33570-34010 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)CONTROL SHIFT LEVER (FOR FLOOR SHIFT) [09.1993 - 08.1996] RCK10 |
33570-34010 |
from US $72.51 |
||
|
33530F
|
33530F
33530-34010
Lever Assy, Shift (For Floor Shift)
[09.1993 - 08.1996] RCK10 |
33530-34010 |
— | ||
|
33530G
|
33530G
90502-26007 Spring, Conical (For Shift Lever)[09.1993 - 08.1996] RCK10 |
90502-26007 |
US $3.14 |
||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[09.1993 - 08.1996] RCK10 |
33548-31010 |
from US $3.89 |
||
|
33554
|
33554
33554-30012 Cap, Shift Lever[09.1993 - 08.1996] RCK10 |
33554-30012 |
from US $6.08 |
||
|
33555
|
33555
33555-35040 Boot, Shift Lever[09.1993 - 08.1996] RCK10 |
33555-35040 |
from US $7.84 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
