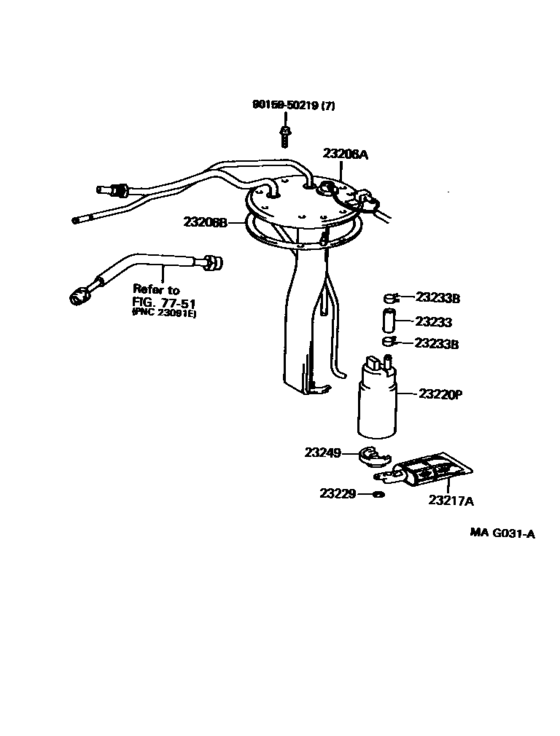

Fuel Injection System ([08.1992 - 08.1994] (9208-9408)3VZE) Diagram Toyota T100
- Year
- 1992 - 1994
- Sales region
- U.S.A.
- Frame
- VCK20
- grade
- STD
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- CAB
- RCB
- From
- 08.1992
- To
- 08.1994
- Vehicle Model
- T100
- Loading Capacity
- HLF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23206A
|
23206A
23206-65010
Bracket, Fuel Pump
[08.1992 - 01.1993] 3VZE..VCK10,20 |
23206-65010 |
— | ||
|
23206A
|
23206A
23206-65011 Bracket, Fuel PumpFUEL PUMP [01.1993 - 08.1994] 3VZE..VCK10,20 |
23206-65011 |
US $106.29 |
||
|
23206B
|
23206B
77169-14010 Gasket, Fuel Pump Bracket[08.1992 -] 3VZE,5VZFE..VCK1#,2# |
77169-14010 |
from US $3.68 |
||
| replacement | |||||
|
23206B
|
23206B
77169140101
Gasket, Fuel Pump Bracket
[08.1992 -] 3VZE,5VZFE..VCK1#,2# |
77169140101 |
— | ||
|
23217A
|
23217A
23217-11020
Filter, Fuel Pump
[08.1992 - 08.1994] 3VZE..VCK10,20 |
23217-11020 |
— | ||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[08.1992 -] 3VZE,5VZFE..VCK1#,2# |
23221-46010 |
from US $302.58 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1992 -] 3VZE,5VZFE..VCK1#,2# |
23229-16010 |
from US $0.92 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1992 -] 3VZE,5VZFE..VCK1#,2# |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[02.1994 -] 3RZFE..RCK10; 3VZE,5VZFE..VCK1#,2# |
23239-11010 |
US $10.88 |
||
|
23233
|
23233
23239-63010 Hose, Fuel Pump[08.1992 - 02.1994] 3VZE..VCK10,20 |
23239-63010 |
US $14.56 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[02.1994 -] 3RZFE..RCK10; 3VZE,5VZFE..VCK1#,2# |
90467-12067 |
from US $1.27 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1992 - 02.1994] 3VZE..VCK10,20 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[08.1992 - 02.1994] 3VZE..VCK10,20 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.1992 -] 3VZE,5VZFE..VCK1#,2# |
23249-74610 |
from US $8.56 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
