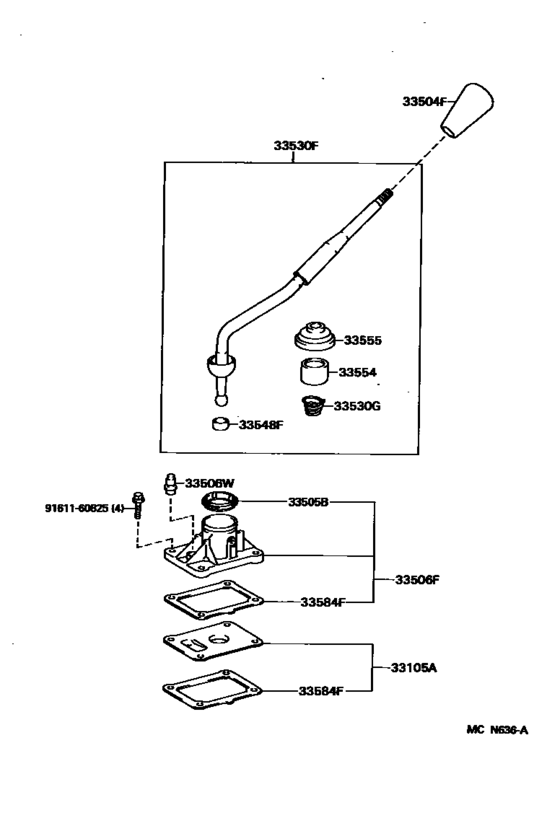

Shift Lever & Retainer ([08.1992 - 05.1994] (9208-9405)VCK20..MTM) Diagram Toyota T100
- Year
- 1992 - 1994
- Sales region
- U.S.A.
- Frame
- VCK20
- grade
- STD
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- CAB
- RCB
- From
- 08.1992
- To
- 08.1994
- Vehicle Model
- T100
- Loading Capacity
- HLF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33105A
|
33105A
33105-60010 Deflector Sub-Assy, Extension Housing Oil(Mtm)[08.1992 - 05.1994] VCK20..MTM |
33105-60010 |
US $13.10 |
||
|
33105A
|
33105A
33144-35030 Deflector Sub-Assy, Extension Housing Oil(Mtm)[05.1994 -] VCK2#..MTM |
33144-35030 |
from US $3.68 |
||
|
33504F
|
33504F
33504-14050-10 Knob Sub-Assy, Shift Lever[08.1992 - 08.1996] RCK10,VCK1#,2#..MTM..(DLX,STD) BLUE,TRIM8# |
33504-14050-10 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[08.1992 - 08.1996] RCK10,VCK1#,2#..MTM..(DLX,STD) BLUE,TRIM8# |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-14050-E2 Knob Sub-Assy, Shift Lever[08.1992 -] RCK10,VCK1#,2#..MTM..(DLX,STD) OAK,TRIM4# |
33504-14050-E2 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[08.1992 -] RCK10,VCK1#,2#..MTM..(DLX,STD) OAK,TRIM4# |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-14050-S4
Knob Sub-Assy, Shift Lever
[08.1992 - 08.1996] RCK10,VCK1#,2#..MTM..(DLX,STD) MEDIUM GRAY,TRIM1# |
33504-14050-S4 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[08.1992 - 08.1996] RCK10,VCK1#,2#..MTM..(DLX,STD) MEDIUM GRAY,TRIM1# |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-35030-B0
Knob Sub-Assy, Shift Lever
[08.1992 - 08.1995] RCK10,VCK1#,2#..MTM..(DLX,STD) W(CRUISE CONTROL),MEDIUM GRAY,TRIM1# |
33504-35030-B0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-35030-B3
Knob Sub-Assy, Shift Lever
[08.1992 - 08.1995] RCK10,VCK1#,2#..MTM..(DLX,STD) W(CRUISE CONTROL),MEDIUM GRAY,TRIM1# |
33504-35030-B3 |
— | ||
|
33504F
|
33504F
33504-35030-E2 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1992 - 08.1995] RCK10,VCK1#,2#..MTM..(DLX,STD) W(CRUISE CONTROL),OAK,TRIM4# |
33504-35030-E2 |
US $36.55 |
||
| replacement | |||||
|
33504F
|
33504F
33504-35030-B3
Knob Sub-Assy, Shift Lever
[08.1992 - 08.1995] RCK10,VCK1#,2#..MTM..(DLX,STD) W(CRUISE CONTROL),OAK,TRIM4# |
33504-35030-B3 |
— | ||
|
33504F
|
33504F
33504-35030-J0 Knob Sub-Assy, Shift Lever[08.1992 - 08.1995] RCK10,VCK1#,2#..MTM..(DLX,STD) W(CRUISE CONTROL),MEDIUM BLUE,TRIM8# |
33504-35030-J0 |
US $40.19 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[08.1992 - 08.1995] RCK10,VCK1#,2#..MTM..(DLX,STD) W(CRUISE CONTROL),MEDIUM BLUE,TRIM8# |
33504-24010-C1 |
from US $28.42 |
||
|
33505B
|
33505B
33505-35020 Seat Sub-Assy, Shift Lever[08.1992 - 05.1995] RCK10,VCK1#,2#..MTM |
33505-35020 |
from US $8.16 |
||
|
33506F
|
33506F
33506-35100 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[08.1992 - 05.1994] VCK20..MTM |
33506-35100 |
US $75.70 |
||
|
33506F
|
33506F
33506-35110 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[05.1994 - 08.1996] VCK2#..MTM |
33506-35110 |
from US $52.59 |
||
|
33506W
|
33506W
90930-03114 Plug, Breather(For Manual Transmission)[08.1992 - 06.1995] VCK2#..MTM |
90930-03114 |
US $4.89 |
||
|
33530F
|
33530F
33530-35210
Lever Assy, Shift (For Floor Shift)
[08.1992 - 08.1994] VCK20..MTM |
33530-35210 |
— | ||
|
33530G
|
33530G
90502-26007 Spring, Conical (For Shift Lever)[08.1992 -] RCK10,VCK1#,2#..MTM |
90502-26007 |
US $3.14 |
||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[08.1992 -] RCK10,VCK1#,2#..MTM |
33548-31010 |
from US $3.89 |
||
|
33554
|
33554
33554-30012 Cap, Shift Lever[08.1992 -] RCK10,VCK1#,2#..MTM |
33554-30012 |
from US $6.18 |
||
|
33555
|
33555
33555-60030 Boot, Shift Lever[08.1992 -] VCK2#..MTM |
33555-60030 |
from US $6.47 |
||
|
33584F
|
33584F
33584-60010 Gasket, Control Shift Lever Retainer (For Floor Shift)[08.1992 - 05.1994] VCK20..MTM |
33584-60010 |
from US $3.88 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
