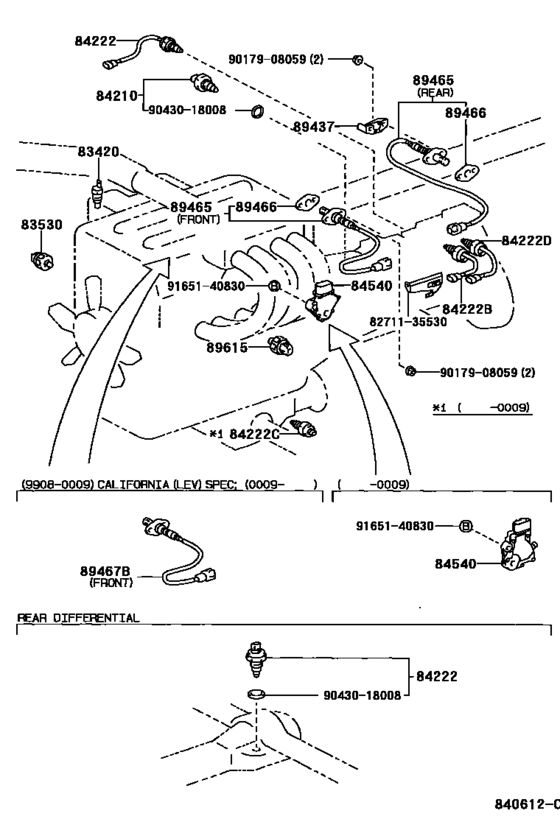

Switch & Relay & Computer ([01.1995 - 09.2004] ENGINE & TRANSMISSION (9501-0409)RZN161,171) Diagram Toyota TACOMA
- Year
- 1995 - 2004
- Sales region
- U.S.A.
- Frame
- RZN171
- grade
- DLX
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- XTR
- From
- 01.1995
- To
- 09.2004
- Gear Shift Type
- 5F
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[01.1995 - 09.2000] RZN161,171 |
83420-20040 |
from US $37.91 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[09.2000 -] RZN161,171,VZN170 |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.2000 -] RZN161,171,VZN170 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[09.2000 -] RZN161,171,VZN170 |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.1995 - 09.2000] RZN161,171,VZN160,170 |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[01.1995 - 09.2000] RZN161,171,VZN160,170..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[01.1995 - 09.2000] RZN161,171,VZN160,170..5F |
84210-52050 |
from US $20.67 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[09.1996 - 09.2000] VZN170;RZN161,171,VZN160..5F W(REAR DIFFERENTIAL LOCK) |
84222-12010 |
from US $49.25 |
||
|
84222
|
84222
84222-35100
Switch, Transfer Indicator, No.1
[01.1995 - 09.1996] RZN161,171,VZN160,170 |
84222-35100 |
— | ||
|
84222
|
84222
84222-35110 Switch, Transfer Indicator, No.3[09.1996 - 09.2000] RZN161,171,VZN160,170 |
84222-35110 |
from US $53.02 |
||
|
84222B
|
84222B
84222-35080 Switch, Transfer Indicator, No.1[09.1996 - 09.2000] RZN161,171,VZN160,170 |
84222-35080 |
from US $55.79 |
||
|
84222C
|
84222C
84222-35070 Switch, Transfer Indicator, No.3[01.1995 - 09.2000] RZN161,171,VZN160,170 |
84222-35070 |
from US $49.94 |
||
|
89437
|
89437
89437-60030 Cover, Sensor[08.1999 - 09.2000] RZN161,171,VZN170 |
89437-60030 |
US $14.15 |
||
|
89465
|
89465
89465-09020
Sensor, Oxygen
[08.1998 - 09.2000] RZN161,171..W FRONT & REAR |
89465-09020 |
— | ||
|
89465
|
89465
89465-09260
Sensor, Oxygen
[08.1999 - 09.2000] RZN171 CALIFORNIA(LEV) SPEC,REAR |
89465-09260 |
— | ||
|
89465
|
89465
89465-09330
Sensor, Oxygen
[09.2000 - 09.2002] RZN171 REAR |
89465-09330 |
— | ||
|
89465
|
89465
89465-09360
Sensor, Oxygen
[09.2002 - 09.2004] RZN171 REAR |
89465-09360 |
— | ||
|
89465
|
89465
89465-39735 Sensor, Oxygen[01.1995 - 08.1998] RZN161,171..W FRONT & REAR |
89465-39735 |
US $161.28 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
89466-20020 |
from US $13.42 |
||
|
89467B
|
89467B
89467-35011 Sensor, OxygenAIR FUEL RATIO [09.2000 -] RZN161,171..W FRONT |
89467-35011 |
US $224.64 |
||
|
89467B
|
89467B
89467-35040 Sensor, Air Fuel RatioAIR FUEL RATIO [08.1999 - 09.2000] RZN161,171..W CALIFORNIA(LEV) SPEC,FRONT |
89467-35040 |
from US $148.10 |
||
|
89615
|
89615
89615-26010 Sensor, Knock Control[08.1999 - 09.2000] RZN161,171 CALIFORNIA(LEV) SPEC |
89615-26010 |
from US $213.37 |
||
|
89615
|
89615
89615-50010 Sensor, Knock Control[01.1995 - 09.2000] RZN161,171 |
89615-50010 |
from US $142.21 |
||
|
8271135530
|
8271135530
82711-35530 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35530 |
US $8.30 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
