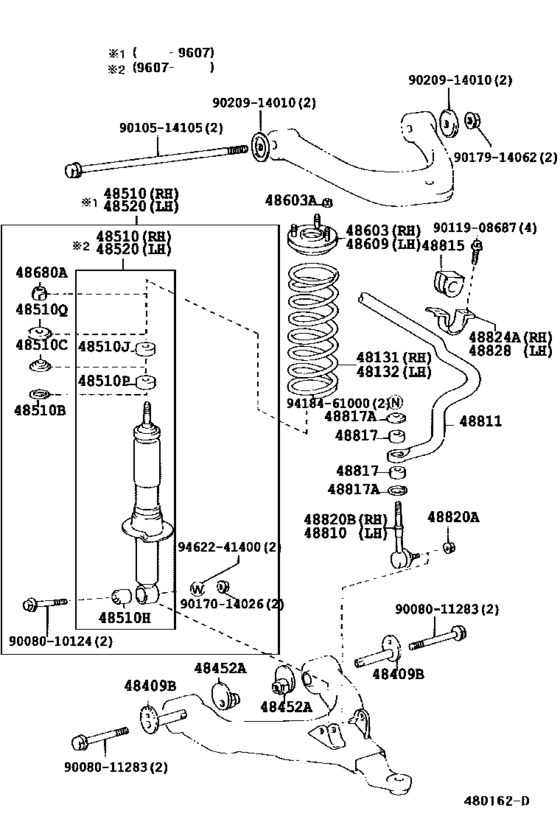

Front Spring & Shock Absorber ([01.1995 - 09.2000] (9501-0009)) Diagram Toyota TACOMA
- Year
- 1995 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- XTR
- From
- 01.1995
- To
- 09.2004
- Gear Shift Type
- 5F
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-04030 Spring, Front Coil, RhFRONT COIL, RH [01.1995 - 09.2000] RZN171,VZN160,170..5F L=370.5 |
48131-04030 |
US $208.21 |
||
|
48131
|
48131
48131-04050 Spring, Front Coil, RhFRONT COIL, RH [09.2000 -] RZN171;VZN170..R |
48131-04050 |
US $208.21 |
||
|
48131
|
48131
48131-AD010
Spring, Front Coil, Rh
[06.1997 - 09.2000] RZN171,VZN170..5F OFF ROAD PACKAGE |
48131-AD010 |
— | ||
|
48132
|
48132
48131-04070 Spring, Front Coil, RhFRONT COIL, RH [01.1995 - 09.2000] VZN170..R;RZN171..4FC L=380.5 |
48131-04070 |
US $208.21 |
||
|
48132
|
48132
48131-04320
Spring, Front Coil, Lh
[09.2000 -] VZN170..R |
48131-04320 |
— | ||
|
48132
|
48132
48131-AD040
Spring, Front Coil, Lh
[06.1997 - 09.2000] VZN170..R OFF ROAD PACKAGE |
48131-AD040 |
— | ||
|
48409B
|
48409B
48409-35040 Cam Sub-Assy, Front Suspension Toe AdjustFRONT SUSPENSION TOE ADJUST [01.1995 - 09.1995] RZN161,171,VZN160,170 |
48409-35040 |
US $13.10 |
||
|
48409B
|
48409B
48409-35050 Cam Sub-Assy, Front Suspension Toe Adjust[09.1995 - 09.2000] RZN161,171,VZN160,170 |
48409-35050 |
from US $16.42 |
||
|
48452A
|
48452A
48452-35010 Plate, Front Suspension Toe Adjust, No.2FRONT SUSPENSION TOE ADJUST, NO.2 [01.1995 - 09.1995] RZN161,171,VZN160,170 |
48452-35010 |
US $16.60 |
||
|
48452A
|
48452A
48452-35020 Plate, Front Suspension Toe Adjust, No.2[09.1995 - 09.2000] RZN161,171,VZN160,170 |
48452-35020 |
from US $16.19 |
||
|
48510
|
48510
48510-09110
Absorber Assy, Shock, Front Rh
[01.1995 - 09.1995] VZN160,170 MARK 48510-04020; RZN161,171 MARK 48510-04020,W(GAS SHOCK) |
48510-09110 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-35H00
Absorber Assy, Shock, Front Rh
[01.1995 - 09.1995] VZN160,170 MARK 48510-04020; RZN161,171 MARK 48510-04020,W(GAS SHOCK) |
48510-35H00 |
— | ||
|
48510
|
48510
48510-09111
Absorber Assy, Shock, Front Rh
[09.1995 - 01.1996] VZN160,170 MARK 48510-04021,(L); RZN161,171 MARK 48510-04021,W(GAS SHOCK),(L) |
48510-09111 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-09113 Absorber Assy, Shock, Front Rh[09.1995 - 01.1996] VZN160,170 MARK 48510-04021,(L); RZN161,171 MARK 48510-04021,W(GAS SHOCK),(L) |
48510-09113 |
US $110.66 |
||
|
48510
|
48510
48510-09113 Absorber Assy, Shock, Front Rh[07.1996 - 06.1997] VZN160,170 MARK 48510-04021,(L); RZN161,171 MARK 48510-04021,W(GAS SHOCK),(L) |
48510-09113 |
US $110.66 |
||
|
48510
|
48510
48510-09270
Absorber Assy, Shock, Front Rh
[06.1997 - 08.1997] RZN161,171,VZN170 MARK 48510-04030,(L) |
48510-09270 |
— | ||
|
48510
|
48510
48510-39575
Absorber Assy, Shock, Front Rh
[04.1996 - 07.1996] VZN160,170 MARK 48510-35120,(J); RZN161,171 MARK 48510-35120,W(GAS SHOCK),(J) |
48510-39575 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-39576 Absorber Assy, Shock, Front Rh[04.1996 - 07.1996] VZN160,170 MARK 48510-35120,(J); RZN161,171 MARK 48510-35120,W(GAS SHOCK),(J) |
48510-39576 |
US $116.48 |
||
|
48510
|
48510
48510-39576 Absorber Assy, Shock, Front Rh[07.1996 - 06.1997] VZN160,170 MARK 48510-35120,(J); RZN161,171 MARK 48510-35120,W(GAS SHOCK),(J) |
48510-39576 |
US $116.48 |
||
|
48510
|
48510
48510-39665
Absorber Assy, Shock, Front Rh
[06.1997 - 08.1997] RZN161,171,VZN170 MARK 48510-35130,(J) |
48510-39665 |
— | ||
|
48510
|
48510
48510-80025 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [09.2000 - 09.2004] RZN161,171,VZN170..RCB,XTR MARK 48510-35180,(J) |
48510-80025 |
US $301.39 |
||
|
48510
|
48510
48510-A9050 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [06.1997 - 09.2000] VZN170;RZN171..W MARK 48510-AD010,OFF ROAD PACKAGE |
48510-A9050 |
US $176.10 |
||
|
48510B
|
48510B
90948-02159 Retainer, Cushion, No.1(For Front Shock Absorber)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-02159 |
from US $4.16 |
||
|
48510C
|
48510C
90948-02160 Retainer, Cushion, No.2(For Front Shock Absorber)CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) [01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-02160 |
US $4.02 |
||
|
48510H
|
48510H
90389-14048 Bush(For Front Shock Absorber)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90389-14048 |
from US $14.08 |
||
|
48510H
|
48510H
90903-89012 Bush(For Front Shock Absorber)[06.1997 - 09.2000] VZN170;RZN171..W OFF ROAD PACKAGE |
90903-89012 |
from US $13.92 |
||
|
48510J
|
48510J
90948-01056 Cushion, Front Shock Absorber, No.1[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-01056 |
from US $3.68 |
||
|
48510P
|
48510P
90948-01057 Cushion, Front Shock Absorber, No.2FRONT SHOCK ABSORBER, NO.2 [01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-01057 |
US $5.76 |
||
|
48510Q
|
48510Q
90948-02161 Retainer, Cushion, No.3(For Front Shock Absorber)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-02161 |
from US $6.72 |
||
|
48520
|
48520
48510-09110
Absorber Assy, Shock, Front Rh
[01.1995 - 09.1995] VZN160,170 MARK 48510-04020; RZN161,171 MARK 48510-04020,W(GAS SHOCK) |
48510-09110 |
— | ||
| replacement | |||||
|
48520
|
48520
48510-35H00
Absorber Assy, Shock, Front Rh
[01.1995 - 09.1995] VZN160,170 MARK 48510-04020; RZN161,171 MARK 48510-04020,W(GAS SHOCK) |
48510-35H00 |
— | ||
|
48520
|
48520
48510-09111
Absorber Assy, Shock, Front Rh
[09.1995 - 01.1996] VZN160,170 MARK 48510-04021,(L); RZN161,171 MARK 48510-04021,W(GAS SHOCK),(L) |
48510-09111 |
— | ||
| replacement | |||||
|
48520
|
48520
48510-09113 Absorber Assy, Shock, Front Rh[09.1995 - 01.1996] VZN160,170 MARK 48510-04021,(L); RZN161,171 MARK 48510-04021,W(GAS SHOCK),(L) |
48510-09113 |
US $110.66 |
||
|
48520
|
48520
48510-09113 Absorber Assy, Shock, Front Rh[07.1996 - 06.1997] VZN160,170 MARK 48510-04021,(L); RZN161,171 MARK 48510-04021,W(GAS SHOCK),(L) |
48510-09113 |
US $110.66 |
||
|
48520
|
48520
48510-09270
Absorber Assy, Shock, Front Rh
[06.1997 - 08.1997] RZN161,171,VZN170 MARK 48510-04030,(L) |
48510-09270 |
— | ||
|
48520
|
48520
48510-39575
Absorber Assy, Shock, Front Rh
[04.1996 - 07.1996] VZN160,170 MARK 48510-35120,(J); RZN161,171 MARK 48510-35120,W(GAS SHOCK),(J) |
48510-39575 |
— | ||
| replacement | |||||
|
48520
|
48520
48510-39576 Absorber Assy, Shock, Front Rh[04.1996 - 07.1996] VZN160,170 MARK 48510-35120,(J); RZN161,171 MARK 48510-35120,W(GAS SHOCK),(J) |
48510-39576 |
US $116.48 |
||
|
48520
|
48520
48510-39576 Absorber Assy, Shock, Front Rh[07.1996 - 06.1997] VZN160,170 MARK 48510-35120,(J); RZN161,171 MARK 48510-35120,W(GAS SHOCK),(J) |
48510-39576 |
US $116.48 |
||
|
48520
|
48520
48510-39665
Absorber Assy, Shock, Front Rh
[06.1997 - 08.1997] RZN161,171,VZN170 MARK 48510-35130,(J) |
48510-39665 |
— | ||
|
48520
|
48520
48510-80025 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [09.2000 - 09.2004] RZN161,171,VZN170..RCB,XTR MARK 48510-35180,(J) |
48510-80025 |
US $301.39 |
||
|
48520
|
48520
48510-A9050 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [06.1997 - 09.2000] VZN170;RZN171..W MARK 48510-AD010,OFF ROAD PACKAGE |
48510-A9050 |
US $176.10 |
||
|
48603
|
48603
48609-35010 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [01.1995 - 09.2000] RZN161,171,VZN160,170 |
48609-35010 |
US $56.09 |
||
|
48603A
|
48603A
90179-10212 Nut(For Front Suspension Support)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90179-10212 |
from US $1.21 |
||
|
48609
|
48609
48609-35010 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [01.1995 - 09.2000] RZN161,171,VZN160,170 |
48609-35010 |
US $56.09 |
||
|
48680A
|
48680A
90179-12140 Nut[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90179-12140 |
US $2.72 |
||
|
48810
|
48810
48810-35020 Link Assy, Front Stabilizer, Lh[09.2000 -] RZN161,171,VZN170 |
48810-35020 |
US $96.10 |
||
|
48810
|
48810
48820-35020
Link Assy, Front Stabilizer
[01.1995 - 05.2000] RZN161,171,VZN160,170 |
48820-35020 |
— | ||
| replacement | |||||
|
48810
|
48810
48820-35021 Link Assy, Front Stabilizer[01.1995 - 05.2000] RZN161,171,VZN160,170 |
48820-35021 |
from US $64.65 |
||
|
48810
|
48810
48820-35021 Link Assy, Front Stabilizer[05.2000 - 09.2000] RZN161,171,VZN170 |
48820-35021 |
from US $64.65 |
||
|
48811
|
48811
48811-04040
Bar, Stabilizer, Front
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
48811-04040 |
— | ||
|
48811
|
48811
48811-04110
Bar, Stabilizer, Front
[09.2000 -] RZN161,171,VZN170 |
48811-04110 |
— | ||
|
48811
|
48811
48811-AD010
Bar, Stabilizer, Front
[06.1997 - 09.2000] VZN170;RZN171..W OFF ROAD PACKAGE |
48811-AD010 |
— | ||
|
48815
|
48815
48815-04040
Bush, Front Stabilizer Bar, No.1
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
48815-04040 |
— | ||
|
48815
|
48815
48815-35090 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [09.2000 -] RZN161,171,VZN170 |
48815-35090 |
from US $14.88 |
||
|
48815
|
48815
48815-AD010
Bush, Front Stabilizer Bar, No.1
[06.1997 - 09.2000] VZN170;RZN171..W OFF ROAD PACKAGE |
48815-AD010 |
— | ||
|
48817
|
48817
90948-01002 Cushion[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-01002 |
from US $2.75 |
||
|
48817A
|
48817A
90948-02069 Retainer, Cushion, No.2(For Front Shock Absorber)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90948-02069 |
from US $2.65 |
||
|
48820A
|
48820A
90179-12141 Nut(For Front Stabilizer Link)[01.1995 - 09.2000] RZN161,171,VZN160,170 |
90179-12141 |
from US $0.99 |
||
|
48820B
|
48820B
48820-35020
Link Assy, Front Stabilizer
[01.1995 - 05.2000] RZN161,171,VZN160,170 |
48820-35020 |
— | ||
| replacement | |||||
|
48820B
|
48820B
48820-35021 Link Assy, Front Stabilizer[01.1995 - 05.2000] RZN161,171,VZN160,170 |
48820-35021 |
from US $64.65 |
||
|
48820B
|
48820B
48820-35021 Link Assy, Front Stabilizer[05.2000 - 09.2000] RZN161,171,VZN170 |
48820-35021 |
from US $64.65 |
||
|
48820B
|
48820B
48820-35040 Link Assy, Front Stabilizer, Rh[09.2000 -] RZN161,171,VZN170 |
48820-35040 |
US $96.10 |
||
|
48824A
|
48824A
48824-35100
Bracket, Front Stabilizer, No.1 Rh
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
48824-35100 |
— | ||
|
48828
|
48828
48829-35070 Bracket, Front Stabilizer, No.2 Lh[01.1995 - 09.2000] RZN161,171,VZN160,170 |
48829-35070 |
US $12.38 |
||
|
9008010124
|
9008010124
90080-10124
New Genuine Part
|
90080-10124 |
— | ||
|
9008011283
|
9008011283
90080-11283
New Genuine Part
|
90080-11283 |
— | ||
|
9010514105
|
9010514105
90105-14105 BOLT, WASHER BASED |
90105-14105 |
from US $11.74 |
||
|
9011908687
|
9011908687
90119-08687 Bolt, W/washer(For Transmission Case Cover) |
90119-08687 |
US $1.89 |
||
| replacement | |||||
|
9011908687
|
9011908687
90119-08782 Bolt, W/washer(For Transmission Case Cover) |
90119-08782 |
from US $1.62 |
||
|
9017014026
|
9017014026
90170-14026 Nut(For Front Support To Front Shock Absorber Rh) |
90170-14026 |
from US $0.99 |
||
|
9017914062
|
9017914062
90179-14062 Nut (For Steering Knuckle Rh) |
90179-14062 |
from US $1.21 |
||
|
9020914010
|
9020914010
90209-14010 WASHER |
90209-14010 |
from US $5.19 |
||
|
9418461000
|
9418461000
94184-61000
Nut(For Rear Spring)
|
94184-61000 |
— | ||
| replacement | |||||
|
9418461000
|
9418461000
48284-37U70 Nut(For Rear Spring) |
48284-37U70 |
US $2.33 |
||
|
9462241400
|
9462241400
94622-41400 WASHER PLATE |
94622-41400 |
from US $1.46 |
||
