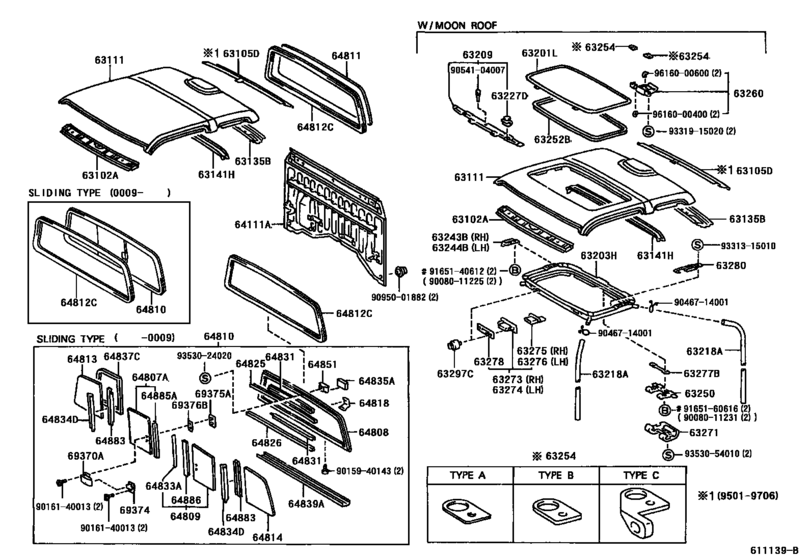

Roof Panel & Back Panel ([01.1995 - ] (9501- )XTR) Diagram Toyota TACOMA
- Year
- 1995 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- XTR
- From
- 01.1995
- To
- 09.2004
- Gear Shift Type
- 5F
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-04050
Panel Sub-Assy, Windshield Header
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
63102-04050 |
— | ||
|
63105D
|
63105D
63105-04070 Frame Sub-Assy, Back Window, UpperBACK WINDOW, UPPER [01.1995 - 06.1997] RZN171,VZN170 |
63105-04070 |
US $71.20 |
||
|
63111
|
63111
63111-04050
Panel, Roof
[01.1995 - 09.2000] RZN171,VZN170 |
63111-04050 |
— | ||
|
63111
|
63111
63111-04060 Panel, RoofROOF [01.1995 - 09.2000] RZN171,VZN170 W(MOON ROOF) |
63111-04060 |
US $413.50 |
||
|
63135B
|
63135B
63135-04022
Panel, Back Window, Upper Inner
[06.1997 - 09.2000] RZN171,VZN170 |
63135-04022 |
— | ||
|
63141H
|
63141H
63141-35010 Reinforcement, Roof Panel, Center[01.1995 - 07.1999] RZN171,VZN170 |
63141-35010 |
US $74.26 |
||
| replacement | |||||
|
63141H
|
63141H
63141-35011 Reinforcement, Roof Panel, Center[01.1995 - 07.1999] RZN171,VZN170 |
63141-35011 |
US $72.80 |
||
|
63141H
|
63141H
63141-35011 Reinforcement, Roof Panel, Center[07.1999 - 09.2000] RZN171,VZN170 |
63141-35011 |
US $72.80 |
||
|
63201L
|
63201L
63201-35030
Glass Sub-Assy, Removable Roof
[01.1995 - 06.1997] RZN171,VZN170 |
63201-35030 |
— | ||
|
63201L
|
63201L
63201-35031
Glass Sub-Assy, Removable Roof
[06.1997 - 09.2000] RZN171,VZN170 |
63201-35031 |
— | ||
|
63203H
|
63203H
63203-04010 Housing Sub-Assy, Removable RoofREMOVABLE ROOF [01.1995 - 09.2000] RZN171,VZN170 |
63203-04010 |
US $355.26 |
||
|
63203H
|
63203H
63203-04020
Housing Sub-Assy, Removable Roof
[09.2000 - 09.2003] RZN171,VZN170..XTR |
63203-04020 |
— | ||
|
63209
|
63209
63209-35010 Panel Sub-Assy, Roof Wind DeflectorROOF WIND DEFLECTOR [01.1995 - 09.2000] RZN171,VZN170 |
63209-35010 |
US $132.50 |
||
|
63218A
|
63218A
63249-35020 Hose, Sliding Roof Drain[01.1995 - 09.2000] RZN171,VZN170 L=1550,FRONT |
63249-35020 |
US $18.64 |
||
|
63218A
|
63218A
63249-35030 Hose(For Sliding Roof Or Removable Roof Drain)[01.1995 - 09.2000] RZN171,VZN170 L=1305,REAR |
63249-35030 |
US $17.91 |
||
| replacement | |||||
|
63218A
|
63218A
63249-13180 Hose, Sliding Roof Drain[01.1995 - 09.2000] RZN171,VZN170 L=1305,REAR |
63249-13180 |
US $20.09 |
||
|
63227D
|
63227D
63227-17010
Clip, Roof Wind Deflector Panel
[01.1995 - 09.2000] RZN171,VZN170 |
63227-17010 |
— | ||
|
63243B
|
63243B
63243-35020 Bracket, Removable Roof Housing Side Mounting, Rh[01.1995 - 01.1997] RZN171,VZN170 |
63243-35020 |
US $8.15 |
||
| replacement | |||||
|
63243B
|
63243B
63243-35021 Bracket, Removable Roof Housing Side Mounting, Rh[01.1995 - 01.1997] RZN171,VZN170 |
63243-35021 |
US $8.15 |
||
|
63243B
|
63243B
63243-35021 Bracket, Removable Roof Housing Side Mounting, Rh[01.1997 - 09.2000] RZN171,VZN170 |
63243-35021 |
US $8.15 |
||
|
63244B
|
63244B
63243-35020 Bracket, Removable Roof Housing Side Mounting, Rh[01.1995 - 01.1997] RZN171,VZN170 |
63243-35020 |
US $8.15 |
||
| replacement | |||||
|
63244B
|
63244B
63243-35021 Bracket, Removable Roof Housing Side Mounting, Rh[01.1995 - 01.1997] RZN171,VZN170 |
63243-35021 |
US $8.15 |
||
|
63244B
|
63244B
63243-35021 Bracket, Removable Roof Housing Side Mounting, Rh[01.1997 - 09.2000] RZN171,VZN170 |
63243-35021 |
US $8.15 |
||
|
63250
|
63250
63250-17011
Base Assy, Removable Roof Lock
[01.1995 - 09.2000] RZN171,VZN170 |
63250-17011 |
— | ||
|
63252B
|
63252B
63252-35010
Weatherstrip, Removable Roof, Rear
[01.1995 - 09.2000] RZN171,VZN170 |
63252-35010 |
— | ||
|
63254
|
63254
63254-35010
Holder, Removable Roof Glass, Inner Rear
[01.1995 - 09.2000] RZN171,VZN170 TYPE A:REFER TO ILLUSTRATION |
63254-35010 |
— | ||
|
63254
|
63254
63254-89103
Holder, Removable Roof Glass, Inner Rear
[01.1995 - 09.2000] RZN171,VZN170 TYPE B:REFER TO ILLUSTRATION |
63254-89103 |
— | ||
|
63254
|
63254
63254-89104 Holder, Removable Roof Glass, Inner Rear[01.1995 - 09.2000] RZN171,VZN170 TYPE C:REFER TO ILLUSTRATION |
63254-89104 |
US $16.31 |
||
|
63260
|
63260
63260-17022-B3
Handle Assy, Removable Roof Lock
[01.1995 - 06.1997] RZN171,VZN170 LT.BLUISH GRAY,TRIM1# |
63260-17022-B3 |
— | ||
|
63260
|
63260
63260-17022-B4 Handle Assy, Removable Roof Lock[06.1997 - 09.2000] RZN171,VZN170 MOON MIST,TRIM1# |
63260-17022-B4 |
US $138.32 |
||
| replacement | |||||
|
63260
|
63260
63260-35040-B0 Handle Assy, Removable Roof LockREMOVABLE ROOF LOCK [06.1997 - 09.2000] RZN171,VZN170 MOON MIST,TRIM1# |
63260-35040-B0 |
US $136.86 |
||
|
63260
|
63260
63260-17022-E2
Handle Assy, Removable Roof Lock
[01.1995 - 09.2000] RZN171,VZN170 MD.OAK,TRIM4# |
63260-17022-E2 |
— | ||
| replacement | |||||
|
63260
|
63260
63260-35040-E0
Handle Assy, Removable Roof Lock
[01.1995 - 09.2000] RZN171,VZN170 MD.OAK,TRIM4# |
63260-35040-E0 |
— | ||
|
63260
|
63260
63260-35040-B2 Handle Assy, Removable Roof LockREMOVABLE ROOF LOCK [09.2000 - 09.2003] RZN171,VZN170 MD.CHARCOAL,TRIM1# |
63260-35040-B2 |
US $138.32 |
||
|
63260
|
63260
63260-35040-E0
Handle Assy, Removable Roof Lock
[09.2000 - 09.2003] RZN171,VZN170 MD.OAK,TRIM4# |
63260-35040-E0 |
— | ||
|
63271
|
63271
63271-16010-B1 Garnish, Removable Roof Lock[06.1997 - 09.2000] RZN171,VZN170 MOON MIST,TRIM1# |
63271-16010-B1 |
US $13.83 |
||
|
63271
|
63271
63271-16010-B3 Garnish, Removable Roof LockREMOVABLE ROOF LOCK [09.2000 - 09.2003] RZN171,VZN170 MD.CHARCOAL,TRIM1# |
63271-16010-B3 |
US $27.66 |
||
|
63271
|
63271
63271-16010-E0
Garnish, Removable Roof Lock
[06.1997 - 09.2000] RZN171,VZN170 MD.OAK,TRIM4# |
63271-16010-E0 |
— | ||
|
63271
|
63271
63271-89102-B0 Garnish, Removable Roof Lock[01.1995 - 06.1997] RZN171,VZN170 LT.BLUISH GRAY,TRIM1# |
63271-89102-B0 |
US $12.67 |
||
|
63271
|
63271
63271-89102-E0 Garnish, Removable Roof Lock[01.1995 - 06.1997] RZN171,VZN170 MD.OAK,TRIM4# |
63271-89102-E0 |
US $12.67 |
||
| replacement | |||||
|
63271
|
63271
63271-89102-B0 Garnish, Removable Roof Lock[01.1995 - 06.1997] RZN171,VZN170 MD.OAK,TRIM4# |
63271-89102-B0 |
US $12.67 |
||
|
63273
|
63273
63273-17040
Case, Removable Roof Hinge, Rh
[01.1995 - 09.2000] RZN171,VZN170 |
63273-17040 |
— | ||
|
63274
|
63274
63274-17040
Case, Removable Roof Hinge, Lh
[01.1995 - 09.2000] RZN171,VZN170 |
63274-17040 |
— | ||
|
63275
|
63275
63275-17010
Holder, Removable Roof Hinge, Rh
[01.1995 - 09.2000] RZN171,VZN170 |
63275-17010 |
— | ||
|
63276
|
63276
63276-17010
Holder, Removable Roof Hinge, Lh
[01.1995 - 09.2000] RZN171,VZN170 |
63276-17010 |
— | ||
|
63277B
|
63277B
63277-89101
Spacer, Removable Roof Lock Base
[01.1995 - 09.2000] RZN171,VZN170 |
63277-89101 |
— | ||
|
63278
|
63278
63278-12010
Seal, Removable Roof Hinge Case
[01.1995 - 09.2000] RZN171,VZN170 |
63278-12010 |
— | ||
|
63280
|
63280
63280-89101 Catch Assy, Removable Roof Auxiliary, Rh[01.1995 - 09.2000] RZN171,VZN170 |
63280-89101 |
US $16.31 |
||
|
63297C
|
63297C
63297-12010
Bolt, Removable Roof Hinge Case
[01.1995 - 09.2000] RZN171,VZN170 |
63297-12010 |
— | ||
|
64111A
|
64111A
64101-04080 Panel, Back[01.1995 - 09.2000] RZN171,VZN170 |
64101-04080 |
US $465.92 |
||
| replacement | |||||
|
64111A
|
64111A
64101-04090 Panel, Back[01.1995 - 09.2000] RZN171,VZN170 |
64101-04090 |
US $465.92 |
||
|
64111A
|
64111A
64101-04090 Panel, Back[01.1995 - 01.1996] VZN170..SR5;RZN171,VZN170..5F..DLX CANADA SPEC |
64101-04090 |
US $465.92 |
||
|
64111A
|
64111A
64101-04140
Panel, Back
[09.2000 -] RZN171,VZN170..XTR |
64101-04140 |
— | ||
|
64807A
|
64807A
64807-04010
Glass Sub-Assy, Back Window Slide, Rh
[01.1995 - 09.2000] RZN161,171,VZN160,170 *TEM,T=3.3,BLUE |
64807-04010 |
— | ||
|
64807A
|
64807A
64807-04020
Glass Sub-Assy, Back Window Slide, Rh
[01.1995 - 08.1998] RZN161,171,VZN160,170 *TEM,T=3.3,GRAY |
64807-04020 |
— | ||
|
64807A
|
64807A
64807-04030
Glass Sub-Assy, Back Window Slide, Rh
[08.1998 - 09.2000] RZN161,171,VZN170 *TEM,T=3.3,GRAY |
64807-04030 |
— | ||
|
64808
|
64808
64808-04010 Channel Sub-Assy, Back Window Slide GlassBACK WINDOW SLIDE GLASS [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64808-04010 |
US $171.81 |
||
|
64809
|
64809
64809-04010
Glass Sub-Assy, Back Window Slide, Lh
[01.1995 - 09.2000] RZN161,171,VZN160,170 *TEM,T=3.3,BLUE |
64809-04010 |
— | ||
|
64809
|
64809
64809-04020
Glass Sub-Assy, Back Window Slide, Lh
[01.1995 - 08.1998] RZN161,171,VZN160,170 *TEM,T=3.3,GRAY |
64809-04020 |
— | ||
|
64809
|
64809
64809-04030
Glass Sub-Assy, Back Window Slide, Lh
[08.1998 - 09.2000] RZN161,171,VZN170 *TEM,T=3.3,GRAY |
64809-04030 |
— | ||
|
64810
|
64810
64810-04010
Window Assy, Back
[01.1995 - 09.2000] RZN161,171,VZN160,170 *TEM,T=3.3,BLUE |
64810-04010 |
— | ||
|
64810
|
64810
64810-04020
Window Assy, Back
[01.1995 - 08.1998] RZN161,171,VZN160,170 *TEM,T=3.3,GRAY |
64810-04020 |
— | ||
|
64810
|
64810
64810-04030
Window Assy, Back
[08.1998 - 09.2000] RZN161,171,VZN170 *TEM,T=3.3,GRAY |
64810-04030 |
— | ||
| replacement | |||||
|
64810
|
64810
64810-04051
Window Assy, Back
[08.1998 - 09.2000] RZN161,171,VZN170 *TEM,T=3.3,GRAY |
64810-04051 |
— | ||
|
64810
|
64810
64810-04040
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GREEN |
64810-04040 |
— | ||
| replacement | |||||
|
64810
|
64810
64810-04041
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GREEN |
64810-04041 |
— | ||
|
64810
|
64810
64810-04041
Window Assy, Back
[08.2001 - 09.2003] RZN161,171,VZN170 *TEM,T=3.4,GREEN |
64810-04041 |
— | ||
|
64810
|
64810
64810-04050
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64810-04050 |
— | ||
| replacement | |||||
|
64810
|
64810
64810-04051
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64810-04051 |
— | ||
|
64810
|
64810
64810-04051
Window Assy, Back
[08.2001 -] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64810-04051 |
— | ||
|
64810
|
64810
64810-04100
Window Assy, Back
[09.2003 -] RZN161,171,VZN170 *TT,T=3.4,GREEN |
64810-04100 |
— | ||
|
64811
|
64811
64811-04130
Glass, Back Window
[09.2003 -] RZN161,171,VZN170 *TT,T=3.5,GREEN |
64811-04130 |
— | ||
|
64811
|
64811
64811-AD020 Glass, Back WindowBACK WINDOW [01.1995 - 09.2000] RZN161,171,VZN160,170 *TEM,T=3.5,BLUE |
64811-AD020 |
US $407.68 |
||
|
64812C
|
64812C
64812-04040 Weatherstrip, Back Window GlassBACK WINDOW GLASS [01.1995 - 09.2000] RZN161,171,VZN160,170 W(SLIDING TYPE BACK WINDOW) |
64812-04040 |
US $82.99 |
||
|
64812C
|
64812C
64812-AD010 Weatherstrip, Back Window GlassBACK WINDOW GLASS [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64812-AD010 |
US $87.36 |
||
|
64813
|
64813
64813-04010
Glass, Back Window Corner, Rh
[01.1995 - 09.2000] RZN161,171,VZN160,170 *TEM,T=3.4,BLUE |
64813-04010 |
— | ||
|
64813
|
64813
64813-04020
Glass, Back Window Corner, Rh
[01.1995 - 08.1998] RZN161,171,VZN160,170 *TEM,T=3.4,GRAY |
64813-04020 |
— | ||
|
64813
|
64813
64813-04030
Glass, Back Window Corner, Rh
[08.1998 - 09.2000] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64813-04030 |
— | ||
|
64814
|
64814
64814-04010
Glass, Back Window Corner, Lh
[01.1995 - 09.2000] RZN161,171,VZN160,170 *TEM,T=3.4,BLUE |
64814-04010 |
— | ||
|
64814
|
64814
64814-04020
Glass, Back Window Corner, Lh
[01.1995 - 08.1998] RZN161,171,VZN160,170 *TEM,T=3.4,GRAY |
64814-04020 |
— | ||
|
64814
|
64814
64814-04030
Glass, Back Window Corner, Lh
[08.1998 - 09.2000] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64814-04030 |
— | ||
|
64818
|
64818
64818-89101 Spacer, Back Window Glass[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64818-89101 |
US $2.80 |
||
|
64825
|
64825
64825-04010
Run, Back Window Channel, Upper
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64825-04010 |
— | ||
|
64826
|
64826
64826-04010 Run, Back Window Channel, LowerBACK WINDOW CHANNEL, LOWER [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64826-04010 |
US $25.19 |
||
|
64831
|
64831
64831-04010
Weatherstrip, Back Window Glass
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64831-04010 |
— | ||
|
64833A
|
64833A
64833-04010 Weatherstrip, Back Window Center ChannelBACK WINDOW CENTER CHANNEL [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64833-04010 |
US $7.28 |
||
|
64834D
|
64834D
64834-04010 Weatherstrip, Back Window Slide GlassBACK WINDOW SLIDE GLASS [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64834-04010 |
US $16.02 |
||
|
64835A
|
64835A
64835-89101
Weatherstrip, Back Window Glass, Center
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64835-89101 |
— | ||
|
64837C
|
64837C
64837-04010
Weatherstrip, Back Window Corner Glass
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64837-04010 |
— | ||
|
64839A
|
64839A
64839-04010
Packing, Back Window
[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64839-04010 |
— | ||
|
64851
|
64851
64851-89103 Stop, Back Window Slide Glass[01.1995 - 09.2000] RZN161,171,VZN160,170 |
64851-89103 |
US $3.84 |
||
|
64883
|
64883
64881-04010 Frame, Back WindowBACK WINDOW [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64881-04010 |
US $22.86 |
||
|
64885A
|
64885A
64885-04010 Channel, Back Window Glass, RhBACK WINDOW GLASS, RH [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64885-04010 |
US $10.63 |
||
|
64886
|
64886
64886-04010 Channel, Back Window Glass, LhBACK WINDOW GLASS, LH [01.1995 - 09.2000] RZN161,171,VZN160,170 |
64886-04010 |
US $10.63 |
||
|
69370A
|
69370A
69370-35010 Lock Assy, Back Window[01.1995 - 09.2000] RZN161,171,VZN160,170 |
69370-35010 |
from US $26.03 |
||
|
69374
|
69374
69374-89103 Catch, Back Window Lock[01.1995 - 09.2000] RZN161,171,VZN160,170 |
69374-89103 |
from US $8.21 |
||
|
69375A
|
69375A
69375-89103 Retainer, Back Window Lock[01.1995 - 09.2000] RZN161,171,VZN160,170 |
69375-89103 |
US $10.13 |
||
|
69376B
|
69376B
69376-89103 Packing, Back Window Lock[01.1995 - 09.2000] RZN161,171,VZN160,170 |
69376-89103 |
US $3.67 |
||
|
9008011225
|
9008011225
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9008011231
|
9008011231
90080-11231
New Genuine Part
|
90080-11231 |
— | ||
|
9015940143
|
9015940143
90159-40143 Foot Rest Screw |
90159-40143 |
US $0.96 |
||
|
9016140013
|
9016140013
90161-40013 SCREW |
90161-40013 |
US $1.93 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.78 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9054104007
|
9054104007
90541-04007 Cushion(For Glove Compartment) |
90541-04007 |
US $3.93 |
||
|
9095001882
|
9095001882
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9331915020
|
9331915020
93319-15020 SCREW |
93319-15020 |
from US $1.89 |
||
|
9353024020
|
9353024020
93530-24020 New Genuine Part |
93530-24020 |
US $2.18 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
