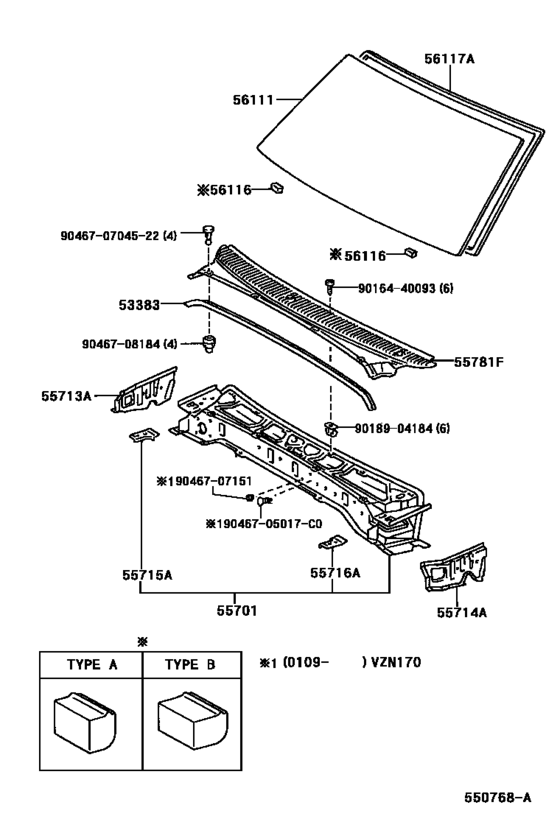

Cowl Panel & Windshield Glass ([01.1995 - ] (9501- )) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-AD010
Seal, Hood To Cowl Top
[09.2000 -] VZN170..DCB; RZN161,171,VZN170..RCB,XTR COLD AREA PACKAGE |
53383-AD010 |
— | ||
|
55701
|
55701
55700-04240
Panel Sub-Assy, Cowl
[09.2000 - 09.2001] VZN170 |
55700-04240 |
— | ||
|
55701
|
55701
55700-04290
Panel Sub-Assy, Cowl
[09.2001 -] RZN161,171,VZN170 |
55700-04290 |
— | ||
| replacement | |||||
|
55701
|
55701
55700-04240
Panel Sub-Assy, Cowl
[09.2001 -] RZN161,171,VZN170 |
55700-04240 |
— | ||
|
55713A
|
55713A
55713-35011
Panel, Cowl Top Side, Rh
[09.2000 - 09.2004] RZN161,171,VZN170 |
55713-35011 |
— | ||
|
55714A
|
55714A
55714-35011
Panel, Cowl Top Side, Lh
[09.2000 - 09.2004] RZN161,171,VZN170 |
55714-35011 |
— | ||
|
55715A
|
55715A
55715-35010 Brace, Cowl Top To Apron, Rh[09.2000 -] RZN161,171,VZN170 |
55715-35010 |
US $9.03 |
||
|
55716A
|
55716A
55716-35010 Brace, Cowl Top To Apron, Lh[09.2000 -] RZN161,171,VZN170 |
55716-35010 |
US $9.03 |
||
|
55781F
|
55781F
55708-04030
Louver, Cowl Top Ventilator
[09.2000 -] RZN161,171,VZN170 |
55708-04030 |
— | ||
|
55781F
|
55781F
55708-04040
Louver, Cowl Top Ventilator
[09.2000 -] RZN161,171,VZN170 COLD AREA PACKAGE |
55708-04040 |
— | ||
|
56111
|
56111
56111-04050
Glass, Windshield
[09.2000 - 09.2003] RZN161,171,VZN170 *LAM,T=4.76,GREEN |
56111-04050 |
— | ||
|
56111
|
56111
56111-04090
Glass, Windshield
[09.2003 -] RZN161,171,VZN170 *HSEAL,T=4.76,GREEN |
56111-04090 |
— | ||
|
56116
|
56116
56116-24010 Spacer, Windshield Glass[09.2000 -] RZN161,171,VZN170 TYPE A:REFER TO ILLUSTRATION |
56116-24010 |
from US $3.68 |
||
|
56116
|
56116
56116-35030
Spacer, Windshield Glass
[09.2000 -] RZN161,171,VZN170 TYPE B:REFER TO ILLUSTRATION |
56116-35030 |
— | ||
|
56117A
|
56117A
56117-35020 Dam, Window Glass Adhesive[09.2000 -] RZN161,171,VZN170 |
56117-35020 |
from US $20.97 |
||
|
9016440093
|
9016440093
90164-40093 SCREW, BINDING |
90164-40093 |
from US $0.74 |
||
|
9018904184
|
9018904184
90189-04184 GROMMET SCREW |
90189-04184 |
US $2.08 |
||
|
9046705017C0
|
9046705017C0
90467-05017-C0 Clip, Door Glass Weatherstrip(For Rear Door) |
90467-05017-C0 |
US $1.92 |
||
|
9046707151
|
9046707151
90467-07151 Clip(For Luggage Compartment Trim Inner Cover) |
90467-07151 |
US $1.89 |
||
|
9046708184
|
9046708184
90467-08184 Clip, Cowl Top Ventilator Louver |
90467-08184 |
US $2.08 |
||
|
904670704522
|
904670704522
90467-07045-22 Clip (For Center Lower Garnish) |
90467-07045-22 |
from US $2.56 |
||
