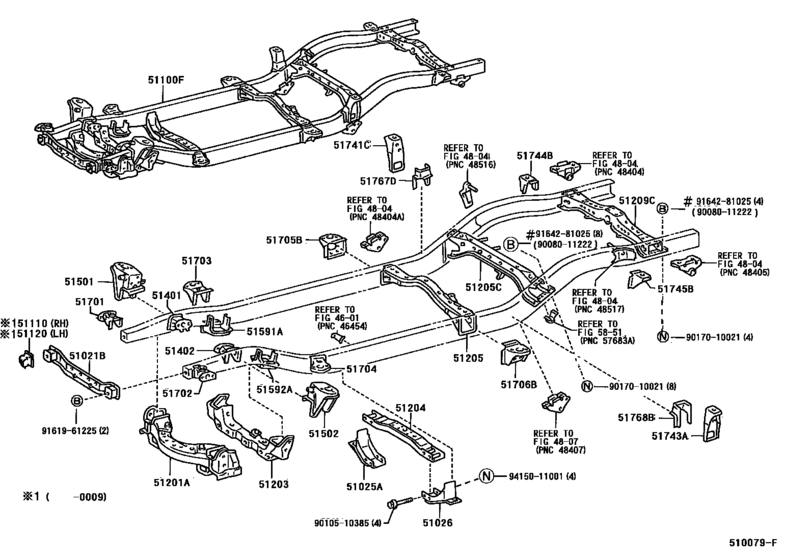

Frame ([01.1995 - ] (9501- )RZN171,VZN170) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51021B
|
51021B
51021-35060
Crossmember Sub-Assy, Frame Auxiliary
[09.2000 -] RZN161,171,VZN170 |
51021-35060 |
— | ||
|
51025A
|
51025A
51025-04010
Bracket Sub-Assy, Frame No.3 Cross Member, Rh
[09.2000 -] RZN161,171,VZN170 |
51025-04010 |
— | ||
|
51026
|
51026
51026-04010
Bracket Sub-Assy, Frame No.3 Cross Member, Lh
[09.2000 -] RZN161,171,VZN170 |
51026-04010 |
— | ||
|
51100F
|
51100F
51001-04340
Frame Sub-Assy
[09.2000 -] VZN170..DCB |
51001-04340 |
— | ||
|
51201A
|
51201A
51201-04010
Crossmember Sub-Assy, Frame, Front
[09.2000 -] RZN161,171,VZN170 |
51201-04010 |
— | ||
|
51203
|
51203
51202-04010
Crossmember Sub-Assy, Frame, No.2
[09.2000 -] RZN161,171,VZN170 |
51202-04010 |
— | ||
|
51204
|
51204
51203-04011
Crossmember Sub-Assy, Frame, No.3
[09.2000 -] RZN161,171,VZN170 |
51203-04011 |
— | ||
|
51205
|
51205
51204-04040
Crossmember Sub-Assy, Frame, No.4
[09.2000 -] RZN171,VZN170 |
51204-04040 |
— | ||
|
51205C
|
51205C
51205-04020
Crossmember Sub-Assy, Frame, No.5
[09.2000 -] RZN161,171,VZN170 |
51205-04020 |
— | ||
|
51209C
|
51209C
51209-04010
Crossmember Sub-Assy, Frame, Rear
[09.2000 -] RZN161,171,VZN170 |
51209-04010 |
— | ||
|
51401
|
51401
51401-35310
Bracket Sub-Assy, Engine Front Mounting, Rh
[09.2000 -] VZN170 |
51401-35310 |
— | ||
|
51402
|
51402
51401-35310
Bracket Sub-Assy, Engine Front Mounting, Rh
[09.2000 -] VZN170 |
51401-35310 |
— | ||
|
51501
|
51501
51501-35080
Support Sub-Assy, Suspension Arm, Rh
[09.2000 -] RZN161,171,VZN170 |
51501-35080 |
— | ||
|
51502
|
51502
51502-35080 Support Sub-Assy, Suspension Arm, LhSUSPENSION ARM, LH [09.2000 -] RZN161,171,VZN170 |
51502-35080 |
US $355.26 |
||
|
51591A
|
51591A
51591-35060 Support, Stabilizer, Rh[09.2000 -] RZN161,171,VZN170 |
51591-35060 |
US $26.64 |
||
|
51592A
|
51592A
51592-35020 Support, Stabilizer, Lh[09.2000 -] RZN161,171,VZN170 |
51592-35020 |
US $26.64 |
||
|
51701
|
51701
51701-35150
Bracket Sub-Assy, Cab Mounting, No.1 Rh
[09.2000 -] RZN161,171,VZN170 |
51701-35150 |
— | ||
|
51702
|
51702
51702-35130
Bracket Sub-Assy, Cab Mounting, No.1 Lh
[09.2000 -] RZN161,171,VZN170 |
51702-35130 |
— | ||
|
51703
|
51703
51703-35170 Bracket Sub-Assy, Cab Mounting, No.2, RhCAB MOUNTING, NO.2, RH [09.2000 -] RZN161,171,VZN170 |
51703-35170 |
US $63.77 |
||
|
51704
|
51704
51703-35170 Bracket Sub-Assy, Cab Mounting, No.2, RhCAB MOUNTING, NO.2, RH [09.2000 -] RZN161,171,VZN170 |
51703-35170 |
US $63.77 |
||
|
51705B
|
51705B
51705-35170 Bracket Sub-Assy, Cab Mounting, No.3 RhCAB MOUNTING, NO.3 RH [09.2000 -] VZN170..DCB |
51705-35170 |
US $42.66 |
||
|
51706B
|
51706B
51706-35050 Bracket Sub-Assy, Cab Mounting, No.3 LhCAB MOUNTING, NO.3 LH [09.2000 -] VZN170..DCB |
51706-35050 |
US $36.98 |
||
|
51741C
|
51741C
51742-35140 Bracket, Rear Body Mounting, No.2 RhREAR BODY MOUNTING, NO.2 RH [09.2000 -] VZN170..DCB |
51742-35140 |
US $28.68 |
||
|
51743A
|
51743A
51743-35130 Bracket, Rear Body Mounting, No.2 LhREAR BODY MOUNTING, NO.2 LH [09.2000 -] VZN170..DCB |
51743-35130 |
US $39.17 |
||
|
51744B
|
51744B
51744-35020 Bracket, Rear Body Mounting, No.3 RhREAR BODY MOUNTING, NO.3 RH [09.2000 -] RZN161,171,VZN170 |
51744-35020 |
US $15.72 |
||
|
51745B
|
51745B
51745-35010 Bracket, Rear Body Mounting, No.3 LhREAR BODY MOUNTING, NO.3 LH [09.2000 -] RZN161,171,VZN170 |
51745-35010 |
US $15.72 |
||
|
51767D
|
51767D
51767-35070 Reinforcement, Body Support Bracket, RhBODY SUPPORT BRACKET, RH [09.2000 -] VZN170..DCB |
51767-35070 |
US $12.23 |
||
|
51768B
|
51768B
51767-35070 Reinforcement, Body Support Bracket, RhBODY SUPPORT BRACKET, RH [09.2000 -] VZN170..DCB |
51767-35070 |
US $12.23 |
||
|
9008011222
|
9008011222
90080-11222
New Genuine Part
|
90080-11222 |
— | ||
|
9010510385
|
9010510385
90105-10385 New Genuine Part |
90105-10385 |
US $4.02 |
||
|
9017010021
|
9017010021
90170-10021 Nut(For Steering Center Arm) |
90170-10021 |
from US $0.74 |
||
|
9161961225
|
9161961225
91619-61225
Bolt, Hexagon(For Rear Caliper)
|
91619-61225 |
— | ||
| replacement | |||||
|
9161961225
|
9161961225
91619-B1225 Bolt, Hexagon(For Rear Caliper) |
91619-B1225 |
from US $2.56 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9415011001
|
9415011001
94150-11001 NUT |
94150-11001 |
US $1.28 |
||
