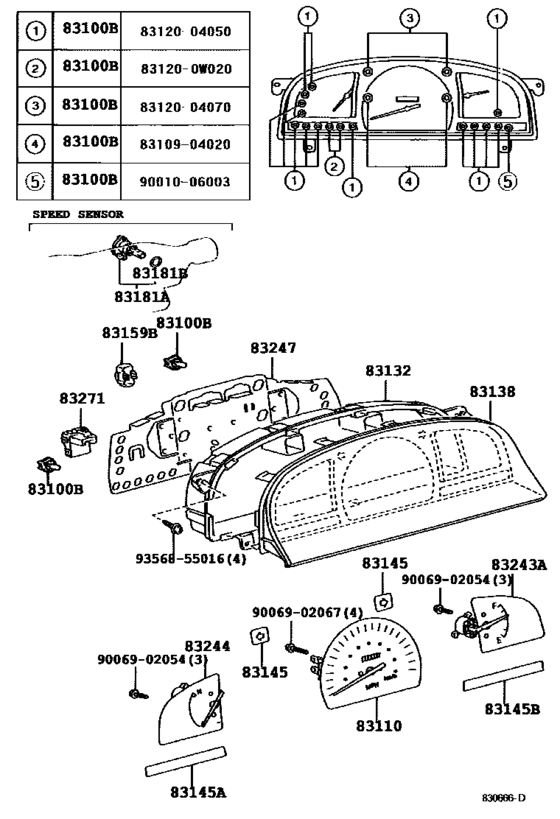

Meter ([09.2000 - ] W/O(TACHOMETER) (0009- )) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-04020
Bulb, Combination Meter, No.1
[09.2000 - 09.2001] RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
83109-04020 |
— | ||
|
83100B
|
83100B
83120-04050 Bulb, Combination Meter, No.1[09.2000 - 09.2001] RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
83120-04050 |
US $5.82 |
||
|
83100B
|
83100B
83120-04070 Bulb, Combination Meter, No.1COMBINATION METER, NO.1 [09.2000 - 09.2001] RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
83120-04070 |
US $5.82 |
||
|
83100B
|
83100B
83120-0W020 Bulb, Combination Meter, No.1[09.2000 - 09.2001] RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
83120-0W020 |
US $5.82 |
||
|
83100B
|
83100B
90010-06003 Bulb, Combination Meter, No.1[09.2000 - 09.2001] RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
90010-06003 |
from US $1.66 |
||
|
83110
|
83110
83220-04120
Speedometer Assy
[09.2000 - 09.2004] RZN161,171,VZN170 W(TACHOMETER) |
83220-04120 |
— | ||
|
83110
|
83110
83220-04130
Speedometer Assy
[09.2000 - 09.2004] RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
83220-04130 |
— | ||
|
83110
|
83110
83220-04140
Speedometer Assy
[09.2000 - 09.2004] RZN161,171,VZN170 |
83220-04140 |
— | ||
|
83132
|
83132
83841-04060
Case, Combination Meter
[09.2000 - 05.2003] RZN161,171,VZN170 |
83841-04060 |
— | ||
|
83132
|
83132
83841-04450
Case, Combination Meter
[09.2000 - 09.2004] RZN161,171,VZN170 W(TACHOMETER) |
83841-04450 |
— | ||
|
83132
|
83132
83841-04850
Case, Combination Meter
[09.2003 - 09.2004] VZN170 |
83841-04850 |
— | ||
|
83138
|
83138
83852-04050
Glass, Speedometer
[09.2000 - 09.2004] RZN161,171,VZN170 |
83852-04050 |
— | ||
|
83138
|
83138
83852-04140
Glass, Speedometer
[09.2000 - 09.2004] RZN161,171,VZN170..4FC W(TACHOMETER) |
83852-04140 |
— | ||
|
83138
|
83138
83852-04850
Glass, Speedometer
[09.2003 - 09.2004] VZN170..4FC W(TACHOMETER & VSC) |
83852-04850 |
— | ||
|
83145
|
83145
83145-0W010 Lens, Meter, No.1[09.2000 - 09.2004] RZN161,171,VZN170 |
83145-0W010 |
US $7.72 |
||
|
83145
|
83145
83831-04100
Lens, Meter, No.1
[09.2000 - 09.2004] RZN161,171,VZN170 W(TACHOMETER) |
83831-04100 |
— | ||
|
83145A
|
83145A
83145-04110 Lens, Meter, No.2METER, NO.2 [09.2000 - 09.2004] RZN161,171,VZN170 |
83145-04110 |
US $7.72 |
||
|
83145A
|
83145A
83831-04160
Lens, Meter, No.2
[09.2000 - 09.2004] RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
83831-04160 |
— | ||
|
83145A
|
83145A
83833-04100
Lens, Meter, No.2
[09.2000 - 09.2004] RZN161,171,VZN170 W(TACHOMETER) |
83833-04100 |
— | ||
|
83145B
|
83145B
83831-04450
Lens, Meter, No.3
[09.2000 - 09.2004] RZN161,171,VZN170 W(TACHOMETER) |
83831-04450 |
— | ||
|
83145B
|
83145B
83831-04530
Lens, Meter, No.3
[09.2000 - 09.2004] RZN161,171,VZN170 |
83831-04530 |
— | ||
|
83159B
|
83159B
83159-22170 Switch, Meter, No.1[09.2000 - 09.2004] RZN161,171,VZN170 |
83159-22170 |
US $54.69 |
||
|
83181A
|
83181A
83181-12020 Sensor, Speedometer[09.2000 - 09.2004] RZN161,171,VZN170 |
83181-12020 |
from US $169.48 |
||
|
83181B
|
83181B
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[09.2000 -] RZN161,171,VZN170 |
96711-24030 |
from US $2.32 |
||
|
83243A
|
83243A
83882-04450
Gauge Sub-Assy, Fuel Receiver
[09.2000 - 09.2004] RZN161,171,VZN170 W(TACHOMETER) |
83882-04450 |
— | ||
|
83243A
|
83243A
83882-04530
Gauge Sub-Assy, Fuel Receiver
[09.2000 - 09.2004] RZN161,171,VZN170 |
83882-04530 |
— | ||
|
83244
|
83244
83883-04470
Gauge Sub-Assy, Water Temperature Receiver
[09.2000 - 09.2004] RZN161,171,VZN170..4FC W(TACHOMETER) |
83883-04470 |
— | ||
|
83244
|
83244
83883-04530
Gauge Sub-Assy, Water Temperature Receiver
[09.2000 - 09.2004] RZN161,171,VZN170 |
83883-04530 |
— | ||
|
83247
|
83247
83861-04060
Plate, Meter Circuit
[09.2000 - 05.2003] RZN161,171,VZN170 |
83861-04060 |
— | ||
|
83247
|
83247
83861-04450
Plate, Meter Circuit
[09.2000 - 05.2003] RZN161,171,VZN170 W(TACHOMETER) |
83861-04450 |
— | ||
|
83247
|
83247
83861-04740
Plate, Meter Circuit
[05.2003 - 09.2004] RZN161,171,VZN170 |
83861-04740 |
— | ||
|
83247
|
83247
83861-04850
Plate, Meter Circuit
[09.2003 - 09.2004] VZN170 W(TACHOMETER) |
83861-04850 |
— | ||
|
83271
|
83271
83271-04020
Relay, Meter Control
[09.2000 - 09.2004] RZN161,171,VZN170 |
83271-04020 |
— | ||
|
9006902054
|
9006902054
90069-02054 New Genuine Part |
90069-02054 |
US $1.31 |
||
|
9006902067
|
9006902067
90069-02067
New Genuine Part
|
90069-02067 |
— | ||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
