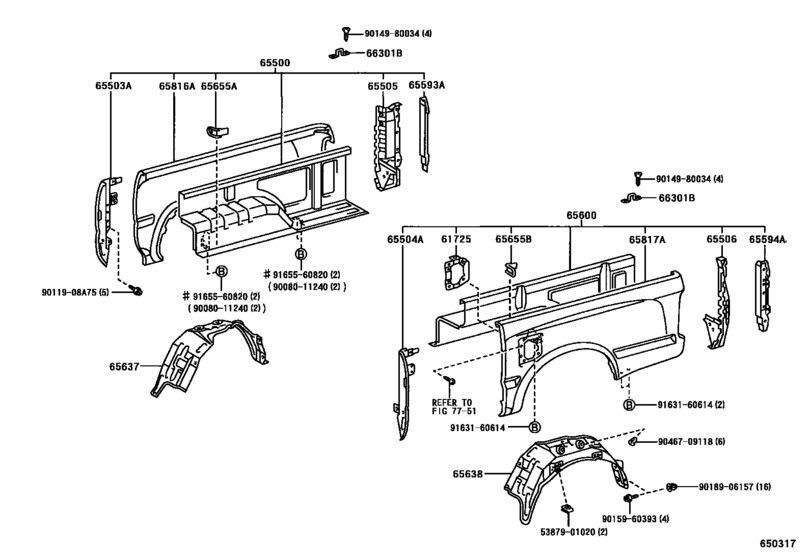

Rear Body Side Panel ([09.2000 - ] (0009- )DCB) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61725
|
61725
61709-04020 Box, Fuel InletFUEL INLET [09.2000 -] RZN161,171,VZN170 |
61709-04020 |
US $17.33 |
||
|
65500
|
65500
65500-04310
Panel Assy, Rear Body Side, Rh
[09.2000 - 09.2004] VZN170..DCB |
65500-04310 |
— | ||
|
65503A
|
65503A
65503-04030
Post Sub-Assy, Side Panel Front End, Rh
[09.2000 -] VZN170..DCB |
65503-04030 |
— | ||
|
65504A
|
65504A
65504-04030
Post Sub-Assy, Side Panel Front End, Lh
[09.2000 -] VZN170..DCB |
65504-04030 |
— | ||
|
65505
|
65505
65505-04060
Post Sub-Assy, Side Panel Rear End, Rh
[09.2000 -] VZN170..DCB |
65505-04060 |
— | ||
|
65506
|
65506
65506-04060
Post Sub-Assy, Side Panel Rear End, Lh
[09.2000 -] VZN170..DCB |
65506-04060 |
— | ||
|
65593A
|
65593A
65593-04010 Plate, Side Panel Rear End Post Inside, RhSIDE PANEL REAR END POST INSIDE, RH [09.2000 -] RZN161,171,VZN170 |
65593-04010 |
US $30.87 |
||
|
65594A
|
65594A
65594-04010 Plate, Side Panel Rear End Post Inside, LhSIDE PANEL REAR END POST INSIDE, LH [09.2000 -] RZN161,171,VZN170 |
65594-04010 |
US $30.87 |
||
|
65600
|
65600
65600-04270
Panel Assy, Rear Body Side, Lh
[09.2000 - 09.2004] VZN170..DCB |
65600-04270 |
— | ||
|
65637
|
65637
65637-04020
Liner, Rear Wheel House, Rh
[09.2000 -] RZN161,171,VZN170 |
65637-04020 |
— | ||
|
65638
|
65638
65638-04020
Liner, Rear Wheel House, Lh
[09.2000 -] RZN161,171,VZN170 |
65638-04020 |
— | ||
|
65655A
|
65655A
65655-04010
Bracket, Wheel House Seal, Front
[09.2000 -] RZN161,171,VZN170 |
65655-04010 |
— | ||
|
65655B
|
65655B
65655-04010
Bracket, Wheel House Seal, Front
[09.2000 -] RZN161,171,VZN170 |
65655-04010 |
— | ||
|
65816A
|
65816A
65816-04070
Panel, Rear Body Side, Rh
[09.2000 -] VZN170..DCB |
65816-04070 |
— | ||
|
65817A
|
65817A
65817-04070
Panel, Rear Body Side, Lh
[09.2000 -] VZN170..DCB |
65817-04070 |
— | ||
|
66301B
|
66301B
66312-35010 Hook Sub-Assy, Rope[09.2000 - 09.2004] RZN161,171,VZN170 |
66312-35010 |
from US $12.16 |
||
|
9011908A75
|
9011908A75
90119-08A75 New Genuine Part |
90119-08A75 |
US $1.75 |
||
|
5387901020
|
5387901020
53879-01020
Retainer, Front Fender Liner
|
53879-01020 |
— | ||
|
9008011240
|
9008011240
90080-11240 New Genuine Part |
90080-11240 |
US $1.46 |
||
|
9014980034
|
9014980034
90149-80034 SCREW |
90149-80034 |
US $1.76 |
||
|
9015960393
|
9015960393
90159-60393 SCREW |
90159-60393 |
from US $0.80 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9046709118
|
9046709118
90467-09118 Clip(For Hood Insulator) |
90467-09118 |
US $3.04 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
