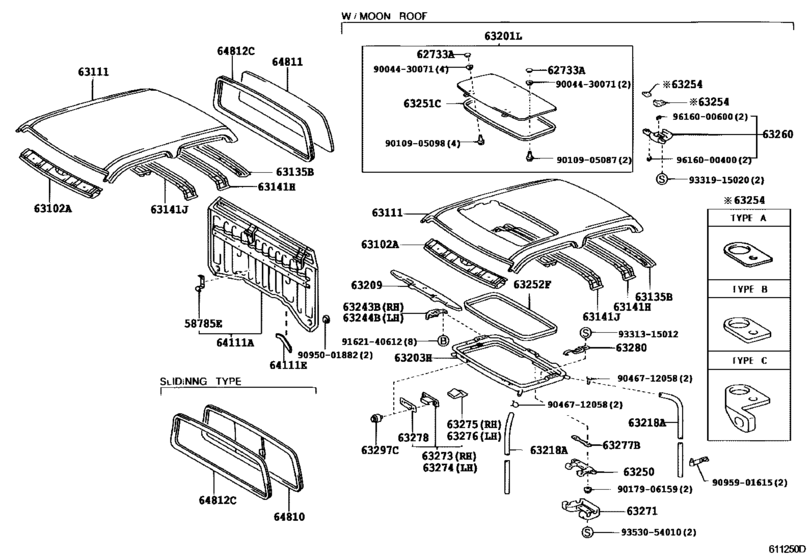

Roof Panel & Back Panel ([09.2000 - ] (0009- )DCB) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58785E
|
58785E
58785-89106 Bracket, Tool Bag Band[09.2000 -] VZN170..DCB |
58785-89106 |
US $6.70 |
||
|
62733A
|
62733A
62733-87201 Retainer, Quarter Or Side Window Hinge[09.2000 - 09.2003] VZN170..DCB |
62733-87201 |
US $5.60 |
||
|
63102A
|
63102A
63102-04030
Panel Sub-Assy, Windshield Header
[09.2001 - 09.2003] VZN170..DCB W(ROOF RACK) |
63102-04030 |
— | ||
|
63102A
|
63102A
63102-04050
Panel Sub-Assy, Windshield Header
[09.2000 - 09.2004] RZN161,171,VZN170 |
63102-04050 |
— | ||
|
63111
|
63111
63111-04030
Panel, Roof
[09.2000 - 09.2004] VZN170..DCB |
63111-04030 |
— | ||
|
63111
|
63111
63111-04070
Panel, Roof
[09.2000 - 09.2003] VZN170..DCB W(MOON ROOF) |
63111-04070 |
— | ||
|
63111
|
63111
63111-04080
Panel, Roof
[09.2001 - 09.2003] VZN170..DCB W(ROOF RACK) |
63111-04080 |
— | ||
|
63135B
|
63135B
63135-04022
Panel, Back Window, Upper Inner
[09.2000 - 09.2004] RZN171,VZN170 |
63135-04022 |
— | ||
|
63141H
|
63141H
63141-04010
Reinforcement, Roof Panel, Center
[09.2003 - 09.2004] VZN170..DCB |
63141-04010 |
— | ||
| replacement | |||||
|
63141H
|
63141H
63141-04900
Reinforcement, Roof Panel, Center
[09.2003 - 09.2004] VZN170..DCB |
63141-04900 |
— | ||
|
63141H
|
63141H
63141-04900
Reinforcement, Roof Panel, Center
[09.2000 - 09.2003] VZN170..DCB |
63141-04900 |
— | ||
|
63141J
|
63141J
63141-04900
Reinforcement, Roof Panel, Center
[09.2000 - 09.2004] VZN170..DCB |
63141-04900 |
— | ||
|
63201L
|
63201L
63201-35070 Glass Sub-Assy, Removable RoofREMOVABLE ROOF [09.2000 - 09.2003] VZN170..DCB |
63201-35070 |
US $869.23 |
||
|
63203H
|
63203H
63203-35030 Housing Sub-Assy, Removable Roof[09.2000 - 09.2003] VZN170..DCB |
63203-35030 |
US $305.76 |
||
|
63209
|
63209
63209-89102
Panel Sub-Assy, Roof Wind Deflector
[09.2000 - 09.2003] VZN170..DCB |
63209-89102 |
— | ||
|
63218A
|
63218A
63249-35120 Hose(For Sliding Roof Or Removable Roof Drain)[09.2000 - 09.2003] VZN170..DCB L=1530,FRONT |
63249-35120 |
US $18.64 |
||
|
63218A
|
63218A
63249-35130 Hose(For Sliding Roof Or Removable Roof Drain)[09.2000 - 09.2003] VZN170..DCB L=1315,REAR |
63249-35130 |
US $16.45 |
||
|
63243B
|
63243B
63243-35050 Bracket, Removable Roof Housing Side Mounting, RhREMOVABLE ROOF HOUSING SIDE MOUNTING, RH [09.2000 - 09.2003] VZN170..DCB |
63243-35050 |
US $8.15 |
||
|
63244B
|
63244B
63243-35050 Bracket, Removable Roof Housing Side Mounting, RhREMOVABLE ROOF HOUSING SIDE MOUNTING, RH [09.2000 - 09.2003] VZN170..DCB |
63243-35050 |
US $8.15 |
||
|
63250
|
63250
63250-17011
Base Assy, Removable Roof Lock
[09.2000 - 09.2003] RZN171,VZN170 |
63250-17011 |
— | ||
|
63251C
|
63251C
63251-35060 Weatherstrip, Removable RoofREMOVABLE ROOF [09.2000 - 12.2002] VZN170..DCB |
63251-35060 |
US $84.45 |
||
|
63252F
|
63252F
63252-35030 Weatherstrip, Removable Roof, InnerREMOVABLE ROOF, INNER [09.2000 - 09.2003] VZN170..DCB |
63252-35030 |
US $84.45 |
||
|
63254
|
63254
63254-35010
Holder, Removable Roof Glass, Inner Rear
[09.2000 - 09.2003] RZN171,VZN170 TYPE A:REFER ILLUST. |
63254-35010 |
— | ||
|
63254
|
63254
63254-89103
Holder, Removable Roof Glass, Inner Rear
[09.2000 - 09.2003] RZN171,VZN170 TYPE B:REFER ILLUST. |
63254-89103 |
— | ||
|
63254
|
63254
63254-89104 Holder, Removable Roof Glass, Inner Rear[09.2000 - 09.2003] RZN171,VZN170 TYPE C:REFER ILLUST. |
63254-89104 |
US $16.31 |
||
|
63260
|
63260
63260-35040-B2 Handle Assy, Removable Roof LockREMOVABLE ROOF LOCK [09.2000 - 09.2003] RZN171,VZN170 MD.CHARCOAL,TRIM1# |
63260-35040-B2 |
US $138.32 |
||
|
63260
|
63260
63260-35040-E0
Handle Assy, Removable Roof Lock
[09.2000 - 09.2003] RZN171,VZN170 MD.OAK,TRIM4# |
63260-35040-E0 |
— | ||
|
63271
|
63271
63271-16010-B3 Garnish, Removable Roof LockREMOVABLE ROOF LOCK [09.2000 - 09.2003] RZN171,VZN170 MD.CHARCOAL,TRIM1# |
63271-16010-B3 |
US $27.66 |
||
|
63271
|
63271
63271-16010-E0
Garnish, Removable Roof Lock
[09.2000 - 09.2003] RZN171,VZN170 MD.OAK,TRIM4# |
63271-16010-E0 |
— | ||
|
63273
|
63273
63273-17040
Case, Removable Roof Hinge, Rh
[09.2000 - 09.2003] RZN171,VZN170 |
63273-17040 |
— | ||
|
63274
|
63274
63274-17040
Case, Removable Roof Hinge, Lh
[09.2000 - 09.2003] RZN171,VZN170 |
63274-17040 |
— | ||
|
63275
|
63275
63275-17010
Holder, Removable Roof Hinge, Rh
[09.2000 - 09.2003] RZN171,VZN170 |
63275-17010 |
— | ||
|
63276
|
63276
63276-17010
Holder, Removable Roof Hinge, Lh
[09.2000 - 09.2003] RZN171,VZN170 |
63276-17010 |
— | ||
|
63277B
|
63277B
63277-89101
Spacer, Removable Roof Lock Base
[09.2000 - 09.2003] RZN171,VZN170 |
63277-89101 |
— | ||
|
63278
|
63278
63278-12010
Seal, Removable Roof Hinge Case
[09.2000 - 09.2003] RZN171,VZN170 |
63278-12010 |
— | ||
|
63280
|
63280
63280-89101 Catch Assy, Removable Roof Auxiliary, Rh[09.2000 - 09.2003] RZN171,VZN170 |
63280-89101 |
US $16.31 |
||
|
63297C
|
63297C
63297-12010
Bolt, Removable Roof Hinge Case
[09.2000 - 09.2003] RZN171,VZN170 |
63297-12010 |
— | ||
|
64111A
|
64111A
64101-04150
Panel, Back
[09.2000 -] VZN170..DCB |
64101-04150 |
— | ||
|
64111E
|
64111E
58279-04010
Protector, Fuel Hose
[02.2003 -] VZN170..DCB |
58279-04010 |
— | ||
|
64810
|
64810
64810-04040
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GREEN |
64810-04040 |
— | ||
| replacement | |||||
|
64810
|
64810
64810-04041
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GREEN |
64810-04041 |
— | ||
|
64810
|
64810
64810-04041
Window Assy, Back
[08.2001 - 09.2003] RZN161,171,VZN170 *TEM,T=3.4,GREEN |
64810-04041 |
— | ||
|
64810
|
64810
64810-04050
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64810-04050 |
— | ||
| replacement | |||||
|
64810
|
64810
64810-04051
Window Assy, Back
[09.2000 - 08.2001] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64810-04051 |
— | ||
|
64810
|
64810
64810-04051
Window Assy, Back
[08.2001 -] RZN161,171,VZN170 *TEM,T=3.4,GRAY |
64810-04051 |
— | ||
|
64810
|
64810
64810-04100
Window Assy, Back
[09.2003 -] RZN161,171,VZN170 *TT,T=3.4,GREEN |
64810-04100 |
— | ||
|
64811
|
64811
64811-04130
Glass, Back Window
[09.2003 -] RZN161,171,VZN170 *TT,T=3.5,GREEN |
64811-04130 |
— | ||
|
64811
|
64811
64811-AD020 Glass, Back WindowBACK WINDOW [09.2000 - 09.2003] RZN161,171,VZN170 *TEM,T=3.5,BLUE |
64811-AD020 |
US $407.68 |
||
|
64812C
|
64812C
64812-04040 Weatherstrip, Back Window GlassBACK WINDOW GLASS [09.2000 -] RZN161,171,VZN170 W(SLIDING TYPE BACK WINDOW) |
64812-04040 |
US $82.99 |
||
|
64812C
|
64812C
64812-AD010 Weatherstrip, Back Window GlassBACK WINDOW GLASS [09.2000 -] RZN161,171,VZN170 |
64812-AD010 |
US $87.36 |
||
|
9004430071
|
9004430071
90044-30071 New Genuine Part |
90044-30071 |
US $1.92 |
||
|
9010905087
|
9010905087
90109-05087 New Genuine Part |
90109-05087 |
US $1.46 |
||
|
9010905098
|
9010905098
90109-05098 New Genuine Part |
90109-05098 |
US $1.46 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.74 |
||
|
9095001882
|
9095001882
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095901615
|
9095901615
90959-01615 New Genuine Part |
90959-01615 |
US $3.93 |
||
|
9162140612
|
9162140612
91621-40612 BOLT W-WASHER |
91621-40612 |
from US $0.76 |
||
|
9331315012
|
9331315012
93313-15012 New Genuine Part |
93313-15012 |
US $1.05 |
||
|
9331915020
|
9331915020
93319-15020 SCREW |
93319-15020 |
from US $1.89 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.82 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
