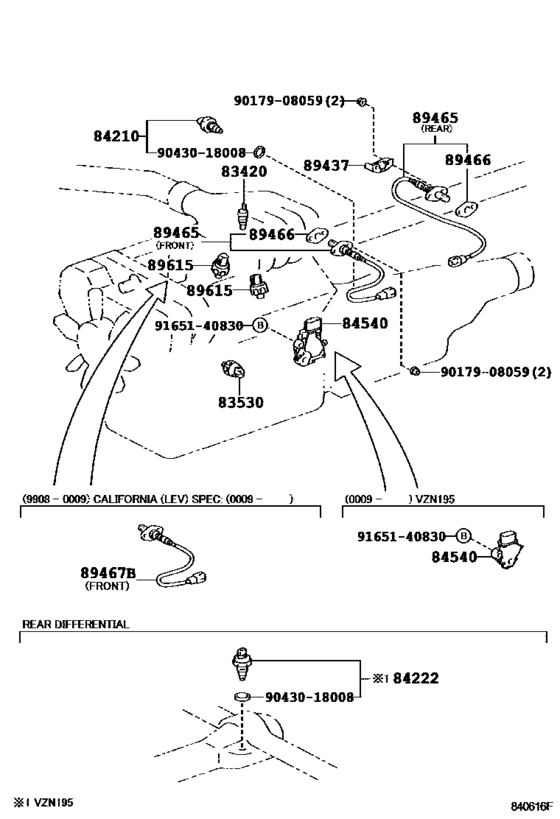

Switch & Relay & Computer ([01.1995 - 09.2004] ENGINE & TRANSMISSION (9501-0409)VZN150,195) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN195
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[09.2000 -] VZN150,195 |
83420-16020 |
US $56.70 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[09.2000 -] RZN140,150,19#,VZN150,195 |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.2000 -] RZN140,150,19#,VZN150,195 |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[09.2000 -] RZN140,150,19#,VZN150,195 |
83530-0E010 |
from US $51.25 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[09.2000 - 09.2004] VZN195 |
84222-12010 |
from US $49.25 |
||
|
84540
|
84540
84540-51010 Switch Assy, Neutral Start[09.2000 - 09.2004] RZN19#,VZN195 |
84540-51010 |
from US $139.48 |
||
|
89437
|
89437
89437-60030 Cover, Sensor[09.2000 -] RZN140,150..4FC;RZN196,VZN195..DCB; RZN140,150,VZN150..5F;RZN19#,VZN195..RCB,XTR CALIFORNIA(LEV) SPEC |
89437-60030 |
US $14.15 |
||
|
89465
|
89465
89465-09340
Sensor, Oxygen
[09.2000 - 09.2002] VZN150,195 REAR |
89465-09340 |
— | ||
|
89465
|
89465
89465-09370 Sensor, OxygenOXYGEN [09.2002 - 09.2004] VZN150,195 REAR |
89465-09370 |
US $127.25 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[09.2000 -] RZN140,150,19#,VZN150,195 |
89466-20020 |
from US $13.88 |
||
|
89467B
|
89467B
89467-35060 Sensor, Air Fuel RatioAIR FUEL RATIO [09.2000 -] VZN195 FRONT |
89467-35060 |
US $195.90 |
||
|
89615
|
89615
89615-12040 Sensor, Knock Control[09.2000 -] VZN150,195 MATSUSHITA |
89615-12040 |
from US $165.59 |
||
|
89615
|
89615
89615-12050
Sensor, Knock Control
[09.2000 -] VZN150,195 DENSO |
89615-12050 |
— | ||
| replacement | |||||
|
89615
|
89615
89615-12090 Sensor, Knock Control[09.2000 -] VZN150,195 DENSO |
89615-12090 |
from US $137.81 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
