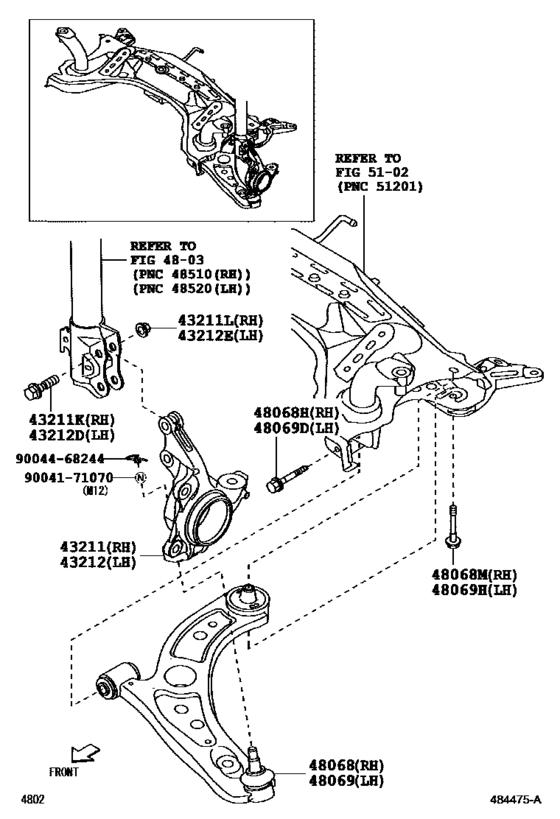

Front Axle Arm & Steering Knuckle ([11.2016 - ] (1611- )) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- G
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- ROOMY
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-B1060 Knuckle, Steering, Rh[11.2016 -] M900,910 |
43211-B1060 |
US $187.20 |
||
|
43211K
|
43211K
90041-01701 Bolt (For Steering Knuckle Rh)[11.2016 -] M900,910 Ｍ１２，Ｌ＝６０ |
90041-01701 |
US $5.73 |
||
|
43211L
|
43211L
90041-70393 Nut (For Steering Knuckle Rh)[11.2016 -] M900,910 Ｍ１２ |
90041-70393 |
US $3.76 |
||
|
43212
|
43212
43212-B1060 Knuckle, Steering, Lh[11.2016 -] M900,910 |
43212-B1060 |
US $187.20 |
||
|
43212D
|
43212D
90041-01701 Bolt (For Steering Knuckle Rh)[11.2016 -] M900,910 Ｍ１２，Ｌ＝６０ |
90041-01701 |
US $5.73 |
||
|
43212E
|
43212E
90041-70393 Nut (For Steering Knuckle Rh)[11.2016 -] M900,910 Ｍ１２ |
90041-70393 |
US $3.76 |
||
|
48068
|
48068
48068-B1120 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[11.2016 -] M900,910 |
48068-B1120 |
US $163.20 |
||
|
48068H
|
48068H
90041-05296 Bolt(For Front Suspension Lower Arm No.1 Rh)[11.2016 -] M900,910 Ｍ１２，Ｌ＝８６ |
90041-05296 |
US $7.88 |
||
|
48068M
|
48068M
90041-05482 Bolt(For Front Suspension Lower Arm No.2 Rh)[11.2016 -] M900,910 Ｍ１２，Ｌ＝９７．５ |
90041-05482 |
US $8.42 |
||
|
48069
|
48069
48069-B1120 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[11.2016 -] M900,910 |
48069-B1120 |
US $163.20 |
||
|
48069D
|
48069D
90041-05296 Bolt(For Front Suspension Lower Arm No.1 Rh)[11.2016 -] M900,910 Ｍ１２，Ｌ＝８６ |
90041-05296 |
US $7.88 |
||
|
48069H
|
48069H
90041-05482 Bolt(For Front Suspension Lower Arm No.2 Rh)[11.2016 -] M900,910 Ｍ１２，Ｌ＝９７．５ |
90041-05482 |
US $8.42 |
||
|
9004171070
|
9004171070
90041-71070 New Genuine Part |
90041-71070 |
US $3.76 |
||
|
9004468244
|
9004468244
90044-68244 New Genuine Part |
90044-68244 |
US $2.33 |
