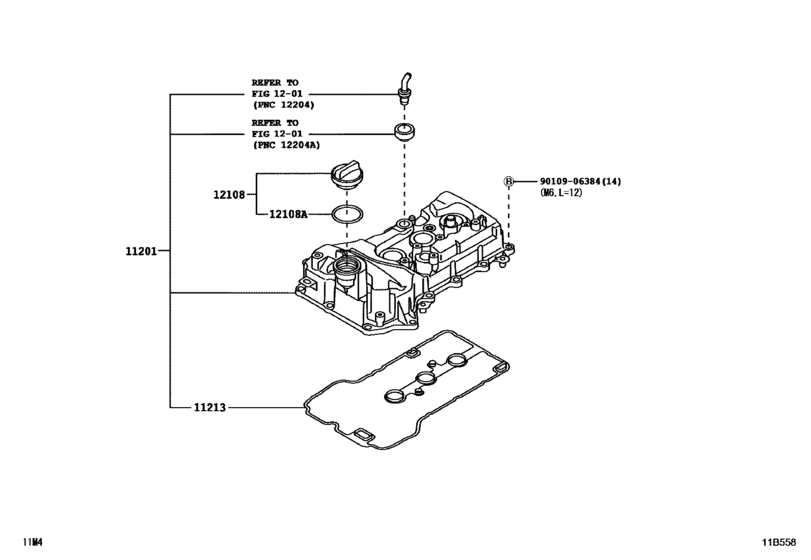

Cylinder Head ([11.2016 - ] ｼﾘﾝﾀﾞﾍｯﾄﾞｶﾊﾞｰ (1611- )1KRVET) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- G
- ENGINE
- 1KRVET
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- ROOMY
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11201
|
11201
11210-B1040 Cover Sub-Assy, Cylinder Head[11.2016 -] 1KRVET..M900 |
11210-B1040 |
US $253.34 |
||
|
11213
|
11213
11213-B1040
Gasket, Cylinder Head Cover
[11.2016 -] 1KRVET..M900 |
11213-B1040 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-B1031 GASKET CYLINDER[11.2016 -] 1KRVET..M900 |
11213-B1031 |
from US $10.41 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[11.2016 -] 1KR#..M900,910 |
12180-38010 |
from US $11.13 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[11.2016 -] 1KR#..M900,910 |
90430-35001 |
from US $1.14 |
||
|
9010906384
|
9010906384
90109-06384 Bolt(For Cylinder Head Cover) |
90109-06384 |
from US $0.74 |
||
