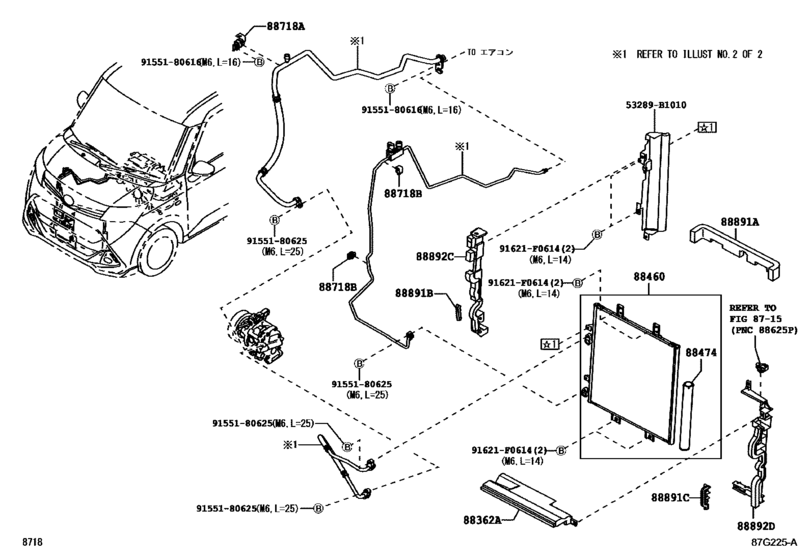

Heating & Air Conditioning - Cooler Piping ([11.2016 - ] (1611- )) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- G
- ENGINE
- 1KRVET
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- ROOMY
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-B1020 Condenser Assy, Cooler[11.2016 -] M900,910 |
88460-B1020 |
US $521.04 |
||
|
88474
|
88474
88474-B2010 Dryer, Cooler[11.2016 -] M900,910 |
88474-B2010 |
from US $66.63 |
||
|
88718A
|
88718A
88718-B1070 Clamp(For Cooler Refrigerant Pipe), No.1[11.2016 -] M900,910 |
88718-B1070 |
US $9.14 |
||
|
88718B
|
88718B
88718-13060
Clamp(For Cooler Refrigerant Pipe), No.2
[11.2016 -] M900,910 |
88718-13060 |
— | ||
|
88891A
|
88891A
88578-B1600 Packing A (For Cooler)[11.2016 -] M900,910..ROOMY |
88578-B1600 |
US $6.45 |
||
|
88891B
|
88891B
88619-B1050 Packing B (For Cooler)[11.2016 -] M900,910 |
88619-B1050 |
US $8.60 |
||
|
88891C
|
88891C
88629-B1030 Packing C (For Cooler)[11.2016 -] M900,910 |
88629-B1030 |
US $10.93 |
||
|
88892C
|
88892C
53285-B1020 Plate, Condenser, No.1[11.2016 -] M900,910 |
53285-B1020 |
US $19.82 |
||
|
88892D
|
88892D
53286-B1020 Plate, Condenser, No.2[11.2016 -] M900,910 |
53286-B1020 |
US $25.20 |
||
|
53289B1010
|
53289B1010
53289-B1010 Cover, Radiator Side Baffle |
53289-B1010 |
US $50.23 |
||
|
91621F0614
|
91621F0614
91621-F0614
BOLT WWASHER
|
91621-F0614 |
— | ||
| replacement | |||||
|
91621F0614
|
91621F0614
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
