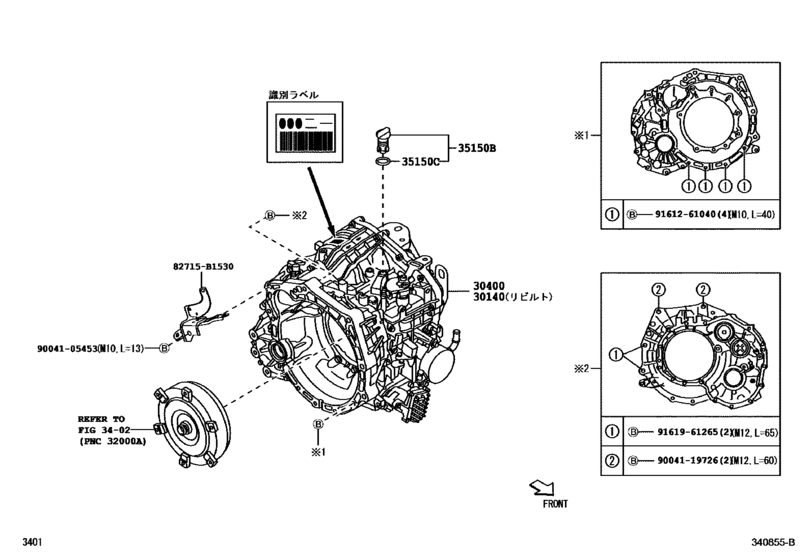

Transaxle Assy(Cvt) ([11.2016 - ] ﾄﾗﾝｽｱｸｽﾙASSY,ｼｷﾍﾞﾂﾗﾍﾞﾙ (1611- )TBO) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- G
- ENGINE
- 1KRVET
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- ROOMY
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30140
|
30140
30140-B1140 Transaxle Assy, Cvt, Rebuilt(W/o Torque Converter)[11.2016 -] M900..TBO |
30140-B1140 |
US $3,655.60 |
||
|
30400
|
30400
30400-B1140 Transaxle Assy, Continuously Variable[11.2016 -] M900..TBO |
30400-B1140 |
US $4,149.60 |
||
|
35150B
|
35150B
35150-44010 Plug(For Transmission Case)[11.2016 -] M900..TBO |
35150-44010 |
from US $6.09 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[11.2016 -] M900..TBO |
90301-09173 |
from US $1.96 |
||
|
82715B1530
|
82715B1530
82715-B1530 Bracket,wiring Harness Clamp |
82715-B1530 |
US $22.13 |
||
|
9004105453
|
9004105453
90041-05453 Plug, Transaxle Hole |
90041-05453 |
US $2.91 |
||
|
9004119726
|
9004119726
90041-19726 New Genuine Part |
90041-19726 |
US $4.30 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961265
|
9161961265
91619-61265 Bolt(For Transaxle & Engine Setting) |
91619-61265 |
US $4.12 |
