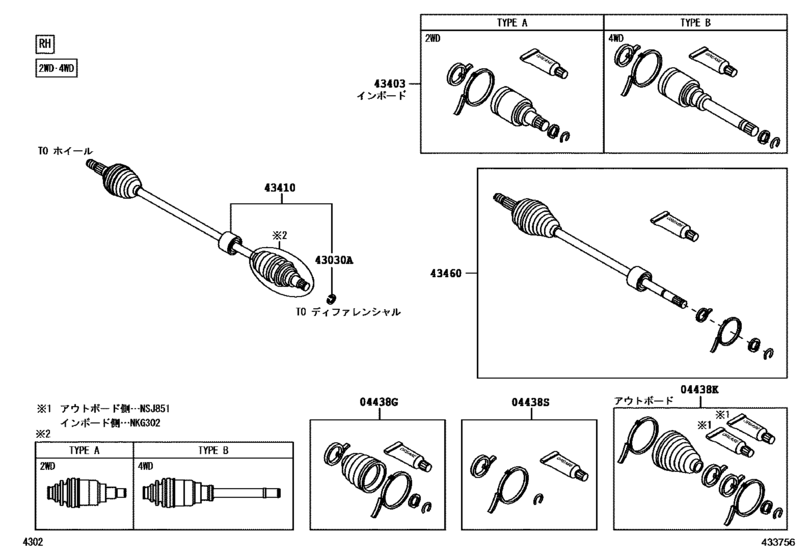

Front Drive Shaft ([11.2016 - ] RH (1611- )) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- CTMG
- ENGINE
- 1KRVET
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- ROOMY
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438G
|
04438G
04437-B1091 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.2016 -] M900..TBO |
04437-B1091 |
US $36.84 |
||
|
04438K
|
04438K
04425-B1140 Boot Kit, Front Drive Shaft Outboard Joint, Rh[11.2016 -] M900..TBO |
04425-B1140 |
US $44.71 |
||
|
04438S
|
04438S
04435-B1101 Clamp Kit, Front Drive Shaft, Rh[11.2016 -] M900..TBO |
04435-B1101 |
US $21.26 |
||
|
43030A
|
43030A
43425-B1030 Ring, Hole Snap (For Front Drive Inboard Joint)HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) [11.2016 -] M900..TBO |
43425-B1030 |
US $4.66 |
||
|
43403
|
43403
43408-B9431 Joint Set, Front Axle Inboard, Rh[11.2016 -] M900..TBO タイプ Ａ |
43408-B9431 |
US $311.58 |
||
|
43410
|
43410
43410-B1170 Shaft Assy, Front Drive, Rh[11.2016 -] M900..TBO タイプ Ａ |
43410-B1170 |
US $691.60 |
||
|
43460
|
43460
43411-B9560 Shaft Assy, Front Drive Outboard Joint, Rh[11.2016 -] M900..TBO |
43411-B9560 |
US $419.33 |
