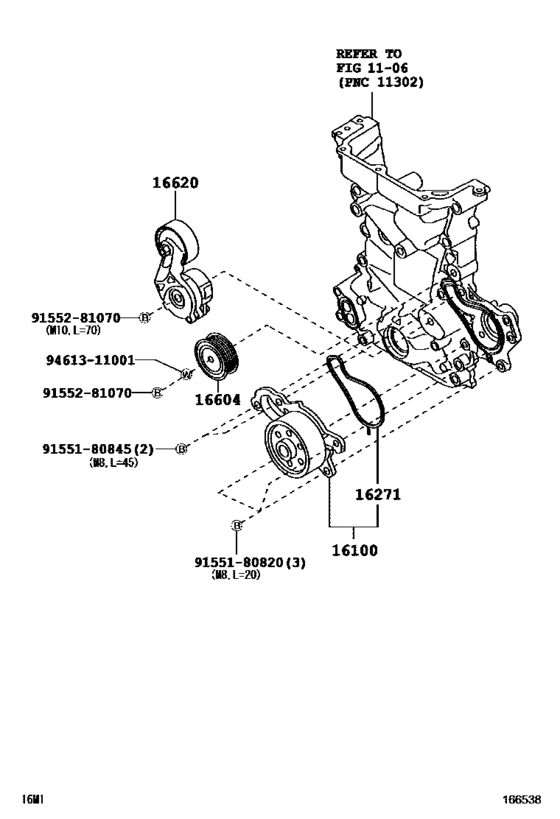

Water Pump ([11.2016 - ] (1611- )1KRVET) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- CTMG
- ENGINE
- 1KRVET
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- ROOMY
- Fuel Induction
- TBO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-80012
Pump Assy, Engine Water
[11.2016 -] 1KR#..M900,910 |
16100-80012 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-80017 Pump Assy, Engine Water[11.2016 -] 1KR#..M900,910 |
16100-80017 |
from US $81.02 |
||
|
16271
|
16271
16271-40030 Gasket, Water Pump[11.2016 -] 1KR#..M900,910 |
16271-40030 |
US $3.40 |
||
|
16604
|
16604
16604-23011 Pulley Sub-Assy, Idler, No.2[11.2016 -] 1KRVET..M900 |
16604-23011 |
from US $58.46 |
||
|
16620
|
16620
16620-B1020 Tensioner Assy, V-Ribbed Belt[11.2016 -] 1KRVET..M900 |
16620-B1020 |
US $139.78 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
|
9155180845
|
9155180845
91551-80845 BOLT FLANGE |
91551-80845 |
from US $1.16 |
||
|
9155281070
|
9155281070
91552-81070 Bolt(For Alternator) |
91552-81070 |
from US $1.48 |
||
|
9461311001
|
9461311001
94613-11001 WASHER |
94613-11001 |
US $2.15 |
||
