Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
88301	88301 88412-B1060 Rotor Sub-Assy, Magnet Clutch [11.2016 -] M900,910	88412-B1060	US $174.72
88302B	88302B 88411-B1040 Stator, Magnet Clutch [11.2016 -] M900,910	88411-B1040	US $78.62
88320	88320 88320-B1070 Compressor Assy, Cooler [11.2016 -] M900,910	88320-B1070	US $1,124.03
88329E	88329E 88329-B1020 Bolt, Compressor, No.1 [11.2016 -] M900,910	88329-B1020	US $8.60
88329F	88329F 90041-20206 Bolt, Compressor, No.2 [11.2016 -] M900..TBO	90041-20206	US $2.18
88335	88335 88335-14020 Washer [11.2016 -] M900,910	88335-14020	from US $1.24
88365	88365 90099-07125 Ring, Snap [11.2016 -] M900,910	90099-07125	from US $1.01
88365A	88365A 88365-87201 Ring, Snap [11.2016 -] M900,910	88365-87201	from US $1.75
88403	88403 88403-B2020 Hub Sub-Assy, Magnet Clutch [11.2016 -] M900,910	88403-B2020	US $81.54
88410	88410 88410-B1080 Clutch Assy, Magnet [11.2016 -] M900,910	88410-B1080	US $356.72
88446C	88446C 90099-04349 Bolt, Magnet Clutch Setting [11.2016 -] M900,910	90099-04349	from US $0.70
88688N	88688N 88688-B1090 Bracket, Cooler [11.2016 -] M900,910	88688-B1090	US $7.53
82210B1020	82210B1020 82210-B1020 Harness Assy, Wiring Cowl To Headlamp, No.1	82210-B1020	US $19.80
82716B1010	82716B1010 82716-B1010 Bracket, Wiring Harness Clamp, Lh	82716-B1010	US $4.08
8846687701	8846687701 88466-87701 New Genuine Part	88466-87701	—
	replacement
8846687701	8846687701 93319-15008 SCREW	93319-15008	US $3.05

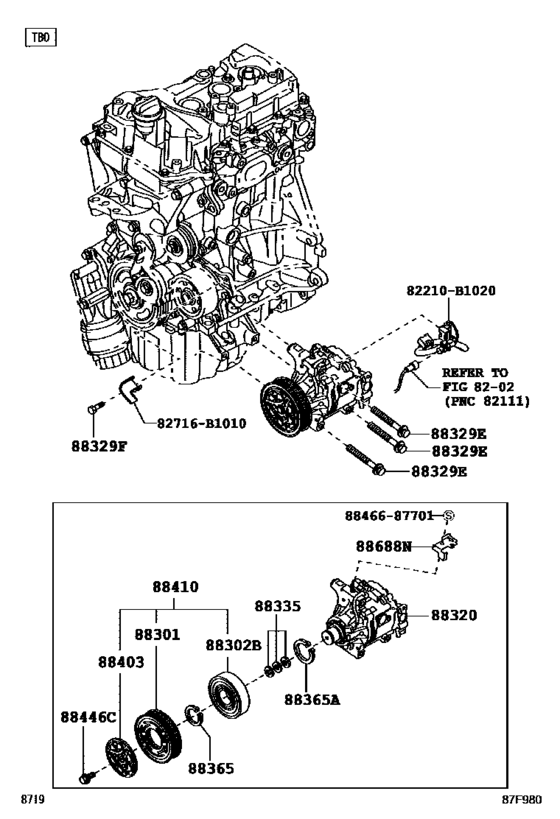

Heating & Air Conditioning - Compressor ([11.2016 - ] (1611- )TBO) Diagram Toyota TANK/ROOMY Japan 17775305-913613
