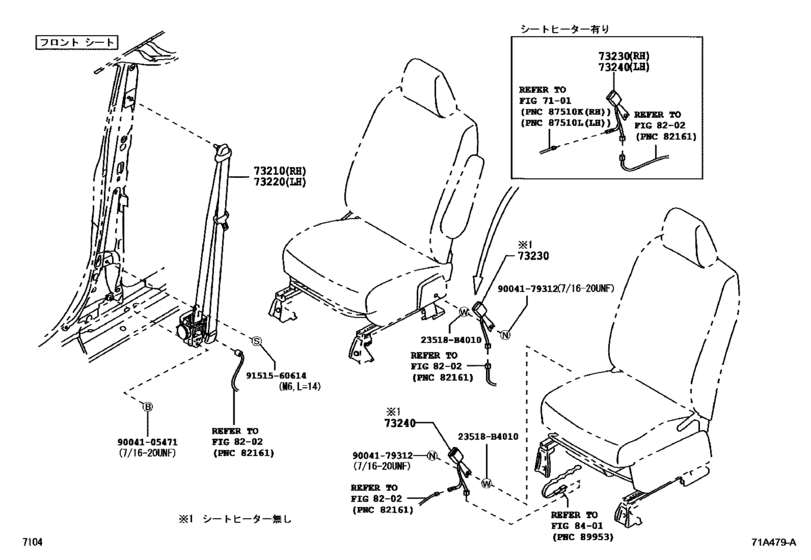

Seat Belt & Child Restraint Seat ([11.2016 - ] (1611- )) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M900A
- grade
- CTMG
- ENGINE
- 1KRVET
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- TANK
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73210
|
73210
73210-B1200-C0 Belt Assy, Front Seat Outer, Rh[11.2016 -] M900,910 BLACK,TRIM1# |
73210-B1200-C0 |
US $402.48 |
||
|
73220
|
73220
73220-B1200-C0 Belt Assy, Front Seat Outer, Lh[11.2016 -] M900,910 BLACK,TRIM1# |
73220-B1200-C0 |
US $346.53 |
||
|
73230
|
73230
73230-B2720-C0 Belt Assy, Front Seat Inner, Rh[11.2016 -] M900,910..CTMG,G コンフォートパッケージ １,BLACK,TRIM1#; M900,910..X コンフォートパッケージ ２＆シートヒーター有り（Ｄ席＋Ｐ席）,BLACK,TRIM1#; M900,910..X コンフォートパッケージ ２＆シートヒーター有り（Ｄ席＋Ｐ席）＆ＳＲＳエアバッグ（Ｄ ／Ｐ，サイド，エアーカーテン）,BLACK,TRIM1# |
73230-B2720-C0 |
US $86.92 |
||
|
73230
|
73230
73230-B2750-C0 Belt Assy, Front Seat Inner, Rh[11.2016 -] M900,910..CTMG,G BLACK,TRIM1#; M900,910..X ＳＲＳエアバッグ（Ｄ／Ｐ，サイド，エアーカーテン）,BLACK,TRIM1# |
73230-B2750-C0 |
US $86.92 |
||
|
73240
|
73240
73230-B1430-C0 Belt Assy, Front Seat Inner, Lh[11.2016 -] M900,910 BLACK,TRIM1# |
73230-B1430-C0 |
US $86.92 |
||
|
73240
|
73240
73230-B1440-C0 Belt Assy, Front Seat Inner, Lh[11.2016 -] M900,910..CTMG,G コンフォートパッケージ １,BLACK,TRIM1#; M900,910..X コンフォートパッケージ ２＆シートヒーター有り（Ｄ席＋Ｐ席）,BLACK,TRIM1#; M900,910..X コンフォートパッケージ ２＆シートヒーター有り（Ｄ席＋Ｐ席）＆ＳＲＳエアバッグ（Ｄ ／Ｐ，サイド，エアーカーテン）,BLACK,TRIM1# |
73230-B1440-C0 |
US $86.92 |
||
|
23518B4010
|
23518B4010
23518-B4010 Washer, Wave(for Elastic Face Valve Set) |
23518-B4010 |
US $1.75 |
||
|
9004105471
|
9004105471
90041-05471 New Genuine Part |
90041-05471 |
US $2.04 |
||
|
9004179312
|
9004179312
90041-79312 New Genuine Part |
90041-79312 |
US $3.76 |
||
|
9151560614
|
9151560614
91515-60614 New Genuine Part |
91515-60614 |
US $1.60 |
||
| replacement | |||||
|
9151560614
|
9151560614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
