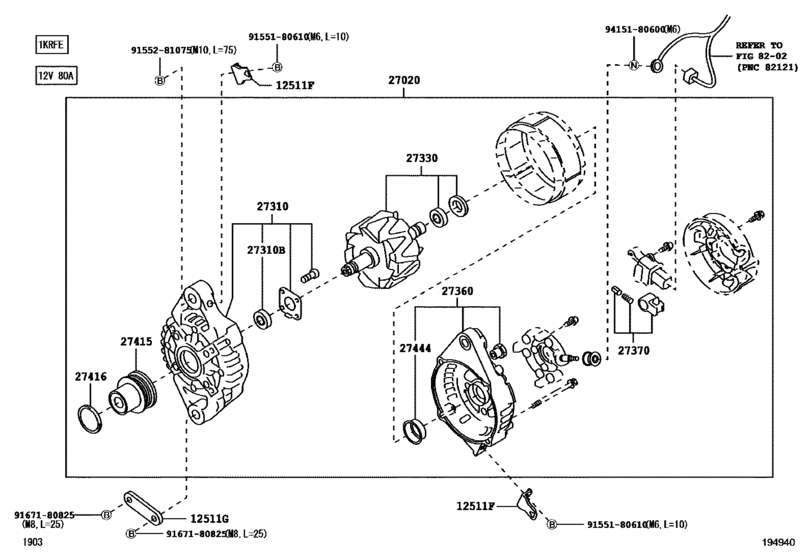

Alternator ([11.2016 - ] (1611- )1KRFE) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M910A
- grade
- CTMG
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- TANK
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12511F
|
12511F
82715-5C210 Bracket, Alternator, No.1[11.2016 -] 1KRFE..M900,910 |
82715-5C210 |
US $2.75 |
||
|
12511G
|
12511G
12511-B1010 Bracket, Alternator, No.2[11.2016 -] 1KRFE..M900,910 |
12511-B1010 |
US $8.74 |
||
|
27020
|
27020
27060-B1150 Alternator Assy[11.2016 -] 1KRFE..M900,910 １２Ｖ ８０Ａ |
27060-B1150 |
US $667.36 |
||
|
27310
|
27310
27310-B1070
Frame Assy, Drive End, Alternator
[11.2016 -] 1KRFE..M900,910 |
27310-B1070 |
— | ||
|
27310B
|
27310B
9004C-37008 Bearing(For Alternator Drive End Frame)[11.2016 -] 1KR#..M900,910 |
9004C-37008 |
from US $14.12 |
||
|
27330
|
27330
27330-B1030
Rotor Assy, Alternator
[11.2016 -] 1KR#..M900,910 |
27330-B1030 |
— | ||
|
27360
|
27360
27360-B1010 Coil Assy, Alternator[11.2016 -] 1KRFE..M900,910 |
27360-B1010 |
US $473.20 |
||
|
27370
|
27370
27370-B1020 Holder Assy, Alternator Brush[11.2016 -] 1KRFE..M900,910 |
27370-B1020 |
US $19.53 |
||
|
27415
|
27415
27415-0W210 Pulley, Alternator W/clutch[11.2016 -] 1KR#..M900,910 |
27415-0W210 |
US $126.28 |
||
|
27416
|
27416
27416-0W020 Cap, Alternator Pulley[11.2016 -] 1KR#..M900,910 |
27416-0W020 |
US $6.09 |
||
|
27444
|
27444
27444-B1010 Packing, Alternator Bearing Cover[11.2016 -] 1KR#..M900,910 |
27444-B1010 |
US $1.75 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155281075
|
9155281075
91552-81075 Bolt, No.1(For Alternator) |
91552-81075 |
US $3.58 |
||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.76 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
