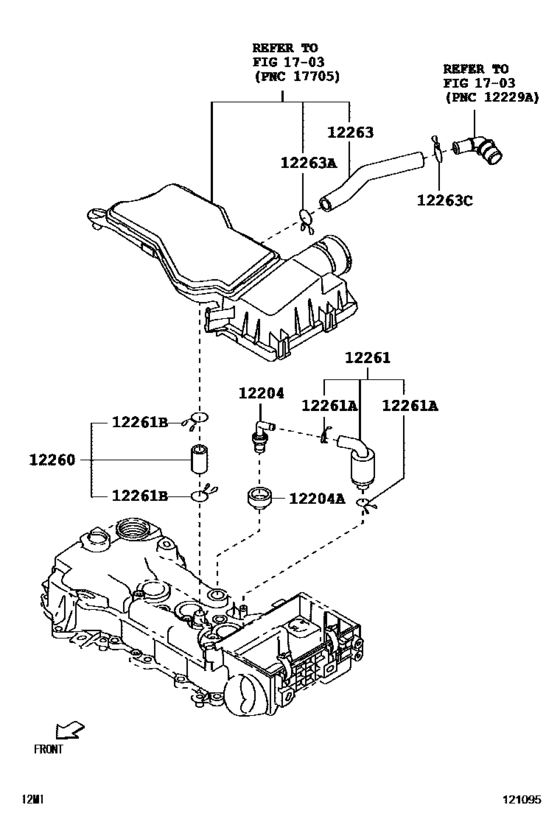

Ventilation Hose ([11.2016 - ] (1611- )1KRFE) Diagram Toyota TANK/ROOMY
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M910A
- grade
- CTMG
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- From
- 11.2016
- No.of Doors
- 5D
- Vehicle Model
- TANK
- Fuel Induction
- NTBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-40040 Valve Sub-Assy, VentilationVENTILATION [11.2016 -] 1KRFE..M900,910 |
12204-40040 |
US $21.84 |
||
|
12204A
|
12204A
90480-18016 Grommet(For Ventilation System)[11.2016 -] 1KR#..M900,910 |
90480-18016 |
US $3.23 |
||
|
12260
|
12260
12260-40010 Hose Assy, Ventilation[11.2016 -] 1KRFE..M900,910 |
12260-40010 |
US $7.17 |
||
|
12261
|
12261
12261-40051 Hose, Ventilation[11.2016 -] 1KRFE..M900,910 |
12261-40051 |
US $13.80 |
||
|
12261A
|
12261A
90467-15120 Clip Or Clamp(For Ventilation Hose)[11.2016 -] 1KRFE..M900,910 |
90467-15120 |
from US $0.93 |
||
|
12261B
|
12261B
90467-21004 Clip Or Clamp(For Ventilation Hose)[11.2016 -] 1KRFE..M900,910 |
90467-21004 |
from US $1.24 |
||
|
12263
|
12263
12263-B1010 Hose, Ventilation, No.3[11.2016 -] 1KRFE..M900,910 |
12263-B1010 |
US $11.65 |
||
|
12263A
|
12263A
90467-21004 Clip Or Clamp(For Ventilation Hose)[11.2016 -] 1KRFE..M900,910 |
90467-21004 |
from US $1.24 |
||
|
12263C
|
12263C
90467-21004 Clip Or Clamp(For Ventilation Hose)[11.2016 -] 1KRFE..M900,910 |
90467-21004 |
from US $1.24 |
