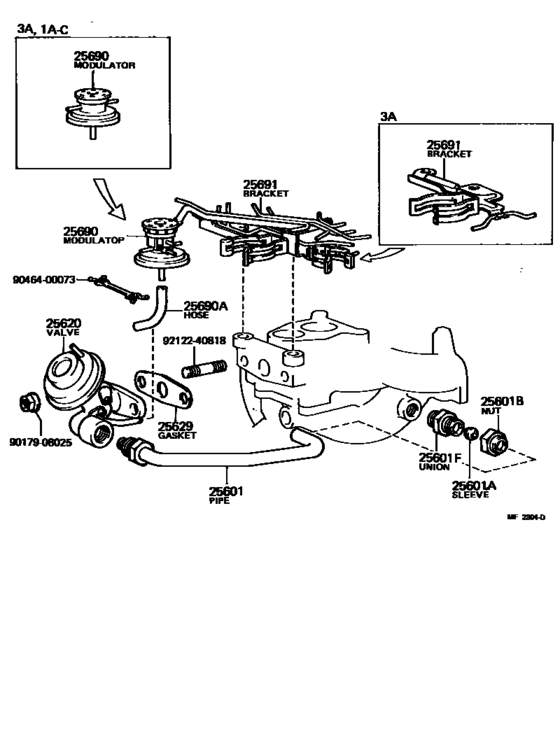

Exhaust Gas Recirculation System ([08.1979 - 07.1982] (7908-8207)) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-15010 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [08.1979 - 07.1982] 1AC,3A#..AL1# |
25601-15010 |
US $55.47 |
||
|
25601A
|
25601A
90410-16001
Sleeve, Ball, Egr Pipe, No.1
[08.1979 - 07.1982] 1AC,3A#..AL1# |
90410-16001 |
— | ||
|
25601B
|
25601B
90402-22008 Nut, Union, Egr Pipe, No.1UNION, EGR PIPE, NO.1 [08.1979 - 07.1982] 1AC,3A#..AL1# |
90402-22008 |
US $14.56 |
||
|
25601F
|
25601F
90404-22004
Union(For Egr Pipe, No.1)
[08.1979 - 07.1982] 1AC,3A#..AL1# |
90404-22004 |
— | ||
|
25620
|
25620
25620-15050
Valve Assy, Egr
[08.1979 - 08.1980] 1AC..AL10..5F |
25620-15050 |
— | ||
|
25620
|
25620
25620-15070 Valve Assy, EgrEGR [08.1979 - 08.1980] 1AC..AL10..MTM..USA CALIFORNIA SPEC |
25620-15070 |
US $264.99 |
||
|
25629
|
25629
25629-15010 Gasket, Egr Valve Adapter[08.1979 - 03.1982] 1AC,3A#..AL1# |
25629-15010 |
US $2.18 |
||
| replacement | |||||
|
25629
|
25629
25629-15011 Gasket, Egr Valve Adapter[08.1979 - 03.1982] 1AC,3A#..AL1# |
25629-15011 |
US $2.77 |
||
|
25690
|
25690
25690-15020 Modulator Assy, Egr VacuumEGR VACUUM [08.1979 - 08.1980] 1AC..AL10 |
25690-15020 |
US $88.82 |
||
|
25690A
|
25690A
90445-11041
Hose(For Egr Vacuum Modulator)
[08.1979 - 08.1980] 1AC..AL10 |
90445-11041 |
— | ||
|
25691
|
25691
25691-15050
Bracket, Egr Vacuum Modulator
[08.1979 - 08.1980] 1AC..AL10 |
25691-15050 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9046400073
|
9046400073
90464-00073
Clamp(For Resistive Cord)
|
90464-00073 |
— | ||
|
9212240818
|
9212240818
92122-40818 Bolt, Stud(For Oil Pan) |
92122-40818 |
US $2.18 |
||
