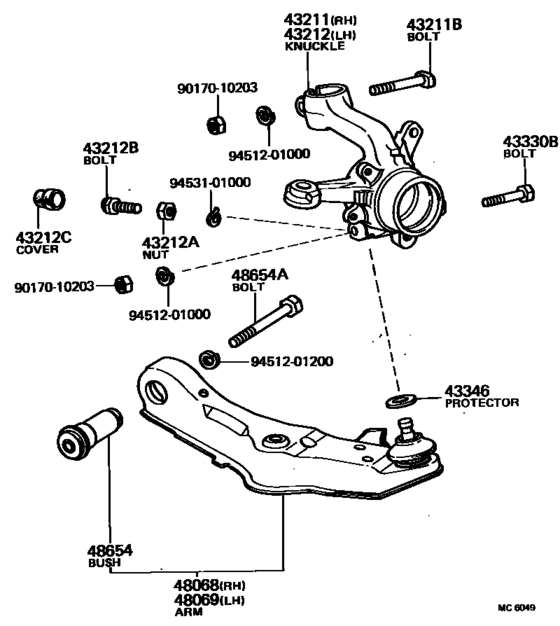

Front Axle Arm & Steering Knuckle ([08.1979 - 07.1982] (7908-8207)) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-16010
Knuckle, Steering, Rh
[08.1979 - 07.1982] AL1# |
43211-16010 |
— | ||
|
43211B
|
43211B
90109-10029 Bolt (For Absorber Setting)[08.1979 - 07.1982] AL1# |
90109-10029 |
US $3.79 |
||
|
43212
|
43212
43212-16010
Knuckle, Steering, Lh
[08.1979 - 07.1982] AL1# |
43212-16010 |
— | ||
|
43212A
|
43212A
90170-10082 Nut, Hexagon (For Control Rod Setting)[08.1979 - 07.1982] AL1# |
90170-10082 |
from US $2.56 |
||
|
43212B
|
43212B
90106-10032 Bolt, Round Hexagon (For Steering Knuckle Stopper)[08.1979 - 07.1982] AL1# |
90106-10032 |
US $2.72 |
||
|
43212C
|
43212C
45619-14020 Cover, Front Knuckle Stopper[08.1979 - 07.1982] AL1# |
45619-14020 |
from US $5.11 |
||
|
43330B
|
43330B
90101-10051 Bolt, Hexagon (For Lower Ball Joint Set)[08.1979 - 07.1982] AL1# |
90101-10051 |
US $2.77 |
||
|
43346
|
43346
43346-16010 Protector, Lower Ball Joint Dust CoverLOWER BALL JOINT DUST COVER [08.1979 - 07.1982] AL1# |
43346-16010 |
US $4.37 |
||
|
48068
|
48068
48068-16010
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1979 - 07.1982] AL1# |
48068-16010 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-16020 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[08.1979 - 07.1982] AL1# |
48068-16020 |
US $247.52 |
||
|
48069
|
48069
48069-16010
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1979 - 07.1982] AL1# |
48069-16010 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-16020 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[08.1979 - 07.1982] AL1# |
48069-16020 |
US $247.52 |
||
|
48654
|
48654
48654-16010
Bush, Lower Arm
[08.1979 - 07.1982] AL1# |
48654-16010 |
— | ||
|
48654A
|
48654A
90101-12035 Bolt, Hexagon(For Lower Arm)HEXAGON(FOR LOWER ARM) [08.1979 - 07.1982] AL1# |
90101-12035 |
US $4.66 |
||
|
9017010203
|
9017010203
90170-10203 New Genuine Part |
90170-10203 |
US $2.91 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
