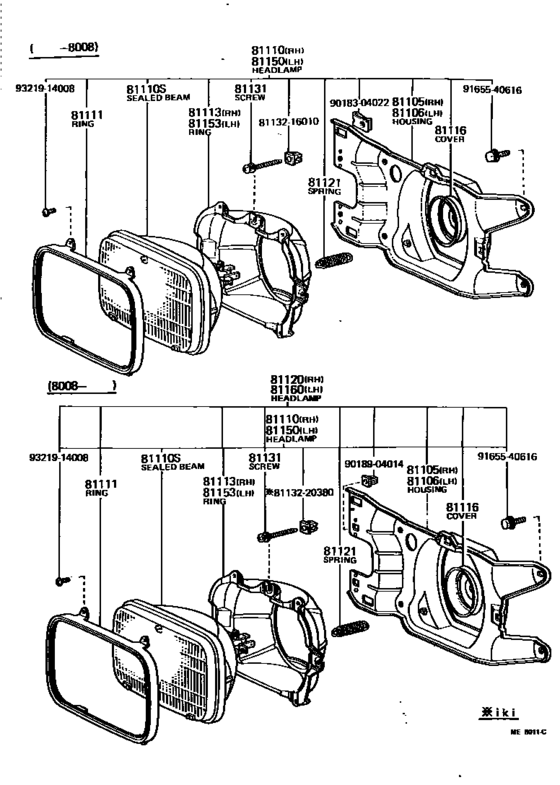

Headlamp ([08.1979 - 07.1982] (7908-8207)) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-16010
Housing Sub-Assy, Headlamp, Rh
[08.1979 - 08.1980] AL1# IKI |
81105-16010 |
— | ||
|
81105
|
81105
81105-16020
Housing Sub-Assy, Headlamp, Rh
[08.1979 - 08.1980] AL1# KOITO |
81105-16020 |
— | ||
|
81106
|
81106
81106-16010
Housing Sub-Assy, Headlamp, Lh
[08.1979 - 08.1980] AL1# IKI |
81106-16010 |
— | ||
|
81106
|
81106
81106-16020
Housing Sub-Assy, Headlamp, Lh
[08.1979 - 08.1980] AL1# KOITO |
81106-16020 |
— | ||
|
81110
|
81110
81110-80012
Headlamp Assy, Rh
[08.1979 - 08.1980] AL1# IKI |
81110-80012 |
— | ||
|
81110
|
81110
81110-80013
Headlamp Assy, Rh
[08.1979 - 08.1980] AL1# KOITO |
81110-80013 |
— | ||
|
81110S
|
81110S
90981-04003
Sealed Beam Unit, No.1
[08.1979 - 08.1981] AL1# 12V 65/55W,*WB,12V 65/55W,IKI |
90981-04003 |
— | ||
| replacement | |||||
|
81110S
|
81110S
90981-04004
Sealed Beam Unit, No.1
[08.1979 - 08.1981] AL1# 12V 65/55W,*WB,12V 65/55W,IKI |
90981-04004 |
— | ||
|
81110S
|
81110S
90981-04004
Sealed Beam Unit, No.1
[08.1979 - 08.1981] AL1# 12V 65/55W,*WB,12V 65/55W,KOITO |
90981-04004 |
— | ||
|
81111
|
81111
81111-16010 Ring, Sealed Beam RetainingSEALED BEAM RETAINING [08.1979 - 08.1981] AL1# IKI |
81111-16010 |
US $21.40 |
||
|
81111
|
81111
81111-16020 Ring, Sealed Beam Retaining[08.1979 - 07.1982] AL1# KOITO |
81111-16020 |
from US $21.61 |
||
|
81113
|
81113
81113-16010 Ring, Sealed Beam Mounting, No.1 LhSEALED BEAM MOUNTING, NO.1 LH [08.1979 - 08.1981] AL1# IKI |
81113-16010 |
US $15.58 |
||
| replacement | |||||
|
81113
|
81113
81153-12511 Ring, Sealed Beam Mounting, No.1 LhSEALED BEAM MOUNTING, NO.1 LH [08.1979 - 08.1981] AL1# IKI |
81153-12511 |
US $15.43 |
||
|
81113
|
81113
81113-16020
Ring, Sealed Beam Mounting, No.1 Rh
[08.1979 - 07.1982] AL1# KOITO |
81113-16020 |
— | ||
| replacement | |||||
|
81113
|
81113
81113-16220 Ring, Sealed Beam Mounting, No.1[08.1979 - 07.1982] AL1# KOITO |
81113-16220 |
US $17.33 |
||
|
81116
|
81116
81116-10060 Cover, Sealed Beam UnitSEALED BEAM UNIT [08.1979 - 08.1981] AL1# IKI |
81116-10060 |
US $3.06 |
||
|
81116
|
81116
81116-25050 Cover, Sealed Beam Unit[08.1979 - 07.1982] AL1# KOITO |
81116-25050 |
US $2.91 |
||
|
81121
|
81121
81121-16010 Spring, Headlamp TensionHEADLAMP TENSION [08.1979 - 08.1980] AL1# IKI |
81121-16010 |
US $3.35 |
||
| replacement | |||||
|
81121
|
81121
81121-16230 Spring, Headlamp Tension[08.1979 - 08.1980] AL1# IKI |
81121-16230 |
US $3.64 |
||
|
81121
|
81121
81121-16020 Spring, Headlamp Tension[08.1979 - 07.1982] AL1# KOITO |
81121-16020 |
from US $4 |
||
|
81131
|
81131
81131-10031 Screw, Headlamp Adjusting[08.1979 - 07.1982] AL1# KOITO |
81131-10031 |
from US $3.84 |
||
|
81131
|
81131
81131-16010 Screw, Headlamp AdjustingHEADLAMP ADJUSTING [08.1979 - 08.1981] AL1# IKI |
81131-16010 |
US $3.06 |
||
| replacement | |||||
|
81131
|
81131
81131-16230 Screw, Headlamp Adjusting[08.1979 - 08.1981] AL1# IKI |
81131-16230 |
US $3.04 |
||
|
81150
|
81150
81150-80012
Headlamp Assy, Lh
[08.1979 - 08.1980] AL1# IKI |
81150-80012 |
— | ||
|
81150
|
81150
81150-80013 Headlamp Assy, LhLH [08.1979 - 08.1980] AL1# KOITO |
81150-80013 |
US $184.91 |
||
|
81153
|
81153
81153-16010 Ring, Sealed Beam Mounting, No.1 RhSEALED BEAM MOUNTING, NO.1 RH [08.1979 - 08.1981] AL1# IKI |
81153-16010 |
US $17.18 |
||
| replacement | |||||
|
81153
|
81153
81113-12581 Ring, Sealed Beam Mounting, No.1 RhSEALED BEAM MOUNTING, NO.1 RH [08.1979 - 08.1981] AL1# IKI |
81113-12581 |
US $15.43 |
||
|
81153
|
81153
81153-16020 Ring, Sealed Beam Mounting, No.1 Rh[08.1979 - 07.1982] AL1# KOITO |
81153-16020 |
US $17.18 |
||
| replacement | |||||
|
81153
|
81153
81153-16220 Ring, Sealed Beam Mounting, No.1[08.1979 - 07.1982] AL1# KOITO |
81153-16220 |
US $17.33 |
||
|
8113216010
|
8113216010
81132-16010 Nut, Headlamp Self Locking |
81132-16010 |
US $3.06 |
||
| replacement | |||||
|
8113216010
|
8113216010
90041-89003 Nut, Headlamp Self Locking |
90041-89003 |
US $2.04 |
||
|
8113220380
|
8113220380
81132-20380 Nut, Headlamp Self Locking |
81132-20380 |
US $2.48 |
||
| replacement | |||||
|
8113220380
|
8113220380
90041-89003 Nut, Headlamp Self Locking |
90041-89003 |
US $2.04 |
||
|
9018304022
|
9018304022
90183-04022 Nut, Spring |
90183-04022 |
US $2.48 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.01 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
