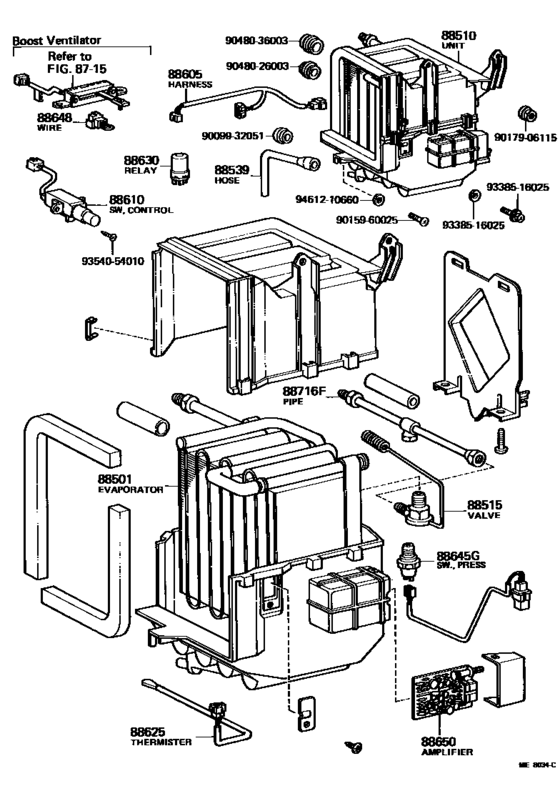

Heating & Air Conditioning - Cooler Unit ([08.1979 - 07.1982] (7908-8207)USA) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-16020
Evaporator Sub-Assy, Cooler, No.1
[06.1980 - 08.1981] AL1#..USA |
88501-16020 |
— | ||
|
88501
|
88501
88501-16040
Evaporator Sub-Assy, Cooler, No.1
[08.1979 - 06.1980] AL10..USA |
88501-16040 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-16020
Evaporator Sub-Assy, Cooler, No.1
[08.1979 - 06.1980] AL10..USA |
88501-16020 |
— | ||
|
88510
|
88510
88510-16040
Unit Assy, Cooler
[08.1979 - 08.1980] AL10..USA |
88510-16040 |
— | ||
|
88515
|
88515
88515-20040 Valve, Cooler Expansion[08.1979 - 08.1981] AL1#..USA |
88515-20040 |
US $119.39 |
||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[08.1979 - 08.1981] AL1#..USA |
88515-16031 |
US $109.52 |
||
|
88539
|
88539
88539-10030
Hose, Cooler Unit Drain, No.1
[08.1979 - 08.1981] AL1#..USA |
88539-10030 |
— | ||
|
88605
|
88605
88605-16051
Harness Sub-Assy, Cooler Wiring, No.1
[08.1979 - 08.1981] AL1#..USA |
88605-16051 |
— | ||
|
88605
|
88605
88605-16061
Harness Sub-Assy, Cooler Wiring, No.1
[08.1979 - 08.1980] AL10..USA W/BOOST VENTILATOR |
88605-16061 |
— | ||
|
88610
|
88610
84660-16010
Switch Assy, Cooler Control
[08.1979 - 08.1981] AL1#..USA W/HEATER |
84660-16010 |
— | ||
|
88625
|
88625
88625-20040
Thermistor, Cooler, No.1
[08.1979 - 08.1981] AL1#..USA |
88625-20040 |
— | ||
|
88630
|
88630
90987-01001
Relay, Fuel Lid Opener
[08.1979 - 02.1981] AL1#..USA |
90987-01001 |
— | ||
| replacement | |||||
|
88630
|
88630
90999-99088
Relay, Fuel Lid Opener
[08.1979 - 02.1981] AL1#..USA |
90999-99088 |
— | ||
|
88648
|
88648
88648-16020
Wiring, Cooler, No.1
[08.1979 - 08.1980] AL10..USA W/BOOST VENTILATOR |
88648-16020 |
— | ||
|
88650
|
88650
88650-16010
Harness Sub-Assy, Cooler Wiring, No.1
[08.1979 - 08.1980] AL10..USA |
88650-16010 |
— | ||
|
88716F
|
88716F
88716-16070
Pipe, Cooler Refrigerant Liquid, F
[08.1979 - 08.1981] AL1#..USA |
88716-16070 |
— | ||
|
9009932051
|
9009932051
90099-32051
New Genuine Part
|
90099-32051 |
— | ||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.20 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $3.14 |
||
|
9048036003
|
9048036003
90480-36003 Grommet (For Cooler Unit) |
90480-36003 |
US $3.32 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9461210660
|
9461210660
94612-10660
New Genuine Part
|
94612-10660 |
— | ||
| replacement | |||||
|
9461210660
|
9461210660
90093-00608
New Genuine Part
|
90093-00608 |
— | ||
