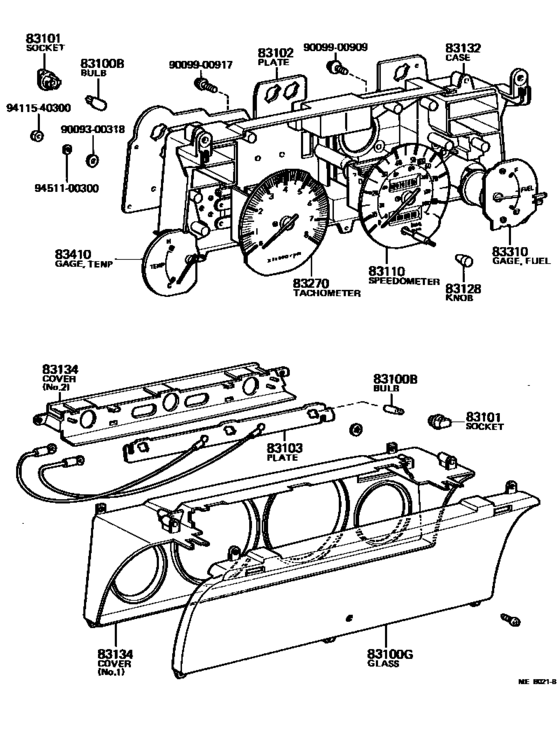

Meter ([08.1979 - 08.1980] (7908-8008)SR5) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- SR5
- body
- 3DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1979 - 07.1982] AL1# 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1979 - 07.1982] AL1# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1979 - 07.1982] AL1# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-16190
Glass, Combination Meter
[08.1979 - 08.1980] AL10..SR5 |
83138-16190 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1979 - 07.1982] AL1# 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1979 - 07.1982] AL1# 12V 1.4W |
83101-14040 |
US $2.98 |
||
|
83102
|
83102
83247-16210
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1979 - 08.1980] AL1#..SR5 |
83247-16210 |
— | ||
|
83103
|
83103
83247-16220
Plate Sub-Assy, Combination Meter Circuit, No.2
[08.1979 - 08.1980] AL1#..SR5 |
83247-16220 |
— | ||
|
83110
|
83110
83110-16180
Speedometer Assy
[08.1979 - 08.1980] AL10..SR5 |
83110-16180 |
— | ||
|
83128
|
83128
83128-16010
Knob, Trip Counter
[08.1979 - 08.1980] AL1#..DLX,SR5 |
83128-16010 |
— | ||
|
83132
|
83132
83132-16210
Case, Combination Meter
[08.1979 - 08.1980] AL1#..SR5 |
83132-16210 |
— | ||
|
83134
|
83134
83133-16150
Cover, Combination Meter, No.1
[08.1979 - 08.1980] AL1#..SR5 NO.1 |
83133-16150 |
— | ||
|
83134
|
83134
83133-16160
Cover, Combination Meter, No.1
[08.1979 - 08.1980] AL1#..SR5 NO.2 |
83133-16160 |
— | ||
|
83270
|
83270
83242-16080
Tachometer Assy, Engine
[08.1979 - 08.1980] AL1#..SR5 |
83242-16080 |
— | ||
|
83310
|
83310
83243-16190
Gage Assy, Fuel Receiver
[08.1979 - 08.1980] AL1#..SR5 |
83243-16190 |
— | ||
|
83410
|
83410
83244-16190
Gage Assy, Water Temperature Receiver
[08.1979 - 08.1980] AL1#..SR5 |
83244-16190 |
— | ||
|
9009300318
|
9009300318
90093-00318
New Genuine Part
|
90093-00318 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9411540300
|
9411540300
94115-40300
New Genuine Part
|
94115-40300 |
— | ||
|
9451100300
|
9451100300
94511-00300
New Genuine Part
|
94511-00300 |
— | ||
