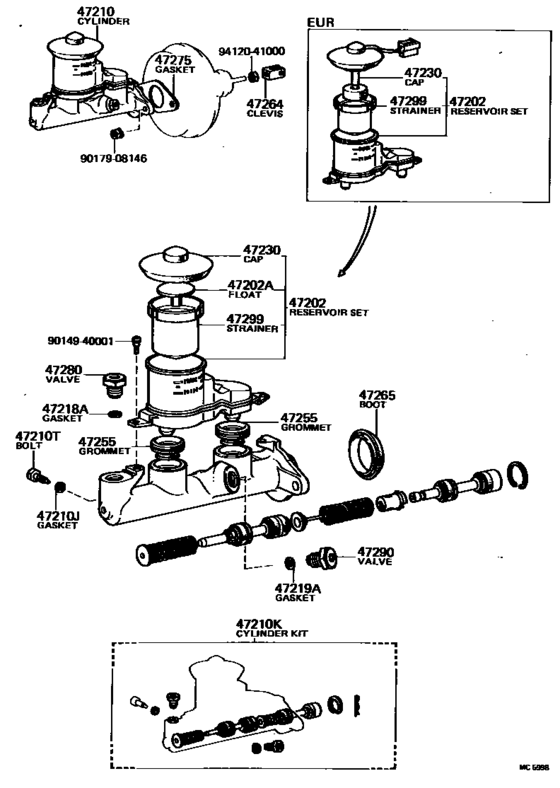

Brake Master Cylinder ([01.1979 - ] (7901- )LHD) Diagram Toyota TERCEL
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- AL11
- grade
- DLX
- body
- 4DS
- ENGINE
- 2A
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 08.1979
- To
- 04.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47202
|
47202
47202-10020 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [01.1979 - 04.1982] AL11..GEN |
47202-10020 |
US $38.58 |
||
|
47202A
|
47202A
31426-20010 Float, Clutch Master Cylinder ReservoirBRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) [01.1979 - 04.1982] AL11..GEN |
31426-20010 |
US $4.37 |
||
|
47210
|
47210
47201-16030 Cylinder Assy, Master, W/o BoosterMASTER, W/O BOOSTER [01.1979 - 04.1982] AL11..LHD..GEN |
47201-16030 |
US $521.25 |
||
| replacements | |||||
|
47210
|
47210
31426-20010 Float, Clutch Master Cylinder ReservoirBRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) [01.1979 - 04.1982] AL11..LHD..GEN |
31426-20010 |
US $4.37 |
||
|
47210
|
47210
47207-16010
Cylinder Sub-assy, Brake Master Less Reservoir Tank
[01.1979 - 04.1982] AL11..LHD..GEN |
47207-16010 |
— | ||
|
47210
|
47210
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[01.1979 - 04.1982] AL11..LHD..GEN |
47230-20040 |
from US $9.36 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[01.1979 - 04.1982] AL11 |
90430-06104 |
from US $1.60 |
||
|
47210K
|
47210K
04493-16010
Cylinder Kit, Brake Master
[01.1979 - 03.1980] AL11 |
04493-16010 |
— | ||
| replacement | |||||
|
47210K
|
47210K
04493-16011
Cylinder Kit, Brake Master
[01.1979 - 03.1980] AL11 |
04493-16011 |
— | ||
|
47210K
|
47210K
04493-16011
Cylinder Kit, Brake Master
[03.1980 - 04.1982] AL11 |
04493-16011 |
— | ||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[01.1979 - 04.1982] AL11 |
90109-06077 |
from US $2.56 |
||
|
47218A
|
47218A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[01.1979 - 04.1982] AL11 |
90430-09253 |
— | ||
|
47219A
|
47219A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[01.1979 - 04.1982] AL11 |
90430-09253 |
— | ||
|
47230
|
47230
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[01.1979 - 04.1982] AL11..GEN |
47230-20040 |
from US $9.36 |
||
|
47255
|
47255
47255-10010 Grommet, Master Cylinder Reservoir[01.1979 - 04.1982] AL11 |
47255-10010 |
US $9.43 |
||
|
47264
|
47264
47264-10080 Clevis, Master Cylinder Push Rod[01.1979 - 04.1982] AL11 |
47264-10080 |
US $9.32 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[01.1979 - 04.1982] AL11 |
47265-20050 |
from US $4.80 |
||
|
47275
|
47275
47275-14010
Gasket, Clutch Master Cylinder
[01.1979 - 04.1982] AL11 |
47275-14010 |
— | ||
| replacement | |||||
|
47275
|
47275
47275-26010 Gasket, Brake Master Cylinder[01.1979 - 04.1982] AL11 |
47275-26010 |
from US $3.52 |
||
|
47280
|
47280
47280-30030
Valve Assy, Brake Master Cylinder Outlet Check
[01.1979 - 04.1982] AL11 |
47280-30030 |
— | ||
| replacement | |||||
|
47280
|
47280
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[01.1979 - 04.1982] AL11 |
47280-14010 |
— | ||
|
47290
|
47290
47280-30030
Valve Assy, Brake Master Cylinder Outlet Check
[01.1979 - 04.1982] AL11 |
47280-30030 |
— | ||
| replacement | |||||
|
47290
|
47290
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[01.1979 - 04.1982] AL11 |
47280-14010 |
— | ||
|
47299
|
47299
47299-10010
Strainer, Brake Master Cylinder Reservoir
[01.1979 - 04.1982] AL11 |
47299-10010 |
— | ||
|
9014940001
|
9014940001
90149-40001
New Genuine Part
|
90149-40001 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
