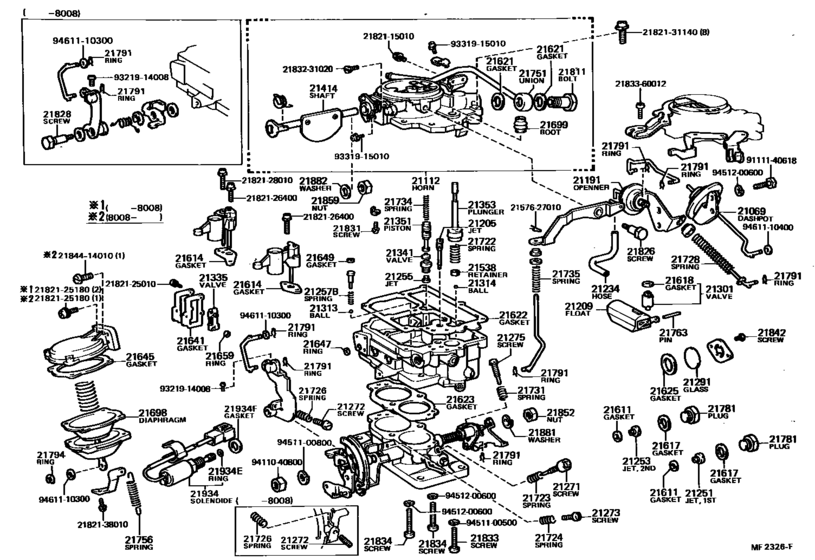

Carburetor ([02.1980 - ] (7908-8002)2A..LHD..3FC ; (8002- )2A..LHD..GE N ; (8002- )2A..3FC..EUR) Diagram Toyota TERCEL
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- AL11
- grade
- DLX
- body
- 4DS
- ENGINE
- 2A
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 08.1979
- To
- 04.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112
|
21112
21112-14050
Horn, Air
[08.1979 - 04.1980] 2A..AL11..LHD..3FC |
21112-14050 |
— | ||
|
21112
|
21112
21112-14051
Horn, Air
[04.1980 - 08.1980] 2A..AL11..LHD..4F..GEN; 2A..AL11..LHD..3FC |
21112-14051 |
— | ||
|
21112
|
21112
21112-14052
Horn, Air
[08.1980 - 04.1982] 2A..AL11..LHD..4F..GEN; 2A..AL11..LHD..3FC |
21112-14052 |
— | ||
|
21191
|
21191
21191-25231 Opener[08.1979 - 02.1980] 2A..AL11..3FC |
21191-25231 |
US $90.27 |
||
|
21205
|
21205
21205-14010 Jet Sub-Assy, Slow[01.1979 - 04.1982] 2A..AL11 ID=0.46 |
21205-14010 |
US $13.40 |
||
|
21209
|
21209
21209-15020 Float Sub-Assy[08.1980 - 04.1982] 2A..AL11 |
21209-15020 |
US $33.90 |
||
|
21209
|
21209
21209-27040
Float Sub-Assy
[01.1979 - 08.1980] 2A..AL11 |
21209-27040 |
— | ||
|
21234
|
21234
95411-19930
Hose(For Carburetor To Manifold)
[08.1979 - 02.1980] 2A..AL11..3FC *H,L=100 |
95411-19930 |
— | ||
| replacement | |||||
|
21234
|
21234
90999-92002
Air Hose (300 mm)
[08.1979 - 02.1980] 2A..AL11..3FC *H,L=100 |
90999-92002 |
— | ||
|
21251
|
21251
90999-41099 Jet, 1St Main[01.1979 - 04.1982] 2A..AL11 ID=0.99 |
90999-41099 |
US $6.12 |
||
|
21253
|
21253
90999-42147 Jet, 2Nd Main2ND MAIN [01.1979 - 04.1982] 2A..AL11 ID=1.47 |
90999-42147 |
US $3.20 |
||
| replacement | |||||
|
21253
|
21253
90999-41147 Jet, 2Nd Main[01.1979 - 04.1982] 2A..AL11 ID=1.47 |
90999-41147 |
US $5.39 |
||
|
21255
|
21255
90999-43065
Jet, Power
[01.1979 - 02.1979] 2A..AL11 ID=0.65 |
90999-43065 |
— | ||
|
21255
|
21255
90999-43085 Jet, PowerPOWER [08.1979 - 10.1979] 2A..AL11..3FC ID=0.85 |
90999-43085 |
US $5.53 |
||
|
21257B
|
21257B
21864-26020
Spring(For Pump Jet)
[01.1979 - 04.1982] 2A..AL11 |
21864-26020 |
— | ||
|
21271
|
21271
21271-26371 Screw, Idle Adjusting[01.1979 - 04.1982] 2A..AL11..GEN |
21271-26371 |
US $13.40 |
||
| replacement | |||||
|
21271
|
21271
21271-31590 Screw, Idle Adjusting[01.1979 - 04.1982] 2A..AL11..GEN |
21271-31590 |
US $13.25 |
||
|
21272
|
21272
21828-25180 Screw, 1St Idle Adjusting[01.1979 - 08.1980] 2A..AL11 |
21828-25180 |
US $3.06 |
||
|
21272
|
21272
21844-33010
Screw, 1St Idle Adjusting
[08.1980 - 04.1982] 2A..AL11 |
21844-33010 |
— | ||
|
21273
|
21273
21844-33010
Screw, 1St Idle Adjusting
[01.1979 - 04.1982] 2A..AL11 |
21844-33010 |
— | ||
|
21291
|
21291
21291-34320
Glass, Level Gage
[01.1979 - 04.1982] 2A..AL11 |
21291-34320 |
— | ||
|
21301
|
21301
21301-15020 Valve Sub-Assy, Needle[04.1980 - 04.1982] 2A..AL11 |
21301-15020 |
US $36.11 |
||
|
21301
|
21301
21301-15080 Valve Sub-Assy, NeedleNEEDLE [08.1979 - 09.1979] 2A..AL11..3FC |
21301-15080 |
US $33.92 |
||
| replacement | |||||
|
21301
|
21301
21301-15020 Valve Sub-Assy, Needle[08.1979 - 09.1979] 2A..AL11..3FC |
21301-15020 |
US $36.11 |
||
|
21301
|
21301
21301-26350 Valve Sub-Assy, Needle[01.1979 - 03.1979] 2A..AL11 |
21301-26350 |
US $27.52 |
||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[01.1979 - 04.1982] 2A..AL11 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[01.1979 - 04.1982] 2A..AL11 |
21314-11020 |
US $3.84 |
||
|
21335
|
21335
21335-38310 Valve, ThermostaticTHERMOSTATIC [01.1979 - 04.1982] 2A..AL11 |
21335-38310 |
US $33.05 |
||
|
21341
|
21341
21304-30010
Valve, Power
[01.1979 - 04.1982] 2A..AL11 |
21304-30010 |
— | ||
|
21351
|
21351
21351-33080
Piston, Power
[01.1979 - 04.1982] 2A..AL11 |
21351-33080 |
— | ||
|
21353
|
21353
21353-33010
Plunger, Pump
[01.1979 - 04.1982] 2A..AL11 |
21353-33010 |
— | ||
| replacement | |||||
|
21353
|
21353
21353-16510
Plunger, Pump
[01.1979 - 04.1982] 2A..AL11 |
21353-16510 |
— | ||
|
21414
|
21414
21054-14050
Shaft, Choke
[08.1979 - 02.1980] 2A..AL11..3FC |
21054-14050 |
— | ||
|
21414
|
21414
21054-14051
Shaft, Choke
[08.1980 - 04.1982] 2A..AL11..3FC |
21054-14051 |
— | ||
|
21538
|
21538
21538-31010 Retainer, Ball Check[01.1979 - 04.1982] 2A..AL11 |
21538-31010 |
US $4.37 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[01.1979 - 04.1982] 2A..AL11 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-33010 Gasket, Venturi[01.1979 - 04.1982] 2A..AL11 1ST |
21614-33010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-16280 Gasket, Venturi[01.1979 - 04.1982] 2A..AL11 1ST |
21614-16280 |
US $2.52 |
||
|
21614
|
21614
21614-33080 Gasket, Venturi[01.1979 - 04.1982] 2A..AL11 2ND |
21614-33080 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21615-16280 Gasket, Venturi[01.1979 - 04.1982] 2A..AL11 2ND |
21615-16280 |
US $3.19 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[01.1979 - 04.1982] 2A..AL11 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[03.1979 - 04.1982] 2A..AL11 |
21618-14010 |
— | ||
|
21618
|
21618
21618-24030
Gasket, Needle Valve Seat
[01.1979 - 03.1979] 2A..AL11 |
21618-24030 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[01.1979 - 04.1982] 2A..AL11 |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-26510
Gasket, Air Horn
[01.1979 - 04.1982] 2A..AL11 |
21622-26510 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-15310
Gasket, Air Horn
[01.1979 - 04.1982] 2A..AL11 |
21622-15310 |
— | ||
|
21623
|
21623
21623-25180
Gasket, Body Flange
[01.1979 - 04.1982] 2A..AL11 |
21623-25180 |
— | ||
| replacement | |||||
|
21623
|
21623
21623-16280
Gasket, Body Flange
[01.1979 - 04.1982] 2A..AL11 |
21623-16280 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[01.1979 - 04.1982] 2A..AL11 |
21655-60200 |
US $9.90 |
||
|
21641
|
21641
21641-23012
Gasket(For Thermostatic Valve Cover)
[01.1979 - 04.1982] 2A..AL11 |
21641-23012 |
— | ||
|
21645
|
21645
21645-33080
Gasket, Diaphragm, Cap
[01.1979 - 04.1982] 2A..AL11 |
21645-33080 |
— | ||
| replacement | |||||
|
21645
|
21645
21645-41010
Gasket, Diaphragm, Cap
[01.1979 - 04.1982] 2A..AL11 |
21645-41010 |
— | ||
|
21647
|
21647
21649-33080
Gasket, Diaphragm Housing Cap
[01.1979 - 04.1982] 2A..AL11 |
21649-33080 |
— | ||
|
21649
|
21649
21641-33011
Gasket(For Pump Discharge Weight Stopper)
[01.1979 - 04.1982] 2A..AL11 |
21641-33011 |
— | ||
|
21659
|
21659
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[01.1979 - 04.1982] 2A..AL11 |
21641-24030 |
— | ||
|
21698
|
21698
21669-25010
Diaphragm
[01.1979 - 04.1982] 2A..AL11 |
21669-25010 |
— | ||
|
21699
|
21699
21699-21061
Boot(For Pump Plunger)
[01.1979 - 08.1980] 2A..AL11 |
21699-21061 |
— | ||
| replacement | |||||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[01.1979 - 08.1980] 2A..AL11 |
21699-28150 |
US $14.50 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[08.1980 - 04.1982] 2A..AL11 |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[01.1979 - 04.1982] 2A..AL11 |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[01.1979 - 04.1982] 2A..AL11 |
21723-21030 |
US $4.19 |
||
|
21724
|
21724
21723-21030 Spring, Idle Adjusting[01.1979 - 04.1982] 2A..AL11 |
21723-21030 |
US $4.19 |
||
|
21726
|
21726
21723-21030 Spring, Idle Adjusting[01.1979 - 04.1982] 2A..AL11 |
21723-21030 |
US $4.19 |
||
|
21728
|
21728
21756-25181 Spring, Throttle Valve Return[08.1979 - 02.1980] 2A..AL11..LHD..3FC |
21756-25181 |
US $9.17 |
||
|
21728
|
21728
21864-14010
Spring, Throttle Valve Return
[01.1979 - 02.1979] 2A..AL11 |
21864-14010 |
— | ||
|
21734
|
21734
21734-33080 Spring, Power Piston[01.1979 - 04.1982] 2A..AL11 |
21734-33080 |
US $9.17 |
||
|
21735
|
21735
21735-21032 Spring, Pump Arm[01.1979 - 04.1982] 2A..AL11 |
21735-21032 |
US $4.51 |
||
|
21751
|
21751
21894-15010
Union, Nipple
[01.1979 - 04.1982] 2A..AL11 |
21894-15010 |
— | ||
|
21756
|
21756
21756-15080 Spring, Back(For Throttle Shaft)[08.1979 - 02.1980] 2A..AL11..3FC |
21756-15080 |
US $10.05 |
||
|
21763
|
21763
21763-26350 Pin, Float Lever[01.1979 - 04.1982] 2A..AL11 |
21763-26350 |
US $4.08 |
||
|
21781
|
21781
21781-15230 Plug, Main Passage(For Carburetor Jet)[09.1981 - 04.1982] 2A..AL11 |
21781-15230 |
US $5.82 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[01.1979 - 09.1981] 2A..AL11 |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[01.1979 - 09.1981] 2A..AL11 |
21781-16510 |
— | ||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[01.1979 - 04.1982] 2A..AL11 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[01.1979 - 04.1982] 2A..AL11 |
21791-13010 |
from US $1.76 |
||
|
21794
|
21794
21794-40070 Ring, Retainer, No.1(For Throttle Shaft)[01.1979 - 04.1982] 2A..AL11 |
21794-40070 |
US $2.77 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[01.1979 - 04.1982] 2A..AL11 |
21811-11060 |
US $9.46 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[01.1979 - 04.1982] 2A..AL11 |
21826-31012 |
— | ||
|
21828
|
21828
21842-14010
Screw, 1St Idle Set
[01.1979 - 08.1980] 2A..AL11 |
21842-14010 |
— | ||
|
21831
|
21831
21821-15060 Screw, 2Nd Throttle Valve Set[04.1981 - 04.1982] 2A..AL11 |
21821-15060 |
US $3.06 |
||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[01.1979 - 04.1981] 2A..AL11 |
21842-33010 |
— | ||
|
21833
|
21833
21833-33010
Screw, Set, No.1(For Carburetor Body Set)
[01.1979 - 04.1982] 2A..AL11 |
21833-33010 |
— | ||
|
21834
|
21834
21834-31140
Screw, Set, No.2(For Carburetor Body Set)
[01.1979 - 04.1982] 2A..AL11 W/HOLE |
21834-31140 |
— | ||
|
21834
|
21834
21844-26400 Screw, Set(For 1St Idle Cam Follower Set)[01.1979 - 04.1982] 2A..AL11 |
21844-26400 |
US $4.95 |
||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[01.1979 - 04.1982] 2A..AL11 |
21842-33010 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[01.1979 - 04.1982] 2A..AL11 |
21852-30010 |
US $4.22 |
||
|
21859
|
21859
21859-21030
Nut, Choke Shaft Set
[08.1979 - 02.1980] 2A..AL11..3FC |
21859-21030 |
— | ||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[01.1979 - 04.1982] 2A..AL11 |
21881-60010 |
US $3.79 |
||
|
21882
|
21882
21888-21060 Washer, Spring[08.1979 - 02.1980] 2A..AL11..3FC |
21888-21060 |
US $3.35 |
||
|
21934
|
21934
21062-14010
Solenoid, Throttle Valve
[01.1979 - 04.1982] 2A..AL11 |
21062-14010 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[01.1979 - 04.1982] 2A..AL11 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21649-38010 Gasket[01.1979 - 04.1982] 2A..AL11 |
21649-38010 |
US $3.14 |
||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2182126400
|
2182126400
21821-26400 Screw, 2nd Throttle Valve Set |
21821-26400 |
US $3.20 |
||
|
2182128010
|
2182128010
21821-28010
Screw, 2nd Throttle Valve Set
|
21821-28010 |
— | ||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182138010
|
2182138010
21821-38010
Screw, 2nd Throttle Valve Set
|
21821-38010 |
— | ||
|
2183231020
|
2183231020
21832-31020
Screw(For Choke Lever Adapter Set)
|
21832-31020 |
— | ||
|
2183360012
|
2183360012
21833-60012 Screw, Set, No.1(For Carburetor Body Set) |
21833-60012 |
US $3.49 |
||
|
2184414010
|
2184414010
21844-14010
Screw, Choke Lever
|
21844-14010 |
— | ||
|
9111140618
|
9111140618
91111-40618 New Genuine Part |
91111-40618 |
US $2.18 |
||
| replacement | |||||
|
9111140618
|
9111140618
91111-50618 New Genuine Part |
91111-50618 |
US $2.18 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
