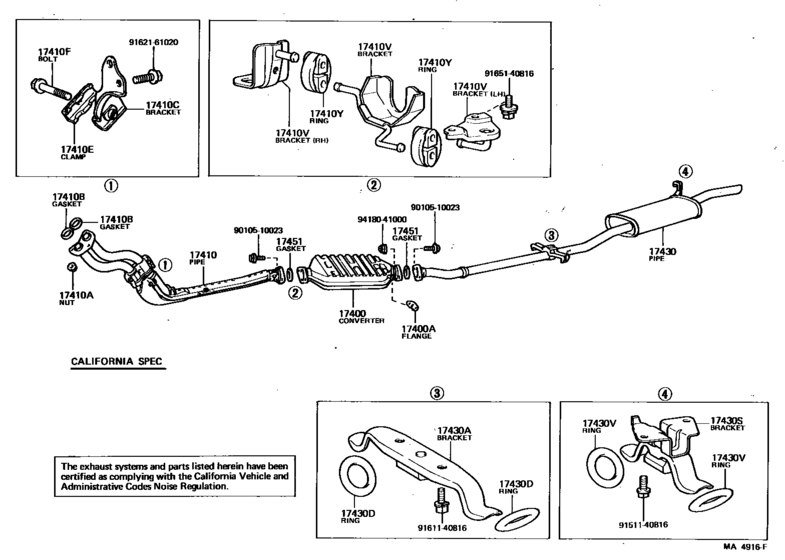

Exhaust Pipe ([08.1980 - 07.1982] (8008-8207)3AC) Diagram Toyota TERCEL
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- AL12
- grade
- DLX
- body
- 2DS
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17040-15020
Converter Assy, W/catalyst
[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
17040-15020 |
— | ||
|
17400
|
17400
18450-13010
Converter Assy, W/catalyst
[08.1979 - 08.1981] 1AC,3AC..AL1# SUPPLY PARTS |
18450-13010 |
— | ||
| replacements | |||||
|
17400
|
17400
90917-06045 Gasket, Exhaust Pipe[08.1979 - 08.1981] 1AC,3AC..AL1# SUPPLY PARTS |
90917-06045 |
from US $1.70 |
||
|
17400
|
17400
17420-13011 Pipe Assy, Exhaust, Center[08.1979 - 08.1981] 1AC,3AC..AL1# SUPPLY PARTS |
17420-13011 |
US $41.79 |
||
|
17400
|
17400
18450-13011 Converter Assy, Monolithic[08.1979 - 08.1981] 1AC,3AC..AL1# SUPPLY PARTS |
18450-13011 |
US $786.24 |
||
|
17400A
|
17400A
18491-34010 Flange, Thermosenser InletTHERMOSENSER INLET [08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
18491-34010 |
US $8.88 |
||
|
17410
|
17410
17410-15010 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1979 - 07.1982] 1AC,3AC..AL1# |
17410-15010 |
US $177.63 |
||
|
17410
|
17410
17410-15040 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1980 - 07.1982] 3AC..AL12..MTM..USA CALIFORNIA SPEC |
17410-15040 |
US $202.38 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[08.1979 - 07.1982] 1AC,3A#..AL1# |
90179-10010 |
from US $1.58 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1979 - 07.1982] 1AC,3A#..AL1# |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1979 - 07.1982] 1AC,3A#..AL1# |
90917-06039 |
from US $2.36 |
||
|
17410B
|
17410B
90917-06006
Gasket, Exhaust Pipe
[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
90917-06006 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06037 Gasket, Exhaust Pipe[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
90917-06037 |
from US $3.20 |
||
|
17410C
|
17410C
17571-15010 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1979 - 07.1982] 1AC,3A#..AL1# |
17571-15010 |
US $10.92 |
||
|
17410C
|
17410C
17571-15030 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
17571-15030 |
US $12.96 |
||
|
17410E
|
17410E
90917-04040 Clamp No.1, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
90917-04040 |
US $7.28 |
||
|
17410F
|
17410F
91511-61065 Bolt Or Ring, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
91511-61065 |
US $3.20 |
||
|
17410V
|
17410V
17503-15010 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [08.1979 - 07.1982] 1AC,3AC..AL1# CTR |
17503-15010 |
US $34.94 |
||
|
17410V
|
17410V
17505-15010 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [08.1980 - 07.1982] 3AC..AL12..MTM LH SIDE |
17505-15010 |
US $11.50 |
||
|
17410V
|
17410V
57028-16010
Bracket, Exhaust Pipe Front (For Rear)
[08.1979 - 07.1982] 1AC,3AC..AL1# RH SIDE |
57028-16010 |
— | ||
|
17410Y
|
17410Y
17565-15010 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1979 - 07.1982] 1AC,3AC..AL1# |
17565-15010 |
US $10.19 |
||
|
17430
|
17430
17430-15031 Pipe Assy, Exhaust, Tail[08.1980 - 08.1981] 3AC..AL12..USA |
17430-15031 |
US $391.66 |
||
| replacement | |||||
|
17430
|
17430
17430-15041 Pipe Assy, Exhaust, Tail[08.1980 - 08.1981] 3AC..AL12..USA |
17430-15041 |
US $391.66 |
||
|
17430
|
17430
17430-15032 Pipe Assy, Exhaust, Tail[08.1981 - 07.1982] 3AC..AL12..USA |
17430-15032 |
US $372.74 |
||
| replacement | |||||
|
17430
|
17430
17430-15042 Pipe Assy, Exhaust, Tail[08.1981 - 07.1982] 3AC..AL12..USA |
17430-15042 |
US $372.74 |
||
|
17430
|
17430
17430-15041 Pipe Assy, Exhaust, Tail[08.1980 - 08.1981] 3AC..AL12..3AC; 3AC..AL12..USA COLD SPEC |
17430-15041 |
US $391.66 |
||
|
17430
|
17430
17430-15042 Pipe Assy, Exhaust, Tail[08.1981 - 07.1982] 3AC..AL12..3AC; 3AC..AL12..USA COLD SPEC |
17430-15042 |
US $372.74 |
||
|
17430
|
17430
17430-15060 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
17430-15060 |
US $391.66 |
||
|
17430A
|
17430A
17506-15010 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1979 - 07.1982] 1AC,3A#..AL1# |
17506-15010 |
US $11.50 |
||
|
17430D
|
17430D
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1979 - 07.1982] 1AC,3A#..AL1# |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17507-15010 Bracket, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [08.1979 - 07.1982] 1AC,3A#..AL1# |
17507-15010 |
US $11.50 |
||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1979 - 07.1982] 1AC,3A#..AL1# |
90301-34207 |
US $9.92 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[08.1980 - 07.1982] 3AC..AL12..USA RR,CALIFORNIA SPEC |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[08.1980 - 07.1982] 3AC..AL12..USA RR,CALIFORNIA SPEC |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06018 Gasket, Exhaust Pipe[08.1980 - 07.1982] 3AC..AL12..USA FR,CALIFORNIA SPEC |
90917-06018 |
US $6.26 |
||
| replacement | |||||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[08.1980 - 07.1982] 3AC..AL12..USA FR,CALIFORNIA SPEC |
90917-06046 |
from US $3.90 |
||
|
17451
|
17451
90917-06020
Gasket, Exhaust Pipe, Center
[08.1981 - 07.1982] 3AC..AL12 FR |
90917-06020 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06044 Gasket, Exhaust Pipe, Center[08.1981 - 07.1982] 3AC..AL12 FR |
90917-06044 |
from US $6.55 |
||
|
17451
|
17451
90917-06023
Gasket, Exhaust Pipe
[08.1981 - 07.1982] 3AC..AL12 RR |
90917-06023 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06041 Gasket, Exhaust Pipe[08.1981 - 07.1982] 3AC..AL12 RR |
90917-06041 |
from US $6.20 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9151140816
|
9151140816
91511-40816 New Genuine Part |
91511-40816 |
US $1.75 |
||
| replacement | |||||
|
9151140816
|
9151140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
