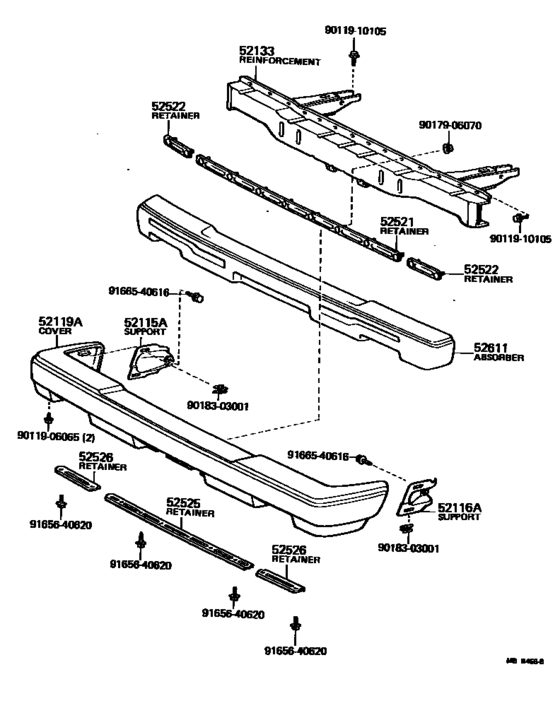

Front Bumper & Bumper Stay ([08.1980 - 07.1982] (8008-8207)) Diagram Toyota TERCEL
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- AL12
- grade
- DLX
- body
- 2DS
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115A
|
52115A
52115-16040
Support, Front Bumper Side, Rh
[08.1980 - 07.1982] AL12 |
52115-16040 |
— | ||
|
52116A
|
52116A
52116-16040
Support, Front Bumper Side, Lh
[08.1980 - 07.1982] AL12 |
52116-16040 |
— | ||
|
52119A
|
52119A
52119-16020
Cover, Front Bumper
[08.1979 - 08.1980] AL1# |
52119-16020 |
— | ||
|
52119A
|
52119A
52119-16021
Cover, Front Bumper
[08.1980 - 07.1982] AL12 |
52119-16021 |
— | ||
|
52133
|
52133
52021-16020
Reinforcement, Front Bumper
[08.1979 - 08.1980] AL1# |
52021-16020 |
— | ||
|
52133
|
52133
52021-16021
Reinforcement, Front Bumper
[08.1980 - 03.1982] AL12 |
52021-16021 |
— | ||
| replacements | |||||
|
52133
|
52133
91651-60618 Bolt(For Oil Receiver Pipe)[08.1980 - 03.1982] AL12 |
91651-60618 |
from US $1.29 |
||
|
52133
|
52133
52021-16022
Reinforcement, Front Bumper
[08.1980 - 03.1982] AL12 |
52021-16022 |
— | ||
|
52521
|
52521
52521-16010
Retainer, Front Bumper, Upper Center
[08.1979 - 07.1982] AL1# |
52521-16010 |
— | ||
|
52522
|
52522
52522-12010
Retainer, Front Bumper Upper Side
[08.1980 - 07.1982] AL12 |
52522-12010 |
— | ||
|
52522
|
52522
52522-16010
Retainer, Front Bumper Upper Side
[08.1979 - 08.1980] AL1# |
52522-16010 |
— | ||
|
52525
|
52525
52525-16020
Retainer, Front Bumper, Lower Center
[08.1979 - 07.1982] AL1# |
52525-16020 |
— | ||
|
52526
|
52526
52526-16020 Retainer, Front Bumper, Lower Side Rh[08.1979 - 07.1982] AL1# |
52526-16020 |
US $9.61 |
||
|
52611
|
52611
52611-16020
Absorber, Front Bumper Energy
[08.1979 - 08.1980] AL1# |
52611-16020 |
— | ||
|
52611
|
52611
52611-16021
Absorber, Front Bumper Energy
[08.1980 - 07.1982] AL12 |
52611-16021 |
— | ||
|
9011906065
|
9011906065
90119-06065 New Genuine Part |
90119-06065 |
from US $1.28 |
||
|
9011910105
|
9011910105
90119-10105
New Genuine Part
|
90119-10105 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018303001
|
9018303001
90183-03001
New Genuine Part
|
90183-03001 |
— | ||
| replacement | |||||
|
9018303001
|
9018303001
90468-04038 CLIP |
90468-04038 |
US $1.49 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
