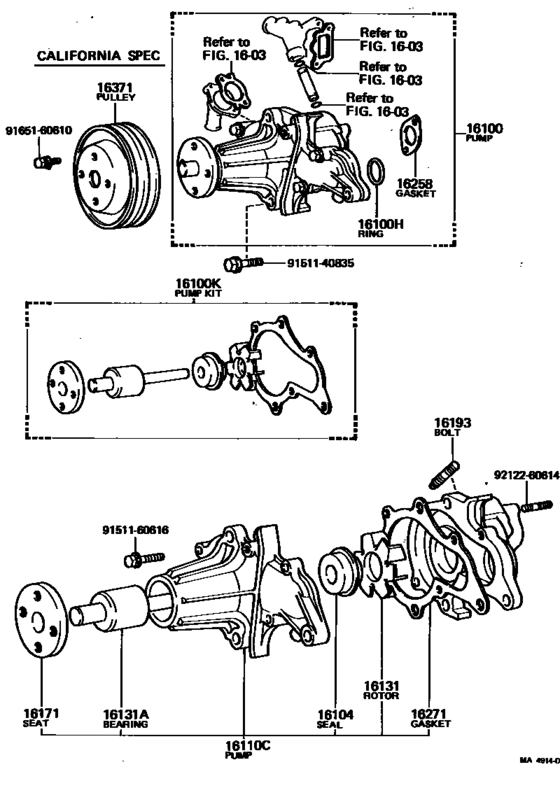

Water Pump ([08.1980 - 07.1982] (8008-8207)3AC) Diagram Toyota TERCEL
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- AL12
- grade
- DLX
- body
- 2DS
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-19026 Pump Assy, Engine WaterWATER [08.1980 - 12.1981] 3A#..AL12 |
16100-19026 |
US $190.74 |
||
| replacement | |||||
|
16100
|
16100
16100-19086
Pump Assy, Engine Water
[08.1980 - 12.1981] 3A#..AL12 |
16100-19086 |
— | ||
|
16100
|
16100
16100-19065 Pump Assy, Engine Water[08.1980 - 12.1981] 3AC..AL12..USA CALIFORNIA SPEC |
16100-19065 |
US $203.84 |
||
| replacement | |||||
|
16100
|
16100
16100-19067
Pump Assy, Engine Water
[08.1980 - 12.1981] 3AC..AL12..USA CALIFORNIA SPEC |
16100-19067 |
— | ||
|
16100H
|
16100H
96710-02035 Ring, O(For Water Pump)[08.1979 - 12.1981] 1AC,3A#..AL1# |
96710-02035 |
US $3.49 |
||
| replacement | |||||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[08.1979 - 12.1981] 1AC,3A#..AL1# |
96761-24035 |
from US $2.85 |
||
|
16100K
|
16100K
04161-15010 Pump Kit, Water[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
04161-15010 |
US $64.21 |
||
| replacement | |||||
|
16100K
|
16100K
04161-15011
Pump Kit, Water
[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
04161-15011 |
— | ||
|
16100K
|
16100K
04161-15020 Pump Kit, Water[08.1980 - 07.1982] 3A#..AL12 |
04161-15020 |
US $57.66 |
||
| replacement | |||||
|
16100K
|
16100K
04161-15021
Pump Kit, Water
[08.1980 - 07.1982] 3A#..AL12 |
04161-15021 |
— | ||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[02.1980 - 07.1982] 3A#..AL12;1AC..AL10..USA |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[02.1980 - 07.1982] 3A#..AL12;1AC..AL10..USA |
16104-15020 |
US $22.13 |
||
|
16110C
|
16110C
16110-15010 Pump Assy, Water, W/o CoverWATER, W/O COVER [08.1980 - 06.1982] 3A#..AL12 |
16110-15010 |
US $136.86 |
||
| replacement | |||||
|
16110C
|
16110C
16110-19036
Pump Assy, Water, W/o Cover
[08.1980 - 06.1982] 3A#..AL12 |
16110-19036 |
— | ||
|
16110C
|
16110C
16110-19015 Pump Assy, Water, W/o Cover[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
16110-19015 |
US $158.70 |
||
| replacement | |||||
|
16110C
|
16110C
16110-19016
Pump Assy, Water, W/o Cover
[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
16110-19016 |
— | ||
|
16131
|
16131
16131-15010
Rotor, Water Pump
[08.1979 - 07.1982] 1AC,3A#..AL1# |
16131-15010 |
— | ||
|
16131A
|
16131A
90369-30014 Bearing, Water Pump[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
90369-30014 |
US $29.70 |
||
| replacement | |||||
|
16131A
|
16131A
90029-36835 Bearing, Water Pump[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
90029-36835 |
US $37.56 |
||
|
16131A
|
16131A
90369-30024
Bearing, Water Pump
[08.1980 - 07.1982] 3A#..AL12 |
90369-30024 |
— | ||
|
16171
|
16171
16171-15011 Seat, Water Pump Pulley[08.1980 - 07.1982] 3A#..AL12 |
16171-15011 |
US $13.83 |
||
|
16171
|
16171
16171-24031 Seat, Water Pump Pulley[08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
16171-24031 |
US $14.71 |
||
|
16193
|
16193
16193-15010 Bolt,stud(For Oil Pump)[08.1979 - 07.1982] 1AC,3A#..AL1# |
16193-15010 |
US $5.76 |
||
|
16258
|
16258
16258-15010 Gasket(For Heater Return)[08.1979 - 12.1981] 1AC,3A#..AL1# |
16258-15010 |
US $6.70 |
||
| replacement | |||||
|
16258
|
16258
16258-15011 Gasket(For Heater Return)[08.1979 - 12.1981] 1AC,3A#..AL1# |
16258-15011 |
US $8 |
||
|
16271
|
16271
16124-15010
Gasket, Water Pump Cover
[08.1979 - 07.1982] 1AC,3A#..AL1# |
16124-15010 |
— | ||
| replacement | |||||
|
16271
|
16271
16124-16020 Gasket, Water Pump Cover[08.1979 - 07.1982] 1AC,3A#..AL1# |
16124-16020 |
from US $4.66 |
||
|
16371
|
16371
16371-15011 Pulley, Fan[08.1980 - 07.1982] 3A#..AL12 |
16371-15011 |
US $38.29 |
||
|
16371
|
16371
16371-15030 Pulley, FanFAN [08.1980 - 07.1982] 3AC..AL12..USA CALIFORNIA SPEC |
16371-15030 |
US $46.59 |
||
|
9151140835
|
9151140835
91511-40835
Bolt (for Pawl Stopper Plate)
|
91511-40835 |
— | ||
| replacement | |||||
|
9151140835
|
9151140835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9212260614
|
9212260614
92122-60614 Bolt, Stud(For Oil Strainer) |
92122-60614 |
US $2.56 |
||
