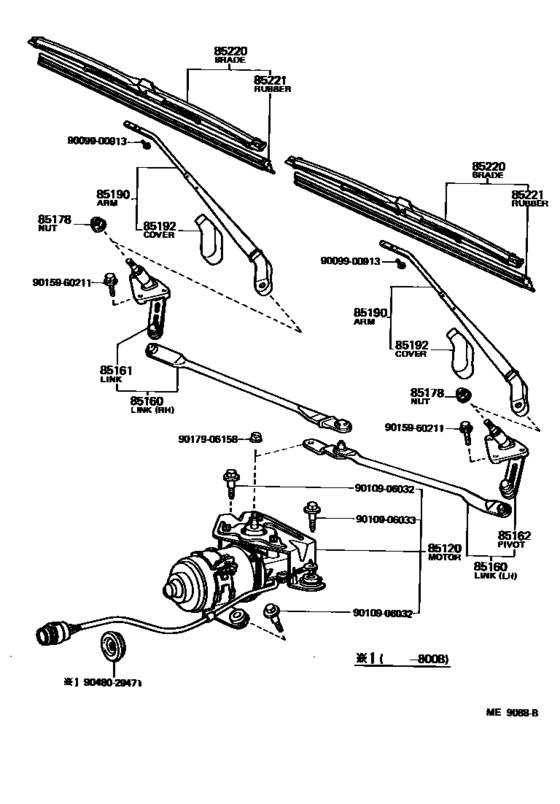

Windshield Wiper ([08.1980 - 07.1982] (8008-8207)) Diagram Toyota TERCEL
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- AL12
- grade
- DLX
- body
- 2DS
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85120
|
85120
85120-16050 Motor And Bracket Assy, Windshield Wiper[08.1980 - 07.1982] AL12..USA |
85120-16050 |
US $340.70 |
||
| replacement | |||||
|
85120
|
85120
85120-16060 Motor And Bracket Assy, Windshield Wiper[08.1980 - 07.1982] AL12..USA |
85120-16060 |
US $390.21 |
||
|
85120
|
85120
85120-16060 Motor And Bracket Assy, Windshield Wiper[08.1980 - 07.1982] AL12 COLD SPEC |
85120-16060 |
US $390.21 |
||
|
85160
|
85160
85160-16030
Link Assy, Windshield Wiper
[08.1979 - 08.1980] AL1# COLD SPEC |
85160-16030 |
— | ||
| replacement | |||||
|
85160
|
85160
85160-16031
Link Assy, Windshield Wiper
[08.1979 - 08.1980] AL1# COLD SPEC |
85160-16031 |
— | ||
|
85160
|
85160
85160-16050 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 07.1982] AL12..USA LH |
85160-16050 |
US $74.26 |
||
|
85160
|
85160
85160-16060 Link Assy, Windshield Wiper[08.1980 - 07.1982] AL12 LH,COLD SPEC |
85160-16060 |
US $58.82 |
||
| replacement | |||||
|
85160
|
85160
85160-16061 Link Assy, Windshield Wiper[08.1980 - 07.1982] AL12 LH,COLD SPEC |
85160-16061 |
US $85.90 |
||
|
85160
|
85160
85160-16090 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 07.1982] AL12..USA RH |
85160-16090 |
US $85.90 |
||
|
85160
|
85160
85160-16100 Link Assy, Windshield Wiper[08.1980 - 07.1982] AL12 RH,COLD SPEC |
85160-16100 |
US $58.82 |
||
| replacement | |||||
|
85160
|
85160
85160-16101 Link Assy, Windshield Wiper[08.1980 - 07.1982] AL12 RH,COLD SPEC |
85160-16101 |
US $101.92 |
||
|
85161
|
85161
85161-16031
Pivot, Windshield Wiper Link, No.1
[08.1979 - 08.1980] AL1# COLD SPEC |
85161-16031 |
— | ||
|
85161
|
85161
85161-16061
Pivot, Windshield Wiper Link, No.1
[08.1980 - 07.1982] AL12 COLD SPEC |
85161-16061 |
— | ||
|
85162
|
85162
85162-16031
Pivot, Windshield Wiper Link, No.2
[08.1979 - 08.1980] AL1# COLD SPEC |
85162-16031 |
— | ||
|
85162
|
85162
85162-16061
Pivot, Windshield Wiper Link, No.2
[08.1980 - 07.1982] AL12 COLD SPEC |
85162-16061 |
— | ||
|
85178
|
85178
90179-08123 Nut (For Front Wiper Arm Setting)[08.1979 - 07.1982] AL1# |
90179-08123 |
from US $2.13 |
||
|
85190
|
85190
85190-16030 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1979 - 08.1980] AL1# |
85190-16030 |
US $49.36 |
||
|
85190
|
85190
85190-16050 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 07.1982] AL12 |
85190-16050 |
US $42.08 |
||
|
85192
|
85192
85192-14010 Cover, Rear Wiper Arm[08.1979 - 07.1982] AL1# |
85192-14010 |
from US $4.50 |
||
|
85220
|
85220
85220-16020
Blade Assy, Windshield Wiper
[08.1979 - 08.1980] AL1# |
85220-16020 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-12190
Blade Assy, Windshield Wiper
[08.1979 - 08.1980] AL1# |
85220-12190 |
— | ||
|
85220
|
85220
85220-16050 Blade Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 10.1981] AL12 |
85220-16050 |
US $29.99 |
||
| replacement | |||||
|
85220
|
85220
85220-16040
Blade Assy, Windshield Wiper
[08.1980 - 10.1981] AL12 |
85220-16040 |
— | ||
|
85221
|
85221
85221-16020
Blade, Rear Wiper
[08.1979 - 08.1980] AL1# |
85221-16020 |
— | ||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[08.1979 - 08.1980] AL1# |
85221-14H90 |
US $12.16 |
||
|
85221
|
85221
85221-16050 Blade, Windshield WiperWINDSHIELD WIPER [08.1980 - 07.1982] AL12 |
85221-16050 |
US $8.59 |
||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[08.1980 - 07.1982] AL12 |
85221-14H90 |
US $12.16 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
from US $2.48 |
||
|
9010906032
|
9010906032
90109-06032 New Genuine Part |
90109-06032 |
US $3.93 |
||
|
9010906033
|
9010906033
90109-06033
New Genuine Part
|
90109-06033 |
— | ||
|
9015960211
|
9015960211
90159-60211 New Genuine Part |
90159-60211 |
US $1.02 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9048029471
|
9048029471
90480-29471
New Genuine Part
|
90480-29471 |
— | ||
