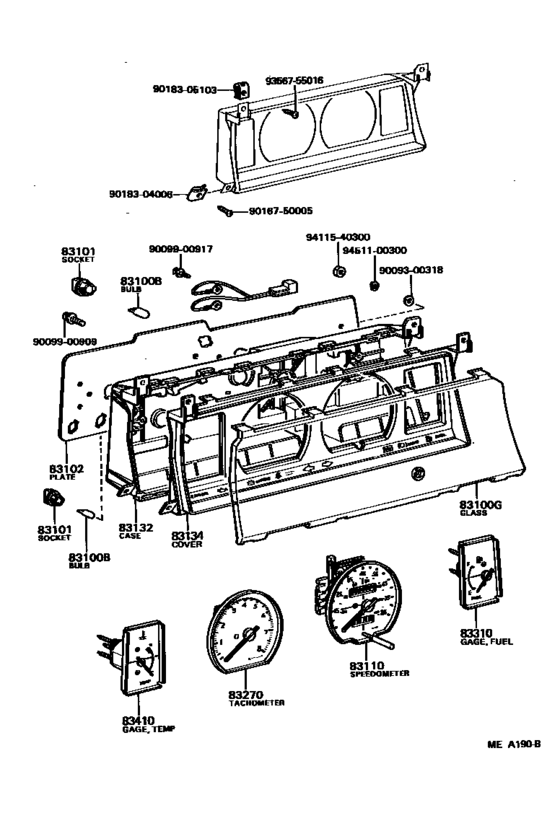

Meter ([08.1980 - 07.1982] (8008-8207)SR5) Diagram Toyota TERCEL
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Frame
- AL12
- grade
- SR5
- body
- 3DS
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 07.1982
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1979 - 07.1982] AL1# 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1979 - 07.1982] AL1# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1979 - 07.1982] AL1# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-16200
Glass, Combination Meter
[08.1979 - 08.1980] AL12..SR5 |
83138-16200 |
— | ||
|
83100G
|
83100G
83138-16290
Glass, Combination Meter
[08.1980 - 07.1982] AL12..SR5 |
83138-16290 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1979 - 07.1982] AL1# 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1979 - 07.1982] AL1# 12V 1.4W |
83101-14040 |
US $2.98 |
||
|
83102
|
83102
83247-16210
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1979 - 08.1980] AL1#..SR5 |
83247-16210 |
— | ||
|
83102
|
83102
83247-16390
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1980 - 08.1981] AL12..SR5..USA CALIFORNIA SPEC |
83247-16390 |
— | ||
|
83102
|
83102
83247-16430
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1980 - 07.1982] AL12..SR5 |
83247-16430 |
— | ||
|
83110
|
83110
83110-16181
Speedometer Assy
[08.1980 - 07.1982] AL12..SR5..USA |
83110-16181 |
— | ||
|
83110
|
83110
83110-16190
Speedometer Assy
[08.1979 - 08.1980] AL12..SR5 |
83110-16190 |
— | ||
|
83110
|
83110
83110-16250
Speedometer Assy
[08.1980 - 08.1981] AL12..SR5..USA CALIFORNIA SPEC |
83110-16250 |
— | ||
|
83132
|
83132
83132-16210
Case, Combination Meter
[08.1979 - 08.1980] AL1#..SR5 |
83132-16210 |
— | ||
|
83132
|
83132
83132-16350
Case, Combination Meter
[08.1980 - 08.1981] AL12..SR5..USA CALIFORNIA SPEC |
83132-16350 |
— | ||
|
83132
|
83132
83132-16370
Case, Combination Meter
[08.1980 - 07.1982] AL12..SR5 |
83132-16370 |
— | ||
|
83134
|
83134
83133-16150
Cover, Combination Meter, No.1
[08.1979 - 08.1980] AL1#..SR5 NO.1 |
83133-16150 |
— | ||
|
83134
|
83134
83133-16160
Cover, Combination Meter, No.1
[08.1979 - 08.1980] AL1#..SR5 NO.2 |
83133-16160 |
— | ||
|
83134
|
83134
83133-16310
Cover, Combination Meter, No.1
[08.1980 - 08.1981] AL12..SR5..USA CALIFORNIA SPEC |
83133-16310 |
— | ||
|
83134
|
83134
83133-16330
Cover, Combination Meter, No.1
[08.1980 - 07.1982] AL12..SR5 |
83133-16330 |
— | ||
|
83270
|
83270
83242-16080
Tachometer Assy, Engine
[08.1979 - 08.1980] AL1#..SR5 |
83242-16080 |
— | ||
|
83270
|
83270
83242-16090
Tachometer Assy, Engine
[08.1980 - 07.1982] AL12..SR5 |
83242-16090 |
— | ||
|
83310
|
83310
83243-16190
Gage Assy, Fuel Receiver
[08.1979 - 08.1980] AL1#..SR5 |
83243-16190 |
— | ||
|
83310
|
83310
83243-16290 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1980 - 07.1982] AL12..SR5..USA |
83243-16290 |
US $58.82 |
||
|
83410
|
83410
83244-16190
Gage Assy, Water Temperature Receiver
[08.1979 - 08.1980] AL1#..SR5 |
83244-16190 |
— | ||
|
83410
|
83410
83244-16210 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1980 - 07.1982] AL12..SR5 |
83244-16210 |
US $58.82 |
||
|
9009300318
|
9009300318
90093-00318
New Genuine Part
|
90093-00318 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9016750005
|
9016750005
90167-50005 New Genuine Part |
90167-50005 |
US $1.60 |
||
| replacement | |||||
|
9016750005
|
9016750005
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9018304006
|
9018304006
90183-04006 New Genuine Part |
90183-04006 |
US $1.22 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9411540300
|
9411540300
94115-40300
New Genuine Part
|
94115-40300 |
— | ||
|
9451100300
|
9451100300
94511-00300
New Genuine Part
|
94511-00300 |
— | ||
