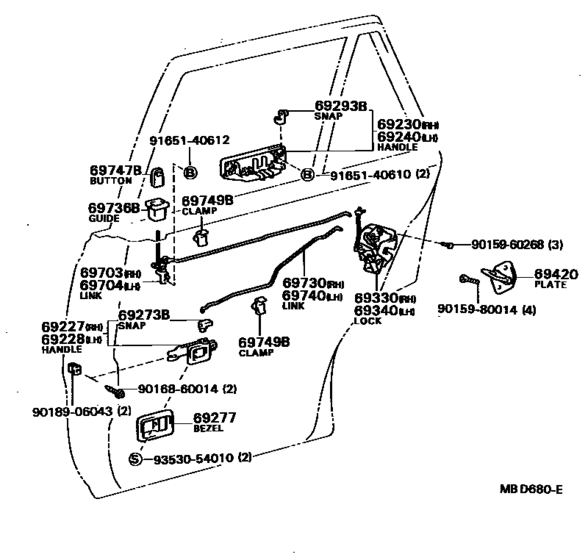

Rear Door Lock & Handle ([05.1982 - ] (8205- )5DS ; (8205- )AL25) Diagram Toyota TERCEL
- Year
- 1982 - 1984
- Sales region
- Europe
- Frame
- AL20
- grade
- DLX
- body
- SED
- ENGINE
- 2A
- TRANSMISSION
- ATM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 3FC
- No.of Doors
- 5DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69227
|
69227
69205-16040-02 Handle Sub-Assy, Front Door Inside, Lh[05.1982 - 08.1984] AL20,21..5DS DARK WINE,RED/MAROON,TRIM3# |
69205-16040-02 |
US $23.44 |
||
|
69227
|
69227
69205-16040-03 Handle Sub-Assy, Front Door Inside, Lh[05.1982 - 08.1984] AL25;AL20,21..5DS GRAY,GRAY,TRIM1# |
69205-16040-03 |
US $23.73 |
||
| replacement | |||||
|
69227
|
69227
69205-16040-13 Handle Sub-Assy, Front Door Inside, Lh[05.1982 - 08.1984] AL25;AL20,21..5DS GRAY,GRAY,TRIM1# |
69205-16040-13 |
US $23.73 |
||
|
69227
|
69227
69205-16040-06 Handle Sub-Assy, Front Door Inside, Lh[05.1982 - 08.1984] AL25;AL20,21..5DS BROWN,BROWN,TRIM4# |
69205-16040-06 |
US $23.73 |
||
|
69228
|
69228
69206-16040-02
Handle Sub-Assy, Front Door Inside, Rh
[05.1982 - 08.1984] AL20,21..5DS DARK WINE,RED/MAROON,TRIM3# |
69206-16040-02 |
— | ||
|
69228
|
69228
69206-16040-03 Handle Sub-Assy, Front Door Inside, Rh[05.1982 - 08.1984] AL25;AL20,21..5DS GRAY,GRAY,TRIM1# |
69206-16040-03 |
US $23.73 |
||
| replacement | |||||
|
69228
|
69228
69206-16040-13
Handle Sub-Assy, Front Door Inside, Rh
[05.1982 - 08.1984] AL25;AL20,21..5DS GRAY,GRAY,TRIM1# |
69206-16040-13 |
— | ||
|
69228
|
69228
69206-16040-06
Handle Sub-Assy, Front Door Inside, Rh
[05.1982 - 08.1984] AL25;AL20,21..5DS BROWN,BROWN,TRIM4# |
69206-16040-06 |
— | ||
|
69230
|
69230
69230-16010
Handle Assy, Rear Door Outside, Rh
[05.1982 - 01.1988] AL25;AL20,21..5DS |
69230-16010 |
— | ||
|
69240
|
69240
69240-16010
Handle Assy, Rear Door Outside, Lh
[05.1982 - 01.1988] AL25;AL20,21..5DS |
69240-16010 |
— | ||
|
69273B
|
69273B
69759-14050 Snap(For Rear Door Inside Handle)[05.1982 - 01.1988] AL25;AL20,21..5DS LH |
69759-14050 |
from US $2.24 |
||
|
69273B
|
69273B
69759-24070 Snap(For Rear Door Inside Handle)[05.1982 - 01.1988] AL25;AL20,21..5DS RH |
69759-24070 |
US $2.88 |
||
|
69277
|
69277
69277-32020-02 Bezel, Front Door Inside Handle[05.1982 - 08.1984] AL20,21..5DS DARK WINE,RED/MAROON,TRIM3# |
69277-32020-02 |
US $8.59 |
||
| replacement | |||||
|
69277
|
69277
69277-32020-12
Bezel, Front Door Inside Handle
[05.1982 - 08.1984] AL20,21..5DS DARK WINE,RED/MAROON,TRIM3# |
69277-32020-12 |
— | ||
|
69277
|
69277
69277-32020-06 Bezel, Front Door Inside Handle[05.1982 - 08.1984] AL25;AL20,21..5DS BROWN,BROWN,TRIM4# |
69277-32020-06 |
US $8.59 |
||
| replacement | |||||
|
69277
|
69277
69277-89104-B2 Bezel, Front Door Inside Handle (Blue Gray)[05.1982 - 08.1984] AL25;AL20,21..5DS BROWN,BROWN,TRIM4# |
69277-89104-B2 |
from US $6.56 |
||
|
69277
|
69277
69277-32020-13 Bezel, Front Door Inside Handle[05.1982 - 08.1984] AL25;AL20,21..5DS GRAY,GRAY,TRIM1# |
69277-32020-13 |
US $8.59 |
||
| replacement | |||||
|
69277
|
69277
69277-32020-01 Bezel, Front Door Inside Handle[05.1982 - 08.1984] AL25;AL20,21..5DS GRAY,GRAY,TRIM1# |
69277-32020-01 |
US $8.59 |
||
|
69293B
|
69293B
69293-16030
Snap, Front Door Outside Handle
[05.1982 - 01.1988] AL25;AL20,21..5DS RH |
69293-16030 |
— | ||
|
69293B
|
69293B
69293-16040
Snap, Front Door Outside Handle
[05.1982 - 01.1988] AL25;AL20,21..5DS LH |
69293-16040 |
— | ||
|
69330
|
69330
69330-16030 Lock Assy, Rear Door, Rh[05.1982 - 08.1984] AL20,21..5DS |
69330-16030 |
US $113.57 |
||
|
69340
|
69340
69340-16030 Lock Assy, Rear Door, Lh[05.1982 - 08.1984] AL20,21..5DS |
69340-16030 |
US $113.57 |
||
|
69420
|
69420
69410-14050
Plate Assy, Front Door Lock Striker
[05.1982 - 05.1986] AL25;AL20,21..5DS |
69410-14050 |
— | ||
| replacement | |||||
|
69420
|
69420
69410-20070 Plate Assy, Front Door Lock Striker[05.1982 - 05.1986] AL25;AL20,21..5DS |
69410-20070 |
US $24.29 |
||
|
69703
|
69703
69770-16020 Link Sub-Assy, Rear Door Locking Control, Rh[05.1982 - 12.1982] AL20,21..5DS;AL25..EUR,GEN |
69770-16020 |
US $18.05 |
||
| replacement | |||||
|
69703
|
69703
69770-16030
Link Sub-Assy, Rear Door Locking Control, Rh
[05.1982 - 12.1982] AL20,21..5DS;AL25..EUR,GEN |
69770-16030 |
— | ||
|
69703
|
69703
69770-16030
Link Sub-Assy, Rear Door Locking Control, Rh
[12.1982 - 10.1985] AL25;AL20,21..5DS |
69770-16030 |
— | ||
|
69704
|
69704
69780-16020 Link Sub-Assy, Rear Door Locking Control, Lh[05.1982 - 12.1982] AL20,21..5DS;AL25..EUR,GEN |
69780-16020 |
US $18.05 |
||
| replacement | |||||
|
69704
|
69704
69780-16030
Link Sub-Assy, Rear Door Locking Control, Lh
[05.1982 - 12.1982] AL20,21..5DS;AL25..EUR,GEN |
69780-16030 |
— | ||
|
69704
|
69704
69780-16030
Link Sub-Assy, Rear Door Locking Control, Lh
[12.1982 - 10.1985] AL25;AL20,21..5DS |
69780-16030 |
— | ||
|
69730
|
69730
69713-16020 Link Assy, Rear Door Open Control, Rh[05.1982 - 01.1988] AL25;AL20,21..5DS |
69713-16020 |
US $8.74 |
||
|
69736B
|
69736B
69736-22021
Guide, Front Door Lock Link
[05.1982 - 08.1984] AL25;AL20,21..5DS |
69736-22021 |
— | ||
|
69740
|
69740
69714-16020 Link Assy, Rear Door Open Control, Lh[05.1982 - 01.1988] AL25;AL20,21..5DS |
69714-16020 |
US $8.74 |
||
|
69747B
|
69747B
69741-32010-01 Knob, Front Door Lock Control[05.1982 - 05.1985] AL25;AL20,21..5DS BLACK,BLACK,TRIM1#,3#,4# |
69741-32010-01 |
US $4.51 |
||
| replacement | |||||
|
69747B
|
69747B
69741-32010-20 Knob, Front Door Lock Control[05.1982 - 05.1985] AL25;AL20,21..5DS BLACK,BLACK,TRIM1#,3#,4# |
69741-32010-20 |
US $4.89 |
||
|
69749B
|
69749B
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[05.1982 - 01.1988] AL25;AL20,21..5DS |
69749-30020 |
US $4.48 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.08 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9016860014
|
9016860014
90168-60014 New Genuine Part |
90168-60014 |
US $1.60 |
||
|
9018906043
|
9018906043
90189-06043 CLIP |
90189-06043 |
US $1.92 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.82 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
