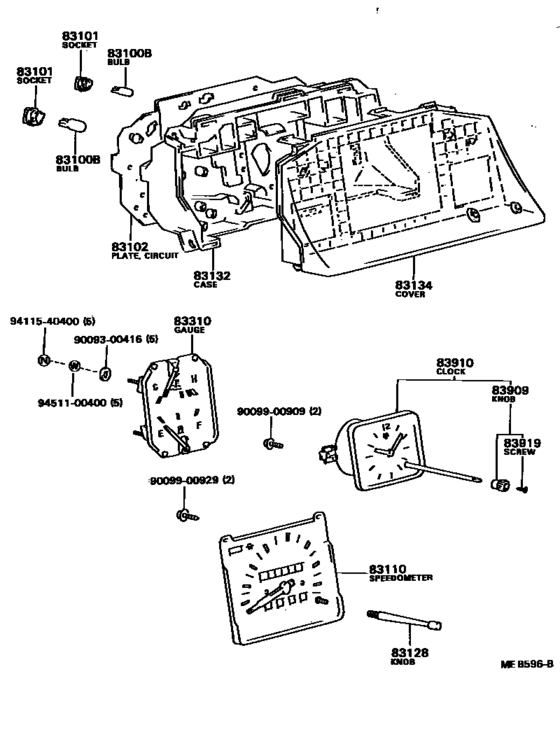

Meter ([05.1982 - ] (8205- )RHD..GEN) Diagram Toyota TERCEL
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- AL20
- grade
- DLX
- body
- SED
- ENGINE
- 2A
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- TERCEL
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-28010
Bulb, Combination Meter, No.1
[09.1983 - 08.1984] AL20,25..GEN 12V 3.4W W(GREEN CAP) |
83109-28010 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1982 - 01.1988] AL2# 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1982 - 01.1988] AL2# 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1982 - 01.1988] AL2# 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1982 - 01.1988] AL20,25..RHD 12V 3.4W; AL20,25..LHD..GEN 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1982 - 01.1988] AL2# 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-16770
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL20,25..GEN |
83247-16770 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-16790
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL20,25..GEN |
83247-16790 |
— | ||
|
83102
|
83102
83247-16790
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL20,25..GEN W/CLOCK |
83247-16790 |
— | ||
|
83110
|
83110
83110-16420 Speedometer Assy[05.1982 - 03.1983] AL20,25..GEN MILE & KM |
83110-16420 |
US $317.41 |
||
| replacement | |||||
|
83110
|
83110
83110-16421
Speedometer Assy
[05.1982 - 03.1983] AL20,25..GEN MILE & KM |
83110-16421 |
— | ||
|
83110
|
83110
83110-16440 Speedometer Assy[05.1982 - 09.1983] AL20,25..GEN |
83110-16440 |
US $317.41 |
||
| replacement | |||||
|
83110
|
83110
83110-16441 Speedometer Assy[05.1982 - 09.1983] AL20,25..GEN |
83110-16441 |
US $317.41 |
||
|
83110
|
83110
83110-16441 Speedometer Assy[09.1983 - 08.1984] AL20,25..GEN |
83110-16441 |
US $317.41 |
||
|
83110
|
83110
83110-16450 Speedometer Assy[03.1983 - 09.1983] AL20,25..GEN MILE & KM |
83110-16450 |
US $318.86 |
||
| replacement | |||||
|
83110
|
83110
83110-16451
Speedometer Assy
[03.1983 - 09.1983] AL20,25..GEN MILE & KM |
83110-16451 |
— | ||
|
83110
|
83110
83110-16451
Speedometer Assy
[09.1983 - 08.1984] AL20,25..GEN MILE & KM |
83110-16451 |
— | ||
|
83128
|
83128
83128-16110
Knob, Trip Counter
[05.1982 - 01.1988] AL20,25..LHD..GEN; AL25..SR5;AL20,25..RHD..(EUR,GEN) |
83128-16110 |
— | ||
|
83132
|
83132
83132-16550
Case, Combination Meter
[05.1982 - 09.1983] AL20,25..GEN |
83132-16550 |
— | ||
|
83132
|
83132
83132-16690
Case, Combination Meter
[09.1983 - 08.1984] AL20,25..GEN |
83132-16690 |
— | ||
|
83134
|
83134
83133-16510
Cover, Combination Meter, No.1
[05.1982 - 08.1984] AL20,25..GEN W/CLOCK; AL20,25..RHD..EUG W/CLOCK |
83133-16510 |
— | ||
|
83134
|
83134
83133-16530
Cover, Combination Meter, No.1
[05.1982 - 08.1984] AL20,25..GEN; AL20,25..RHD..EUG |
83133-16530 |
— | ||
|
83310
|
83310
83243-16390 Gage Assy, Fuel Receiver[05.1982 - 01.1988] AL20,25..DLX..(ARL,GEN) |
83243-16390 |
US $74.26 |
||
|
83909
|
83909
83909-14012
Knob, Clock
[05.1982 - 01.1988] AL2#..DLX,GL,STD ANALOGUE |
83909-14012 |
— | ||
|
83910
|
83910
83910-16060 Clock Assy[05.1982 - 01.1988] AL2#..DLX,GL,STD ANALOGUE |
83910-16060 |
US $310.13 |
||
|
83919
|
83919
83919-14012
Screw, Thermometer
[05.1982 - 01.1988] AL2#..DLX,GL,STD ANALOGUE |
83919-14012 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
