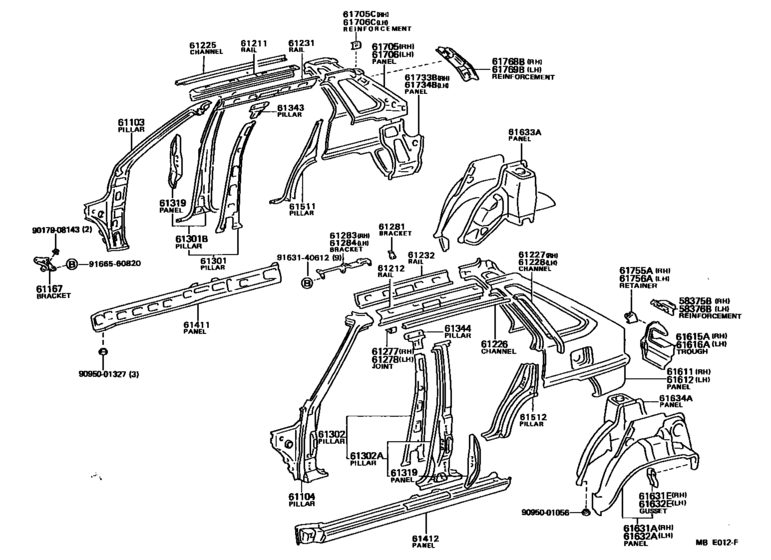

Side Member ([08.1982 - 08.1986] (8208-8608)5DS) Diagram Toyota TERCEL
- Year
- 1982 - 1986
- Sales region
- U.S.A.
- Frame
- AL21
- grade
- DLX
- body
- SED
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 08.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58375B
|
58375B
58375-16010 Reinforcement, Body Lower Back Panel, Rh[08.1982 - 08.1986] AL21..SED |
58375-16010 |
US $27.96 |
||
|
58376B
|
58376B
58376-16010 Reinforcement, Body Lower Back Panel, Lh[08.1982 - 08.1986] AL21..SED |
58376-16010 |
US $27.96 |
||
|
61103
|
61103
61021-16050 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [08.1982 - 08.1984] AL21..SED; AL2#..WG W/O SUN ROOF |
61021-16050 |
US $647.92 |
||
|
61103
|
61103
61021-16160 Pillar Sub-Assy, Front Body, Rh[08.1984 - 08.1986] AL21..SED |
61021-16160 |
US $499.41 |
||
| replacement | |||||
|
61103
|
61103
61021-16050 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [08.1984 - 08.1986] AL21..SED |
61021-16050 |
US $647.92 |
||
|
61104
|
61104
61022-16070 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1982 - 08.1984] AL21..SED; AL2#..WG W/O SUN ROOF |
61022-16070 |
US $595.50 |
||
| replacement | |||||
|
61104
|
61104
61022-16190 Pillar Sub-Assy, Front Body, Lh[08.1982 - 08.1984] AL21..SED; AL2#..WG W/O SUN ROOF |
61022-16190 |
US $502.32 |
||
|
61104
|
61104
61022-16190 Pillar Sub-Assy, Front Body, Lh[08.1984 - 08.1986] AL21..SED |
61022-16190 |
US $502.32 |
||
|
61167
|
61167
61165-16020
Bracket, Instrument Panel To Cowl Side, Rh
[08.1982 - 01.1988] AL2# |
61165-16020 |
— | ||
|
61211
|
61211
61211-16050
Rail, Roof Side, Outer Rh
[08.1982 - 08.1986] AL21..5DS |
61211-16050 |
— | ||
|
61212
|
61212
61212-16050
Rail, Roof Side, Outer Lh
[08.1982 - 08.1986] AL21..5DS |
61212-16050 |
— | ||
|
61225
|
61225
61265-16010 Channel, Roof Drip, Center Rh[08.1982 - 08.1986] AL21..5DS |
61265-16010 |
US $57.22 |
||
|
61226
|
61226
61266-16010
Channel, Roof Drip, Center Lh
[08.1982 - 08.1986] AL21..5DS |
61266-16010 |
— | ||
|
61227
|
61227
61267-16040
Channel, Roof Drip Side, Rear Rh
[08.1982 - 08.1986] AL21..5DS |
61267-16040 |
— | ||
|
61228
|
61228
61268-16040
Channel, Roof Drip Side, Rear Lh
[08.1982 - 08.1986] AL21..5DS |
61268-16040 |
— | ||
|
61231
|
61231
61231-16070
Rail, Roof Side, Inner Rh
[08.1982 - 08.1986] AL21..5DS |
61231-16070 |
— | ||
|
61232
|
61232
61232-16070
Rail, Roof Side, Inner Lh
[08.1982 - 08.1986] AL21..5DS |
61232-16070 |
— | ||
|
61281
|
61281
61281-16010
Bracket, Sliding Roof Housing Mounting, No.1
[08.1982 - 08.1986] AL21..SED..(DLX,SR5)..3AC |
61281-16010 |
— | ||
|
61283
|
61283
61283-16010
Bracket, Sliding Roof Housing Mounting, No.3 Rh
[08.1982 - 08.1986] AL21..SED..(DLX,SR5)..3AC |
61283-16010 |
— | ||
|
61284
|
61284
61284-16010
Bracket, Sliding Roof Housing Mounting, No.3 Lh
[08.1982 - 08.1986] AL21..SED..(DLX,SR5)..3AC |
61284-16010 |
— | ||
|
61301
|
61301
61301-16030 Pillar Sub-Assy, Center Body, RhCENTER BODY, RH [08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61301-16030 |
US $477.57 |
||
|
61301B
|
61301B
61301-16902
Pillar, Center Body, Outer Rh
[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61301-16902 |
— | ||
|
61302
|
61302
61302-16040 Pillar Sub-Assy, Center Body, LhCENTER BODY, LH [08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61302-16040 |
US $374.19 |
||
|
61302A
|
61302A
61302-16902 Pillar, Center Body, Outer LhCENTER BODY, OUTER LH [08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61302-16902 |
US $366.91 |
||
|
61319
|
61319
61318-16020 Panel, Center Body Pillar Finish[08.1982 - 01.1988] AL2#..WG;AL21..5DS RH |
61318-16020 |
US $11.36 |
||
|
61319
|
61319
61319-16020 Panel, Center Body Pillar Finish[08.1982 - 01.1988] AL2#..WG;AL21..5DS LH |
61319-16020 |
US $11.36 |
||
|
61343
|
61343
61341-16020 Pillar, Center Body, Inner Upper Rh[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61341-16020 |
US $27.66 |
||
|
61344
|
61344
61342-16020 Pillar, Center Body, Inner Upper Lh[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61342-16020 |
US $27.66 |
||
|
61411
|
61411
61401-16100
Panel, Rocker, Outer Rh
[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61401-16100 |
— | ||
|
61412
|
61412
61402-16100
Panel, Rocker, Outer Lh
[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61402-16100 |
— | ||
|
61511
|
61511
61511-16900 Pillar, Quarter Lock, Rh[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61511-16900 |
US $115.02 |
||
|
61512
|
61512
61512-16900 Pillar, Quarter Lock, Lh[08.1982 - 01.1988] AL2#..WG;AL21..5DS |
61512-16900 |
US $115.02 |
||
|
61611
|
61611
61601-16901 Panel, Quarter, Rh[08.1982 - 05.1984] AL21..5DS |
61601-16901 |
US $403.31 |
||
| replacement | |||||
|
61611
|
61611
61601-16910 Panel, Quarter, Rh[08.1982 - 05.1984] AL21..5DS |
61601-16910 |
US $403.31 |
||
|
61611
|
61611
61601-16910 Panel, Quarter, Rh[05.1984 - 08.1986] AL21..5DS |
61601-16910 |
US $403.31 |
||
|
61612
|
61612
61602-16902 Panel, Quarter, Lh[08.1982 - 05.1984] AL21..5DS |
61602-16902 |
US $457.18 |
||
| replacement | |||||
|
61612
|
61612
61602-16916 Panel, Quarter, Lh[08.1982 - 05.1984] AL21..5DS |
61602-16916 |
US $457.18 |
||
|
61612
|
61612
61602-16916 Panel, Quarter, Lh[05.1984 - 08.1986] AL21..5DS |
61602-16916 |
US $457.18 |
||
|
61615A
|
61615A
61621-16030 Trough, Back Door Opening, Rh[08.1982 - 08.1986] AL21..SED |
61621-16030 |
US $77.17 |
||
|
61616A
|
61616A
61622-16030 Trough, Back Door Opening, Lh[08.1982 - 08.1986] AL21..SED |
61622-16030 |
US $77.17 |
||
|
61631A
|
61631A
61605-16140 Panel, Quarter Wheel House, Outer RhQUARTER WHEEL HOUSE, OUTER RH [08.1982 - 08.1986] AL21..5DS |
61605-16140 |
US $122.30 |
||
|
61631E
|
61631E
61645-16010 Gusset, Quarter Wheel House, Rear Rh[08.1982 - 08.1986] AL21..SED |
61645-16010 |
US $9.17 |
||
|
61632A
|
61632A
61606-16160
Panel, Quarter Wheel House, Outer Lh
[08.1982 - 08.1986] AL21..5DS |
61606-16160 |
— | ||
|
61632E
|
61632E
61646-16020 Gusset, Quarter Wheel House, Rear Lh[08.1982 - 08.1987] AL21..SED |
61646-16020 |
US $9.17 |
||
|
61633A
|
61633A
61607-16110 Panel, Quarter Wheel House, Inner Rh[08.1982 - 08.1987] AL21 |
61607-16110 |
US $196.56 |
||
|
61634A
|
61634A
61608-16140 Panel, Quarter Wheel House, Inner Lh[08.1982 - 08.1987] AL21 |
61608-16140 |
US $196.56 |
||
|
61705
|
61705
61705-16908
Panel Sub-Assy, Roof Side, Inner Rh
[08.1982 - 08.1986] AL21..5DS |
61705-16908 |
— | ||
|
61705C
|
61705C
61665-14010 Reinforcement, Seat Belt Anchorage, Rear RhSAFETY BELT ANCHORAGE, REAR [08.1982 - 12.1985] AL21..SED |
61665-14010 |
US $8.74 |
||
|
61706
|
61706
61706-16908
Panel Sub-Assy, Roof Side, Inner Lh
[08.1982 - 08.1986] AL21..5DS |
61706-16908 |
— | ||
|
61706C
|
61706C
61665-14010 Reinforcement, Seat Belt Anchorage, Rear RhSAFETY BELT ANCHORAGE, REAR [08.1982 - 12.1985] AL21..SED |
61665-14010 |
US $8.74 |
||
|
61733B
|
61733B
61735-16030 Panel, Roof Side, Inner Rear Rh[08.1982 - 08.1986] AL21..SED |
61735-16030 |
US $41.20 |
||
|
61734B
|
61734B
61736-16030 Panel, Roof Side, Inner Rear Lh[08.1982 - 08.1986] AL21..SED |
61736-16030 |
US $41.20 |
||
|
61755A
|
61755A
61755-16020 Retainer, Deck Side Trim, Upper Rh[08.1982 - 08.1986] AL21..SED |
61755-16020 |
US $13.83 |
||
|
61756A
|
61756A
61755-16020 Retainer, Deck Side Trim, Upper Rh[08.1982 - 08.1986] AL21..SED |
61755-16020 |
US $13.83 |
||
|
61768B
|
61768B
61768-16020
Reinforce, Belt Anchor To Roof Side, Inner Rear Rh
[08.1982 - 08.1986] AL21..5DS |
61768-16020 |
— | ||
|
61769B
|
61769B
61769-16020
Reinforce, Belt Anchor To Roof Side, Inner Rear Lh
[08.1982 - 08.1986] AL21..5DS |
61769-16020 |
— | ||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
|
9166560820
|
9166560820
91665-60820
New Genuine Part
|
91665-60820 |
— | ||
| replacement | |||||
|
9166560820
|
9166560820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
