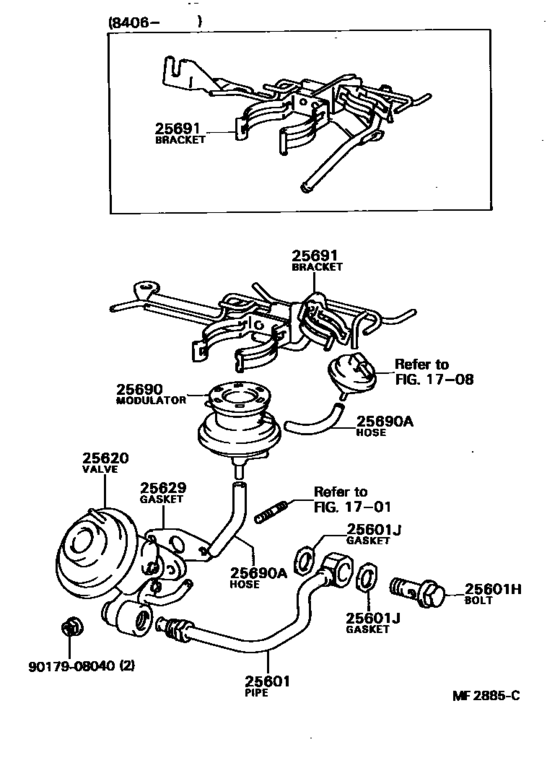

Exhaust Gas Recirculation System ([09.1982 - ] (8209- )3AC) Diagram Toyota TERCEL
- Year
- 1982 - 1984
- Sales region
- Europe
- Frame
- AL21
- grade
- DLX
- body
- SED
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- From
- 09.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-15020
Pipe Sub-Assy, Egr, No.1
[09.1982 - 01.1988] 3AC..AL21,25 |
25601-15020 |
— | ||
|
25601H
|
25601H
90401-20003
Bolt, Union(For Egr Pipe,no.1)
[09.1982 - 01.1988] 3AC..AL21,25 |
90401-20003 |
— | ||
|
25601J
|
25601J
90430-20005
Gasket(For Egr Pipe, No.1)
[09.1982 - 01.1988] 3AC..AL21,25 |
90430-20005 |
— | ||
|
25620
|
25620
25620-15200 Valve Assy, EgrEGR [09.1982 - 08.1984] 3AC..AL21,25..MTM |
25620-15200 |
US $264.99 |
||
|
25629
|
25629
25629-15011 Gasket, Egr Valve Adapter[09.1982 - 01.1988] 3AC..AL21,25 |
25629-15011 |
US $2.77 |
||
|
25690
|
25690
25870-15120 Modulator Assy, Egr VacuumEGR VACUUM [09.1982 - 08.1984] 3AC..AL21,25..MTM |
25870-15120 |
US $103.38 |
||
|
25690A
|
25690A
90445-11041
Hose(For Egr Vacuum Modulator)
[09.1982 - 01.1988] 3AC..AL21,25 |
90445-11041 |
— | ||
|
25691
|
25691
25691-15120 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [09.1982 - 05.1986] 3AC..AL21,25..SDZ |
25691-15120 |
US $74.26 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
