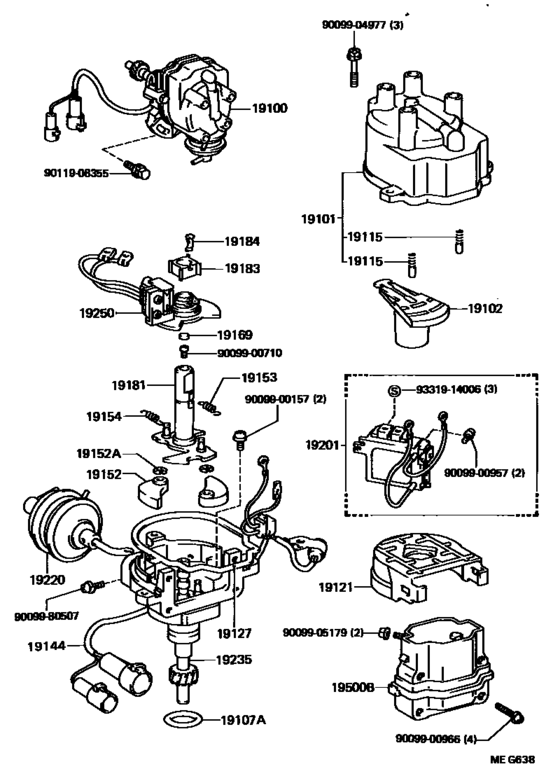

Distributor ([11.1985 - ] (8511- )3AC..ARL) Diagram Toyota TERCEL
- Year
- 1982 - 1988
- Sales region
- General
- Frame
- AL25
- grade
- DLX
- body
- WG
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 01.1988
- Gear Shift Type
- 6F
- Vehicle Model
- TERCEL
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19020-15110 Distributor Assy[11.1985 - 01.1988] 3AC..AL25..ARL |
19020-15110 |
US $1,572.48 |
||
|
19100
|
19100
19100-15120 Distributor Assy[08.1983 - 11.1985] 3AC..AL25..ARL |
19100-15120 |
US $396.03 |
||
|
19101
|
19101
19101-11010 Cap Sub-Assy, Distributor[11.1985 - 01.1988] 3AC..AL25..ARL |
19101-11010 |
US $38.15 |
||
|
19101
|
19101
19101-15010
Cap Sub-Assy, Distributor
[05.1982 - 11.1985] 2A,3A#..AL2# |
19101-15010 |
— | ||
|
19102
|
19102
19102-11010 Rotor Sub-Assy, Distributor[11.1985 - 01.1988] 3AC..AL25..ARL |
19102-11010 |
from US $11.20 |
||
|
19102
|
19102
19102-33012 Rotor Sub-Assy, Distributor[05.1982 - 05.1985] 2A,3A#..AL20,25..ARL,GEN |
19102-33012 |
from US $8.31 |
||
|
19107A
|
19107A
96710-04030
Ring, O, Distributor Housing
[05.1982 - 09.1984] 2A,3A#..AL2# |
96710-04030 |
— | ||
| replacement | |||||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[05.1982 - 09.1984] 2A,3A#..AL2# |
96711-35030 |
from US $4.48 |
||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[09.1984 - 01.1988] 3A#..AL25 |
96711-35030 |
from US $4.48 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[05.1982 - 11.1985] 2A,3A#..AL2# |
19115-50010 |
— | ||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[05.1987 - 01.1988] 3AC..AL25..ARL; 3AC..AL25..EUR |
19115-63010 |
from US $1.40 |
||
|
19115
|
19115
19115-71010
Piece, Distributor Cap, Center
[11.1985 - 05.1987] 3AC..AL25..ARL |
19115-71010 |
— | ||
| replacement | |||||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[11.1985 - 05.1987] 3AC..AL25..ARL |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11010
Cover, Dust Proof
[11.1985 - 03.1986] 3AC..AL25..ARL |
19121-11010 |
— | ||
| replacement | |||||
|
19121
|
19121
19121-11080 Cover, Dust Proof[11.1985 - 03.1986] 3AC..AL25..ARL |
19121-11080 |
from US $4.02 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[03.1986 - 01.1988] 3AC..AL25..ARL |
19121-11080 |
from US $4.02 |
||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[05.1982 - 11.1985] 2A,3A#..AL2# |
19121-38030 |
— | ||
|
19127
|
19127
19127-11010
Packing, Dust Proof
[11.1985 - 01.1988] 3AC..AL25..ARL |
19127-11010 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[05.1982 - 11.1985] 2A,3A#..AL2# |
19127-15010 |
— | ||
|
19144
|
19144
19144-15070
Lead, Distributor Breaker
[11.1985 - 01.1988] 3AC..AL25..ARL |
19144-15070 |
— | ||
| replacement | |||||
|
19144
|
19144
19144-16080
Lead, Distributor Breaker
[11.1985 - 01.1988] 3AC..AL25..ARL |
19144-16080 |
— | ||
|
19152
|
19152
19152-15160 Weight, Governor[11.1985 - 05.1986] 3AC..AL25..ARL |
19152-15160 |
US $12.52 |
||
|
19152
|
19152
19152-44170
Weight, Governor
[05.1982 - 11.1985] 2A,3A#..AL2# |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[05.1982 - 11.1985] 2A,3A#..AL2# |
90099-07109 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[11.1985 - 05.1986] 3AC..AL25..ARL |
90099-07122 |
— | ||
|
19153
|
19153
19153-15210 Spring, Governor, A[11.1985 - 01.1988] 3AC..AL25..ARL |
19153-15210 |
US $5.39 |
||
|
19153
|
19153
19153-15240 Spring, Governor, AGOVERNOR, A [08.1983 - 11.1985] 3AC..AL25..ARL |
19153-15240 |
US $5.39 |
||
|
19154
|
19154
19154-15240 Spring, Governor, BGOVERNOR, B [08.1983 - 11.1985] 3AC..AL25..ARL |
19154-15240 |
US $5.39 |
||
|
19154
|
19154
19154-15290 Spring, Governor, BGOVERNOR, B [11.1985 - 01.1988] 3AC..AL25..ARL |
19154-15290 |
US $5.39 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[05.1982 - 02.1984] 2A,3A#..AL2# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[05.1982 - 02.1984] 2A,3A#..AL2# |
19169-63011 |
— | ||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[02.1984 - 01.1988] 2A,3A#..AL2# |
19169-63011 |
— | ||
|
19181
|
19181
19181-15120
Rotor, Distributor, Signal
[11.1985 - 01.1988] 3AC..AL25..ARL |
19181-15120 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-16250
Rotor, Distributor, Signal
[11.1985 - 01.1988] 3AC..AL25..ARL |
19181-16250 |
— | ||
|
19183
|
19183
19183-15010
Rotor, Signal
[11.1985 - 01.1988] 3AC..AL25..ARL |
19183-15010 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[11.1985 - 05.1986] 3AC..AL25..ARL |
19184-63010 |
— | ||
|
19201
|
19201
89620-10120 Igniter[11.1985 - 01.1988] 3AC..AL25..ARL |
89620-10120 |
US $342.45 |
||
|
19220
|
19220
19220-15240
Advancer Assy, Vacuum, Distributor
[08.1983 - 11.1985] 3AC..AL25..ARL |
19220-15240 |
— | ||
|
19220
|
19220
19220-15300 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [11.1985 - 01.1988] 3AC..AL25..ARL |
19220-15300 |
US $138.32 |
||
|
19235
|
19235
19235-14040 Housing, Distributor[11.1985 - 01.1988] 3AC..AL25..ARL |
19235-14040 |
US $190.74 |
||
|
19250
|
19250
19251-15091 Generator Assy, Signal[11.1985 - 05.1986] 3AC..AL25..ARL |
19251-15091 |
US $168.90 |
||
| replacement | |||||
|
19250
|
19250
19251-16100 Generator Assy, Signal[11.1985 - 05.1986] 3AC..AL25..ARL |
19251-16100 |
US $171.23 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[11.1985 - 01.1988] 3AC..AL25..ARL |
90919-02164 |
from US $121.10 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908355
|
9011908355
90119-08355 Bolt |
90119-08355 |
US $3.04 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
