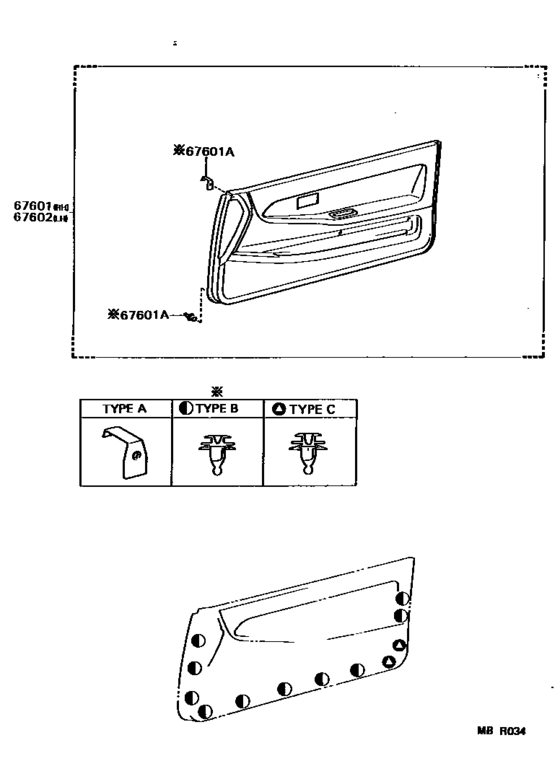

Front Door Panel & Glass ([08.1988 - ] (8808- )2DS,3DS) Diagram Toyota TERCEL
- Year
- 1988 - 1990
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- BASE
- body
- SED
- ENGINE
- 3E
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1988
- To
- 09.1990
- Gear Shift Type
- 4F
- No.of Doors
- 3DS
- Vehicle Model
- TERCEL EZ
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-16330-01 Board Sub-Assy, Front Door Trim, Rh[08.1988 - 09.1990] EL31..2DS,3DS NEW BLACK,TRIM2# |
67610-16330-01 |
US $221.31 |
||
|
67601A
|
67601A
67771-14030 Retainer (For Quarter Inside Trim Board)[08.1988 - 03.1989] EL31..2DS,3DS TYPE C |
67771-14030 |
from US $1.64 |
||
|
67601A
|
67601A
67771-16050 Retainer(For Front Door Trim Board)[08.1988 - 09.1990] EL31..2DS,3DS TYPE A |
67771-16050 |
US $3.20 |
||
|
67601A
|
67601A
67771-32010
Retainer (For Quarter Inside Trim Board)
[03.1989 - 08.1989] EL31..3DS TYPE B |
67771-32010 |
— | ||
| replacement | |||||
|
67601A
|
67601A
67771-14040 Retainer, Door Trim[03.1989 - 08.1989] EL31..3DS TYPE B |
67771-14040 |
US $2.88 |
||
|
67602
|
67602
67620-16240-01 Board Sub-Assy, Front Door Trim, Lh[08.1988 - 09.1990] EL31..2DS,3DS NEW BLACK,TRIM2# |
67620-16240-01 |
US $221.31 |
||
