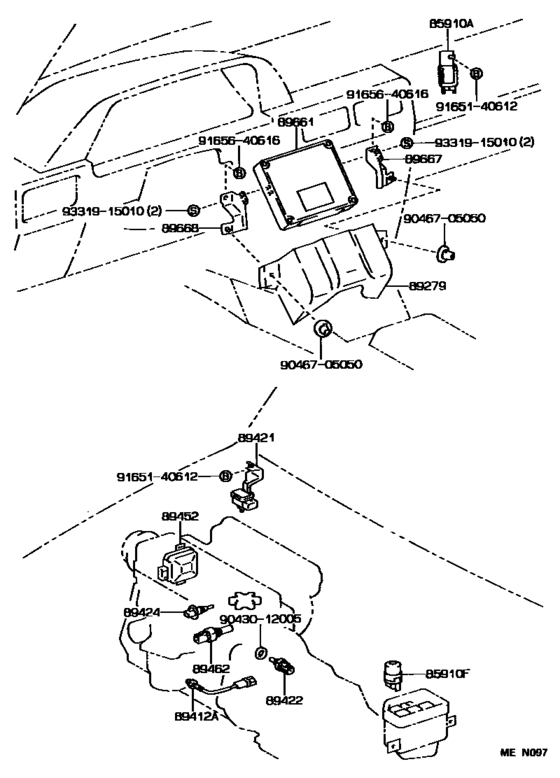

Electronic Fuel Injection System ([08.1989 - ] (8908- )EFI) Diagram Toyota TERCEL
- Year
- 1989 - 1990
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- DX
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1989
- To
- 09.1990
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-16020 Relay Assy, Circuit Opening (For Efi)CIRCUIT OPENING (FOR EFI) [08.1989 - 09.1990] EL31..EFI |
85910-16020 |
US $91.73 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[08.1989 - 09.1990] EL31..EFI |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [08.1989 - 09.1990] EL31..EFI |
909870200483 |
US $53.75 |
||
|
89279
|
89279
89279-16060 Cover, Engine Control ComputerENGINE CONTROL COMPUTER [08.1989 - 09.1990] EL31..EFI |
89279-16060 |
US $23.59 |
||
|
89412A
|
89412A
89412-12010 Sensor, E.g.r Gas TemperatureE.G.R GAS TEMPERATURE [08.1989 - 09.1990] EL31..EFI |
89412-12010 |
from US $151.20 |
||
|
89421
|
89421
89420-16010 Sensor Assy, Vacuum (For E.f.i.)VACUUM (FOR E.F.I.) [08.1989 - 09.1990] EL31..EFI |
89420-16010 |
US $126.67 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1989 - 09.1990] EL31..EFI |
89422-20010 |
from US $36.78 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1989 - 09.1990] EL31..EFI |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-12010 Sensor, Throttle Position (For E.f.i.)[08.1989 - 09.1990] EL31..EFI |
89452-12010 |
US $189.28 |
||
|
89462
|
89462
89462-20030 Switch, Start Injector Time[08.1989 - 09.1990] EL31..EFI |
89462-20030 |
US $131.72 |
||
|
89661
|
89661
89661-16030 Computer, Engine ControlENGINE CONTROL [08.1989 - 04.1990] EL31..EFI |
89661-16030 |
US $1,295.84 |
||
| replacement | |||||
|
89661
|
89661
89661-16031 Computer, Engine ControlENGINE CONTROL [08.1989 - 04.1990] EL31..EFI |
89661-16031 |
US $1,295.84 |
||
|
89661
|
89661
89661-16031 Computer, Engine ControlENGINE CONTROL [04.1990 - 09.1990] EL31..EFI |
89661-16031 |
US $1,295.84 |
||
|
89667
|
89667
89667-16010 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [08.1989 - 09.1990] EL31..EFI |
89667-16010 |
US $8.01 |
||
|
89668
|
89668
89668-16010 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1989 - 09.1990] EL31..EFI |
89668-16010 |
US $8.01 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9046705050
|
9046705050
90467-05050
Clip, Cowl Side Trim Board Set
|
90467-05050 |
— | ||
| replacement | |||||
|
9046705050
|
9046705050
90467-05050-22 Clip, Cowl Side Trim Board Set |
90467-05050-22 |
US $1.44 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
