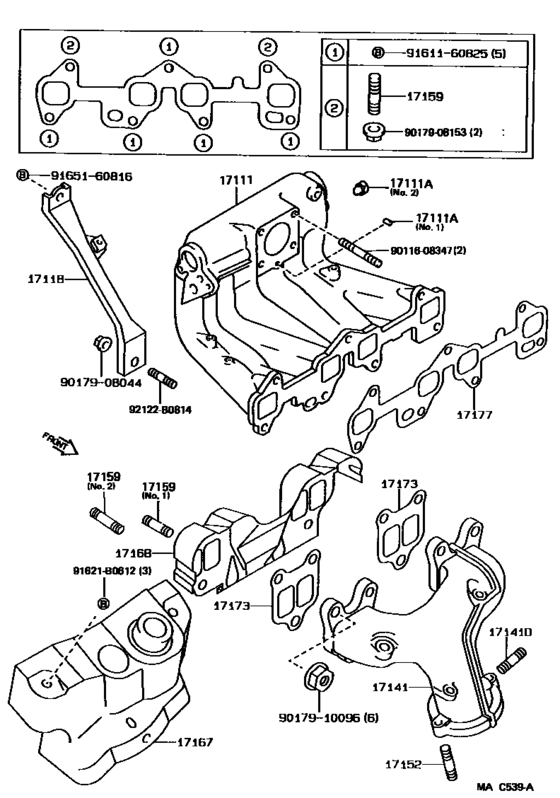

Manifold ([08.1989 - ] (8908- )3EE) Diagram Toyota TERCEL
- Year
- 1989 - 1990
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- DX
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1989
- To
- 09.1990
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-11220 Manifold, IntakeINTAKE [08.1989 - 09.1990] 3EE..EL31 |
17101-11220 |
US $302.85 |
||
|
17111A
|
17111A
90334-06005 Plug, Straight (For Overdrive Case)[08.1989 - 09.1990] 3EE..EL31 NO.1 |
90334-06005 |
US $1.89 |
||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[08.1989 - 09.1990] 3EE..EL31 NO.2 |
90345-51025 |
US $3.36 |
||
|
17118
|
17118
17118-11080 Stay, Manifold[08.1989 - 09.1990] 3EE..EL31 |
17118-11080 |
US $34.36 |
||
|
17141
|
17141
17141-11080 Manifold, ExhaustEXHAUST [08.1988 - 09.1990] 3E#..EL31 |
17141-11080 |
US $340.70 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[08.1988 - 09.1990] 3E#..EL31 |
90116-08128 |
US $4.16 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1988 - 09.1990] 3E#..EL31 |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
90116-10131
Bolt, Stud(For Manifold To Cylinder Head)
[08.1988 - 09.1990] 3E#..EL31 EXHAUST MANIFOLD,NO.1 |
90116-10131 |
— | ||
|
17159
|
17159
90116-10132
Bolt, Stud(For Manifold To Cylinder Head)
[08.1988 - 09.1990] 3E#..EL31 EXHAUST MANIFOLD,NO.2 |
90116-10132 |
— | ||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[08.1988 - 09.1990] 3E#..EL31 INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17167-11200 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [08.1989 - 09.1990] 3EE..EL31 |
17167-11200 |
US $64.36 |
||
| replacement | |||||
|
17167
|
17167
17167-11201 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [08.1989 - 09.1990] 3EE..EL31 |
17167-11201 |
US $64.36 |
||
|
17168
|
17168
17168-11031 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 09.1990] 3E#..EL31 |
17168-11031 |
US $61.88 |
||
|
17173
|
17173
17173-11020 Gasket, Exhaust Manifold To Head[08.1988 - 09.1990] 3E#..EL31 |
17173-11020 |
US $9.17 |
||
| replacement | |||||
|
17173
|
17173
17173-11021 Gasket, Exhaust Manifold To Head[08.1988 - 09.1990] 3E#..EL31 |
17173-11021 |
from US $8.95 |
||
|
17177
|
17177
17177-11010 Gasket, Intake Manifold To Head, No.1[08.1988 - 07.1990] 3E#..EL31 |
17177-11010 |
US $11.36 |
||
| replacement | |||||
|
17177
|
17177
17177-11040 Gasket, Intake Manifold To Head, No.1[08.1988 - 07.1990] 3E#..EL31 |
17177-11040 |
US $11.07 |
||
|
17177
|
17177
17177-11011 Gasket, Intake Manifold To Head, No.1[07.1990 - 09.1990] 3E#..EL31 |
17177-11011 |
US $11.36 |
||
| replacement | |||||
|
17177
|
17177
17177-11040 Gasket, Intake Manifold To Head, No.1[07.1990 - 09.1990] 3E#..EL31 |
17177-11040 |
US $11.07 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
92122B0814
|
92122B0814
92122-B0814 New Genuine Part |
92122-B0814 |
US $2.04 |
||
|
9011608347
|
9011608347
90116-08347 New Genuine Part |
90116-08347 |
US $1.31 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
