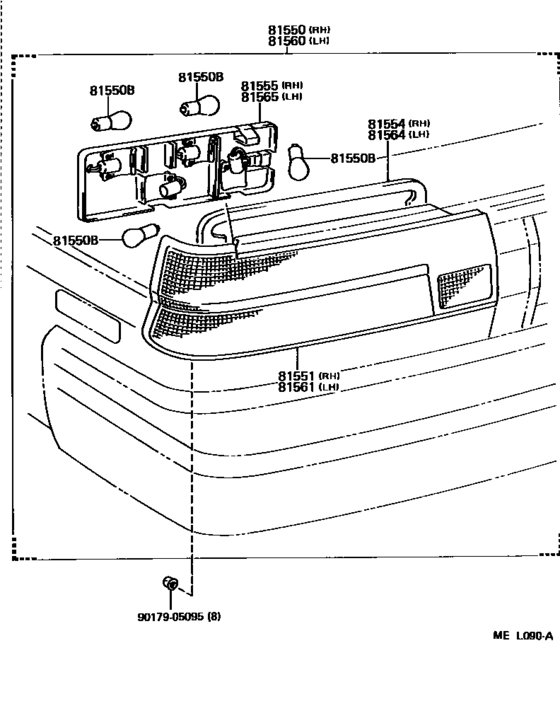

Rear Combination Lamp ([08.1988 - ] (8808- )2DS) Diagram Toyota TERCEL
- Year
- 1989 - 1990
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- DX
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1989
- To
- 09.1990
- Gear Shift Type
- 3FC
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16380 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1988 - 01.1990] EL31..2DS |
81550-16380 |
US $304.30 |
||
| replacement | |||||
|
81550
|
81550
81550-16381 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1988 - 01.1990] EL31..2DS |
81550-16381 |
US $304.30 |
||
|
81550
|
81550
81550-16381 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [01.1990 - 09.1990] EL31..2DS |
81550-16381 |
US $304.30 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1988 - 09.1990] EL31 12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1988 - 09.1990] EL31 12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-16380 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1988 - 09.1990] EL31..2DS |
81551-16380 |
US $230.05 |
||
|
81554
|
81554
81554-16381 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [01.1990 - 09.1990] EL31..2DS |
81554-16381 |
US $14.56 |
||
|
81555
|
81555
81555-16380 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1988 - 09.1990] EL31..2DS |
81555-16380 |
US $51.98 |
||
|
81560
|
81560
81560-16400 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1988 - 01.1990] EL31..2DS W(RR ROOM LAMP) |
81560-16400 |
US $304.30 |
||
| replacement | |||||
|
81560
|
81560
81560-16401 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1988 - 01.1990] EL31..2DS W(RR ROOM LAMP) |
81560-16401 |
US $304.30 |
||
|
81560
|
81560
81560-16401 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [01.1990 - 09.1990] EL31..2DS W(RR ROOM LAMP) |
81560-16401 |
US $304.30 |
||
|
81560
|
81560
81560-16440
Lamp Assy, Rear Combination, Lh
[08.1988 - 01.1990] EL31..2DS |
81560-16440 |
— | ||
| replacement | |||||
|
81560
|
81560
81560-16441
Lamp Assy, Rear Combination, Lh
[08.1988 - 01.1990] EL31..2DS |
81560-16441 |
— | ||
|
81560
|
81560
81560-16441
Lamp Assy, Rear Combination, Lh
[01.1990 - 09.1990] EL31..2DS |
81560-16441 |
— | ||
|
81561
|
81561
81561-16400 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1988 - 09.1990] EL31..2DS |
81561-16400 |
US $230.05 |
||
|
81564
|
81564
81554-16381 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [01.1990 - 09.1990] EL31..2DS |
81554-16381 |
US $14.56 |
||
|
81565
|
81565
81565-16400 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1988 - 09.1990] EL31..2DS W(RR ROOM LAMP) |
81565-16400 |
US $51.98 |
||
|
81565
|
81565
81565-16440 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1988 - 09.1990] EL31..2DS |
81565-16440 |
US $51.54 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
