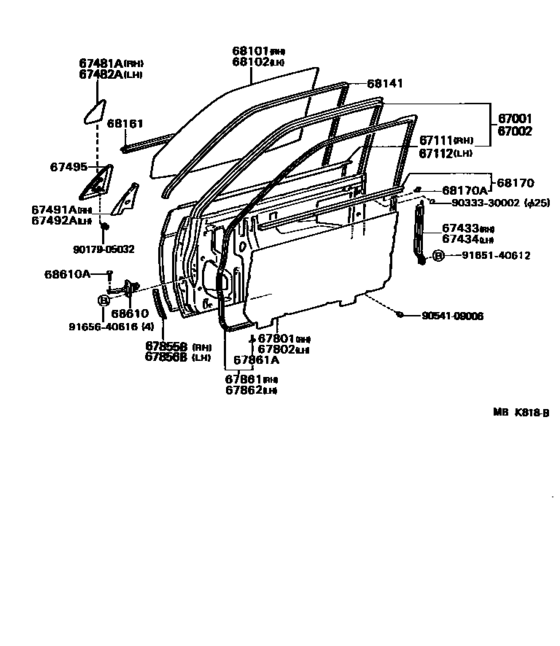

Front Door Panel & Glass ([08.1986 - ] (8608- )2DS,3DS) Diagram Toyota TERCEL
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- DX
- body
- SED
- ENGINE
- 3E
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-16310 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [01.1987 - 08.1988] EL31..2DS |
67001-16310 |
US $841.57 |
||
|
67002
|
67002
67002-16270 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [01.1987 - 08.1988] EL31..2DS |
67002-16270 |
US $841.57 |
||
|
67111
|
67111
67111-16160 Panel, Front Door, Outer Rh[08.1986 - 08.1988] EL31..2DS,3DS |
67111-16160 |
US $353.81 |
||
|
67112
|
67112
67112-16140 Panel, Front Door, Outer Lh[08.1986 - 08.1988] EL31..2DS,3DS |
67112-16140 |
US $353.81 |
||
|
67433
|
67433
67403-16050 Frame, Front Door Window, Rear Lower RhFRONT DOOR WINDOW, REAR LOWER RH [08.1987 - 08.1988] EL31..2DS,3DS W/*TDS |
67403-16050 |
US $30.43 |
||
|
67433
|
67433
67403-16060 Frame, Front Door Window, Rear Lower RhFRONT DOOR WINDOW, REAR LOWER RH [08.1986 - 08.1988] EL31..2DS,3DS |
67403-16060 |
US $29.41 |
||
|
67434
|
67434
67404-16050 Frame, Front Door Window, Rear Lower LhFRONT DOOR WINDOW, REAR LOWER LH [08.1987 - 08.1988] EL31..2DS,3DS W/*TDS |
67404-16050 |
US $24.61 |
||
|
67434
|
67434
67404-16060 Frame, Front Door Window, Rear Lower LhFRONT DOOR WINDOW, REAR LOWER LH [08.1986 - 08.1988] EL31..2DS,3DS |
67404-16060 |
US $29.41 |
||
|
67481A
|
67481A
67481-16170 Seal, Front Door Front Lower Frame, RhFRONT DOOR FRONT LOWER FRAME, RH [12.1986 - 08.1988] EL31 |
67481-16170 |
US $4.37 |
||
|
67482A
|
67482A
67481-16170 Seal, Front Door Front Lower Frame, RhFRONT DOOR FRONT LOWER FRAME, RH [12.1986 - 08.1988] EL31..DX |
67481-16170 |
US $4.37 |
||
|
67491A
|
67491A
67491-16050 Garnish, Front Door Lower Frame Bracket, Rh[08.1986 - 08.1988] EL31..2DS,3DS W/O HOLE |
67491-16050 |
US $24.75 |
||
|
67491A
|
67491A
67491-16060 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [08.1986 - 08.1988] EL31..(2DS,3DS)..DX W/HOLE |
67491-16060 |
US $24.75 |
||
|
67492A
|
67492A
67492-16050 Garnish, Front Door Lower Frame Bracket, Lh[08.1986 - 08.1988] EL31..2DS,3DS W/O HOLE |
67492-16050 |
US $24.75 |
||
|
67492A
|
67492A
67492-16060 Garnish, Front Door Lower Frame Bracket, LhFRONT DOOR LOWER FRAME BRACKET, LH [08.1986 - 08.1988] EL31..2DS,3DS W/HOLE |
67492-16060 |
US $24.75 |
||
|
67495
|
67495
67495-16040 Cover, Front Door Front Lower Frame, Upper[08.1986 - 08.1988] EL31..2DS,3DS |
67495-16040 |
US $22.42 |
||
|
67801
|
67801
67831-16120 Cover Sub-Assy, Front Door Hole, No.1 RhFRONT DOOR SERVICE HOLE, RH [08.1986 - 08.1988] EL31..2DS,3DS |
67831-16120 |
US $11.65 |
||
|
67802
|
67802
67831-16120 Cover Sub-Assy, Front Door Hole, No.1 RhFRONT DOOR SERVICE HOLE, RH [08.1986 - 08.1988] EL31..2DS,3DS |
67831-16120 |
US $11.65 |
||
|
67855B
|
67855B
67855-16010
Protector, Front Door Panel, Rh
[01.1988 - 08.1988] EL31 |
67855-16010 |
— | ||
|
67856B
|
67856B
67856-16010
Protector, Front Door Panel, Lh
[01.1988 - 08.1988] EL31 |
67856-16010 |
— | ||
|
67861
|
67861
67861-16230 Weatherstrip, Front Door, RhFRONT DOOR, RH [01.1987 - 08.1988] EL31..2DS |
67861-16230 |
US $90.27 |
||
|
67861A
|
67861A
67868-30040 Retainer, Roof Side Rail, Rh[08.1986 - 08.1988] EL31..2DS,3DS |
67868-30040 |
US $1.76 |
||
|
67862
|
67862
67862-16230 Weatherstrip, Front Door, LhFRONT DOOR, LH [01.1987 - 08.1988] EL31..2DS |
67862-16230 |
US $90.27 |
||
|
68101
|
68101
68111-16200 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [01.1987 - 08.1988] EL31..2DS..DX *TT,T=3.5,*TT,T=3.5 |
68111-16200 |
US $260.62 |
||
|
68102
|
68102
68112-16200 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [01.1987 - 08.1988] EL31..2DS..DX *TT,T=3.5,*TT,T=3.5 |
68112-16200 |
US $260.62 |
||
|
68141
|
68141
68141-16170
Run, Front Door Glass
[01.1987 - 08.1988] EL31..2DS |
68141-16170 |
— | ||
|
68161
|
68161
68160-16070 Weatherstrip Assy, Front Door Glass, Outer Rh[08.1986 - 08.1988] EL31..2DS,3DS RH |
68160-16070 |
US $35.24 |
||
|
68161
|
68161
68210-16060 Weatherstrip, Front Door Glass, Outer[08.1986 - 08.1988] EL31..2DS,3DS LH |
68210-16060 |
US $35.24 |
||
|
68170
|
68170
68170-16080 Weatherstrip Assy, Front Door Glass, Inner[08.1986 - 08.1988] EL31..2DS,3DS |
68170-16080 |
US $60.72 |
||
|
68170A
|
68170A
68211-10030 Clip(For Front Door Glass Outer Weatherstrip)[08.1986 - 08.1988] EL31..2DS,3DS |
68211-10030 |
from US $2.57 |
||
|
68610
|
68610
68610-10020
Check Assy, Front Door
[08.1986 - 08.1988] EL31 |
68610-10020 |
— | ||
|
68610A
|
68610A
68617-90A00
Pin(For Front Door Check)
[08.1986 - 08.1988] EL31 |
68617-90A00 |
— | ||
| replacement | |||||
|
68610A
|
68610A
68617-90A01 Pin(For Front Door Check)[08.1986 - 08.1988] EL31 |
68617-90A01 |
US $4.80 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.80 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
