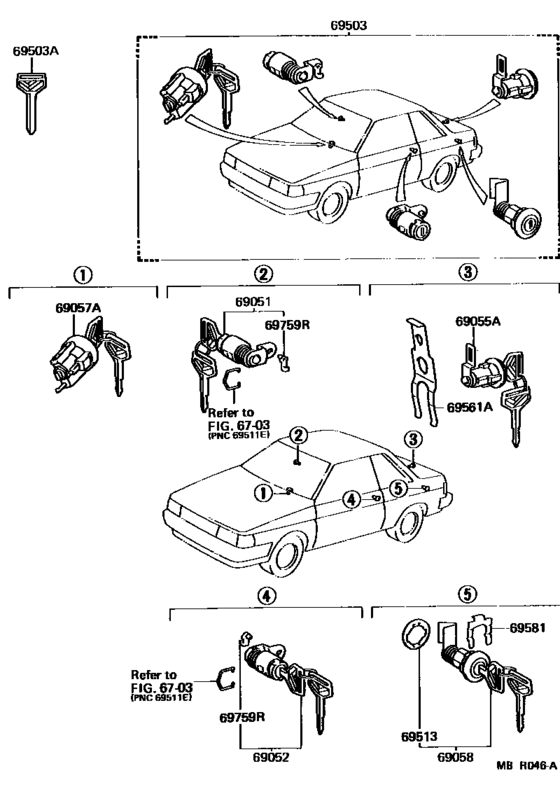

Lock Cylinder Set ([08.1988 - ] (8808- )2DS) Diagram Toyota TERCEL
- Year
- 1988 - 1990
- Sales region
- U.S.A.
- Frame
- EL31
- grade
- DX
- body
- SED
- ENGINE
- 3E
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1988
- To
- 09.1990
- Gear Shift Type
- 5F
- No.of Doors
- 2DS
- Vehicle Model
- TERCEL
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-16170 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [08.1988 - 09.1990] EL31..2DS |
69051-16170 |
US $54.16 |
||
|
69051
|
69051
69051-16180 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [08.1988 - 09.1990] EL31..2DS..USA..CBR W(ANTI-THEFT DEVICE) |
69051-16180 |
US $54.16 |
||
|
69052
|
69052
69052-16170 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [08.1988 - 09.1990] EL31..2DS |
69052-16170 |
US $54.16 |
||
|
69052
|
69052
69052-16180 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [08.1988 - 09.1990] EL31..2DS..USA..CBR W(ANTI-THEFT DEVICE) |
69052-16180 |
US $54.16 |
||
|
69055A
|
69055A
69055-16230 Cylinder & Key Set, Luggage Compartment LockLUGGAGE COMPARTMENT LOCK [08.1988 - 09.1990] EL31..2DS |
69055-16230 |
US $50.96 |
||
|
69057A
|
69057A
69057-16090 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [08.1988 - 09.1990] EL31..2DS |
69057-16090 |
US $75.71 |
||
| replacement | |||||
|
69057A
|
69057A
69057-32121
Cylinder & Key Set, Ignition Switch Lock
[08.1988 - 09.1990] EL31..2DS |
69057-32121 |
— | ||
|
69058
|
69058
69058-12110 Cylinder & Key Set, Fuel Filler LidFUEL FILLER LID [08.1988 - 09.1990] EL31..2DS |
69058-12110 |
US $49.94 |
||
|
69503
|
69503
69005-16590 Cylinder Set, LockLOCK [08.1988 - 09.1990] EL31..2DS W(BACK DOOR & TRUNK OPENER) |
69005-16590 |
US $218.40 |
||
|
69503
|
69503
69005-16600 Cylinder Set, LockLOCK [08.1988 - 09.1990] EL31..2DS |
69005-16600 |
US $253.34 |
||
|
69503
|
69503
69005-16610 Cylinder Set, LockLOCK [08.1988 - 09.1990] EL31..2DS W(BACK DOOR & TRUNK OPENER & SECURITY LOCK) |
69005-16610 |
US $218.40 |
||
|
69503
|
69503
69005-16620 Cylinder Set, LockLOCK [08.1988 - 09.1990] EL31..2DS..USA..CBR W(ANTI-THEFT DEVICE) |
69005-16620 |
US $310.13 |
||
|
69503
|
69503
69005-16630 Cylinder Set, LockLOCK [08.1988 - 09.1990] EL31..2DS..USA..CBR W(ANTI-THEFT DEVICE & BACK DOOR & TRUNK OPENER) |
69005-16630 |
US $270.82 |
||
|
69503A
|
69503A
90999-00085 Key, Blank[08.1988 - 09.1990] EL31..2DS MASTER KEY |
90999-00085 |
US $8.37 |
||
|
69503A
|
69503A
90999-00094
Key, Blank
[08.1988 - 09.1990] EL31..2DS..CND;EL31..2DS..EFI SUB KEY; EL31..2DS..USA..CBR SUB KEY,W(BACK DOOR OPENER) |
90999-00094 |
— | ||
|
69503A
|
69503A
90999-00106 Key, Blank[08.1988 - 09.1990] EL31..2DS MASTER KEY,W(*68) |
90999-00106 |
US $27.66 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00212 Key, Blank[08.1988 - 09.1990] EL31..2DS MASTER KEY,W(*68) |
90999-00212 |
from US $13.94 |
||
|
69513
|
69513
69513-32010 Pad, Lock Cylinder[08.1988 - 09.1990] EL31..2DS |
69513-32010 |
from US $1.92 |
||
|
69561A
|
69561A
69561-12170 Retainer, Luggage Compartment Lock Cylinder[08.1988 - 09.1990] EL31..2DS |
69561-12170 |
US $2.62 |
||
|
69581
|
69581
69511-32010 Retainer, Front Door Lock Cylinder[08.1988 - 09.1990] EL31 |
69511-32010 |
US $2.56 |
||
|
69759R
|
69759R
69759-20080 Snap, Door Lock Control Link[08.1988 - 09.1990] EL31 RH |
69759-20080 |
US $4.48 |
||
|
69759R
|
69759R
69759-20090 Snap(For Rear Door Lock)[08.1988 - 09.1990] EL31 LH |
69759-20090 |
US $4.48 |
||
