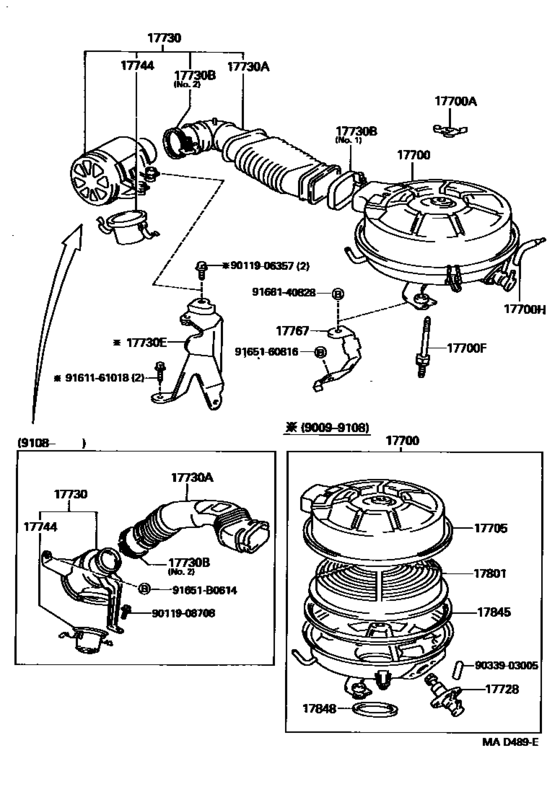

Air Cleaner ([09.1990 - ] W(PRE AIR CLEANER) (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11610 Cleaner Assy, AirAIR [08.1992 - 09.1994] 2E..EL40..GEN W(HOT AIR INTAKE) |
17700-11610 |
US $407.68 |
||
|
17700
|
17700
17700-11660 Cleaner Assy, AirAIR [09.1990 - 08.1992] 2E..EL40 |
17700-11660 |
US $385.84 |
||
|
17700
|
17700
17700-11680 Cleaner Assy, AirAIR [09.1990 - 08.1992] 2E..EL40 W(HOT AIR INTAKE) |
17700-11680 |
US $407.68 |
||
|
17700
|
17700
17700-11690 Cleaner Assy, AirAIR [09.1990 - 08.1991] 2E..EL40 W(PRE AIR CLEANER) |
17700-11690 |
US $353.81 |
||
|
17700
|
17700
17700-11720 Cleaner Assy, AirAIR [08.1991 - 08.1992] 2E..EL40 W(PRE AIR CLEANER) |
17700-11720 |
US $173.26 |
||
|
17700
|
17700
17700-11730 Cleaner Assy, AirAIR [08.1992 - 09.1994] 2E..EL40..GEN W(PRE AIR CLEANER) |
17700-11730 |
US $173.26 |
||
|
17700
|
17700
17700-11810
Cleaner Assy, Air
[08.1992 - 09.1994] 2E..EL40..GEN |
17700-11810 |
— | ||
|
17700A
|
17700A
90175-06009
Nut, Wing(For Air Cleaner)
[09.1990 - 09.1994] 2E..EL40 |
90175-06009 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[09.1990 - 09.1994] 2E..EL40 |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[09.1990 - 09.1994] 2E..EL40 |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-10060
Cap Sub-Assy, Air Cleaner
[09.1990 - 08.1992] 2E..EL40 W(HOT AIR INTAKE) |
17705-10060 |
— | ||
|
17705
|
17705
17705-10070
Cap Sub-Assy, Air Cleaner
[09.1990 - 08.1992] 2E..EL40 |
17705-10070 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-10060
Cap Sub-Assy, Air Cleaner
[09.1990 - 08.1992] 2E..EL40 |
17705-10060 |
— | ||
|
17705
|
17705
17705-10080 Cap Sub-Assy, Air CleanerAIR CLEANER [09.1990 - 08.1991] 2E..EL40 W(PRE AIR CLEANER) |
17705-10080 |
US $58.36 |
||
|
17705
|
17705
17705-11470
Cap Sub-Assy, Air Cleaner
[08.1992 - 09.1994] 2E..EL40..GEN W(HOT AIR INTAKE) |
17705-11470 |
— | ||
|
17728
|
17728
17728-11020
Valve, Thermostatic
[09.1990 - 08.1992] 2E..EL40 |
17728-11020 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[08.1992 - 09.1994] 2E..EL40 |
17728-11080 |
— | ||
|
17730
|
17730
17730-11030 Precleaner Assy, Air W/hose[09.1990 - 10.1990] 2E..EL40 |
17730-11030 |
US $227.14 |
||
| replacement | |||||
|
17730
|
17730
17730-11031 Precleaner Assy, Air W/hose[09.1990 - 10.1990] 2E..EL40 |
17730-11031 |
US $224.22 |
||
|
17730
|
17730
17730-11031 Precleaner Assy, Air W/hose[10.1990 - 08.1991] 2E..EL40 |
17730-11031 |
US $224.22 |
||
|
17730
|
17730
17730-11040 Precleaner Assy, Air W/hoseAIR W/HOSE [08.1991 - 09.1994] 2E..EL40 |
17730-11040 |
US $224.22 |
||
|
17730A
|
17730A
17881-11240
Hose, Precleaner
[09.1990 - 08.1991] 2E..EL40 |
17881-11240 |
— | ||
|
17730A
|
17730A
17881-11370
Hose, Precleaner
[08.1991 - 09.1994] 2E..EL40 |
17881-11370 |
— | ||
|
17730B
|
17730B
90460-01023 Clamp(For Air Cleaner Hose, No.2)NO.2) [09.1990 - 09.1994] 2E..EL40 NO.1 |
90460-01023 |
US $4.51 |
||
|
17730B
|
17730B
96111-10600 Clamp Or Clip, Hose(For Radiator Outlet No.1)[09.1990 - 09.1994] 2E..EL40 NO.2 |
96111-10600 |
US $2.08 |
||
|
17730E
|
17730E
17741-11010 Bracket, Precleaner, No.1PRECLEANER, NO.1 [09.1990 - 08.1991] 2E..EL40 |
17741-11010 |
US $60.72 |
||
|
17744
|
17744
17744-16010
Cup, Precleaner
[09.1990 - 08.1991] 2E..EL40 |
17744-16010 |
— | ||
|
17744
|
17744
17744-16020
Cup, Precleaner
[08.1991 - 09.1994] 2E..EL40 |
17744-16020 |
— | ||
|
17767
|
17767
17771-11020
Bracket, Air Cleaner Inlet Duct
[09.1990 - 09.1994] 2E..EL40 |
17771-11020 |
— | ||
|
17801
|
17801
17801-10030
Element Sub-Assy, Air Cleaner Filter
[09.1990 - 02.1992] 2E..EL40 |
17801-10030 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[09.1990 - 02.1992] 2E..EL40 |
17801-11100 |
from US $17.30 |
||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[02.1992 - 09.1994] 2E..EL40 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[09.1990 - 09.1994] 2E..EL40 |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[09.1990 - 09.1994] 2E..EL40 |
17848-10021 |
US $5.24 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011908708
|
9011908708
90119-08708
New Genuine Part
|
90119-08708 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9166140828
|
9166140828
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
