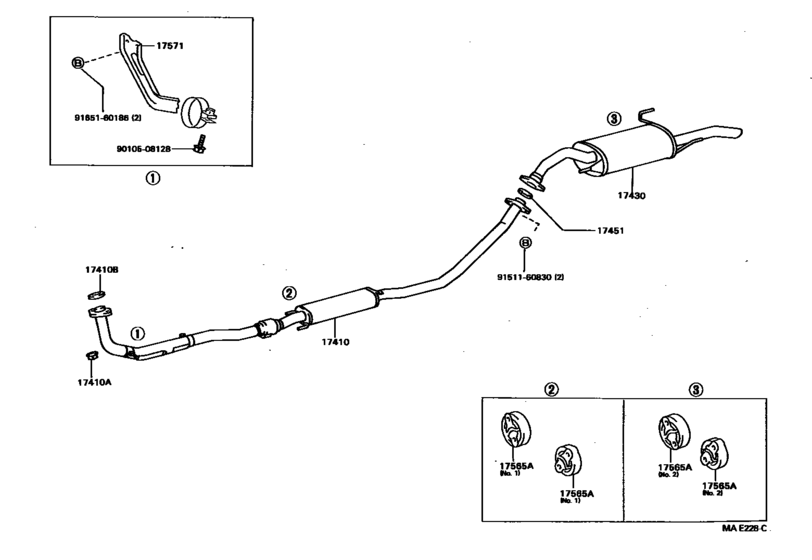

Exhaust Pipe ([09.1990 - ] (9009- )) Diagram Toyota TERCEL
- Year
- 1990 - 1994
- Sales region
- General
- Frame
- EL40
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 09.1990
- To
- 09.1994
- No.of Doors
- 4DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-11550 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [09.1990 - 09.1994] 2E..EL40 |
17410-11550 |
US $573.66 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[09.1990 - 09.1994] 2E..EL40 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[09.1990 - 09.1994] 2E..EL40 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[09.1990 - 09.1994] 2E..EL40 |
90917-06061 |
from US $5.17 |
||
|
17430
|
17430
17430-11580 Pipe Assy, Exhaust, Tail[09.1990 - 08.1993] 2E..EL40 |
17430-11580 |
US $288.29 |
||
| replacement | |||||
|
17430
|
17430
17430-11661 Pipe Assy, Exhaust, Tail[09.1990 - 08.1993] 2E..EL40 |
17430-11661 |
US $356.72 |
||
|
17430
|
17430
17430-11581 Pipe Assy, Exhaust, Tail[08.1993 - 09.1994] 2E..EL40 |
17430-11581 |
US $288.29 |
||
| replacement | |||||
|
17430
|
17430
17430-11661 Pipe Assy, Exhaust, Tail[08.1993 - 09.1994] 2E..EL40 |
17430-11661 |
US $356.72 |
||
|
17451
|
17451
90917-06060 Gasket, Exhaust Pipe, Center[09.1990 - 09.1994] 2E..EL40 |
90917-06060 |
from US $2.59 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[09.1990 - 09.1994] 2E..EL40 NO.1 |
17565-11160 |
from US $9.17 |
||
|
17565A
|
17565A
17565-74290 Support, Exhaust Pipe, No.2[09.1990 - 09.1994] 2E..EL40 NO.2 |
17565-74290 |
from US $7.22 |
||
|
17571
|
17571
17571-11020 Bracket, Exhaust Pipe Front (For Front)[09.1990 - 09.1994] 2E..EL40 |
17571-11020 |
US $15.87 |
||
|
9010508128
|
9010508128
90105-08128
Bolt (For Front Oil Pump Setting)
|
90105-08128 |
— | ||
| replacement | |||||
|
9010508128
|
9010508128
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $2.72 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.98 |
||
|
9165160186
|
9165160186
91651-60186
New Genuine Part
|
91651-60186 |
— | ||
